Antenna: Testing and Inspection

Inspection

Hands Free Mic
1. Disconnect the negative(-) battery terminal.

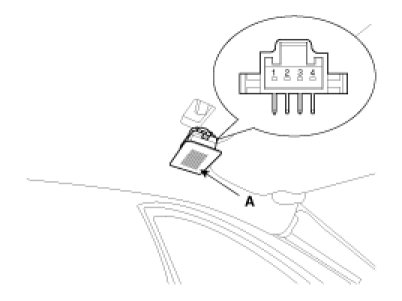

2. Remove the hands free mic (A) after loosening the connector from loop top.

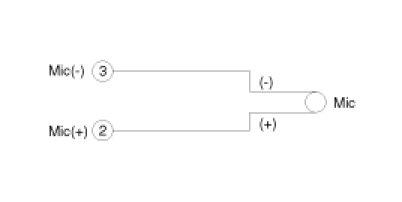

3. Check the continuity of Mic between terminals.
