Trunk / Liftgate: Service and Repair

Replacement

Trunk Lid Assembly Replacement
1. Detach the clips, then remove the trunk trim (A).

NOTE:
- When removing and installing the trunk lid, an assistant is necessary.
- Wear gloves to protect hands from injury.




2. Disconnect the connectors.

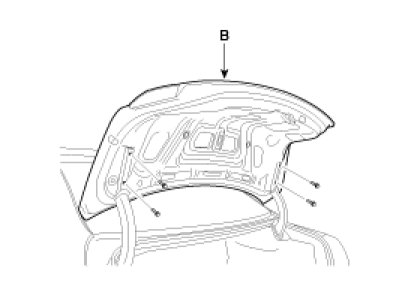

3. After loosening the mounting bolts, remove the trunk lid (B).




4. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.
