Seat Back: Service and Repair

Replacement

Seat Back Cover Replacement
1. Remove front seat assembly.
2. Remove the headrest.

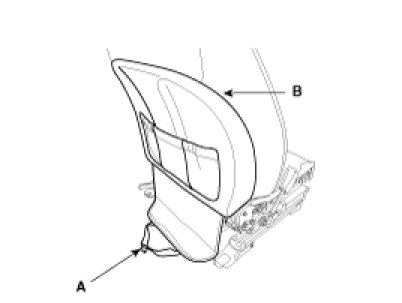

3. After disconnecting the scuff band (A), remove the seat back panel (B).

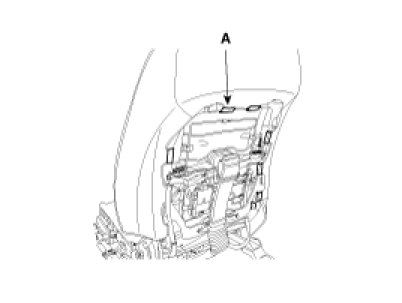

4. Disconnect the protector (A) from the back frame.




5. Disconnect the connector (A).




6. Pull out the headrest guides (A) while pinching the end of the guides, and remove them.




7. After removing the hog-ring clips on the front of seat cushion and remove the seat cushion cover (A).




8. Installation is the reverse of removal.

NOTE:
- Be sure to perform PODS re-zero with Hi-scan (PRO) after replacing parts (Passenger's)
