Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram

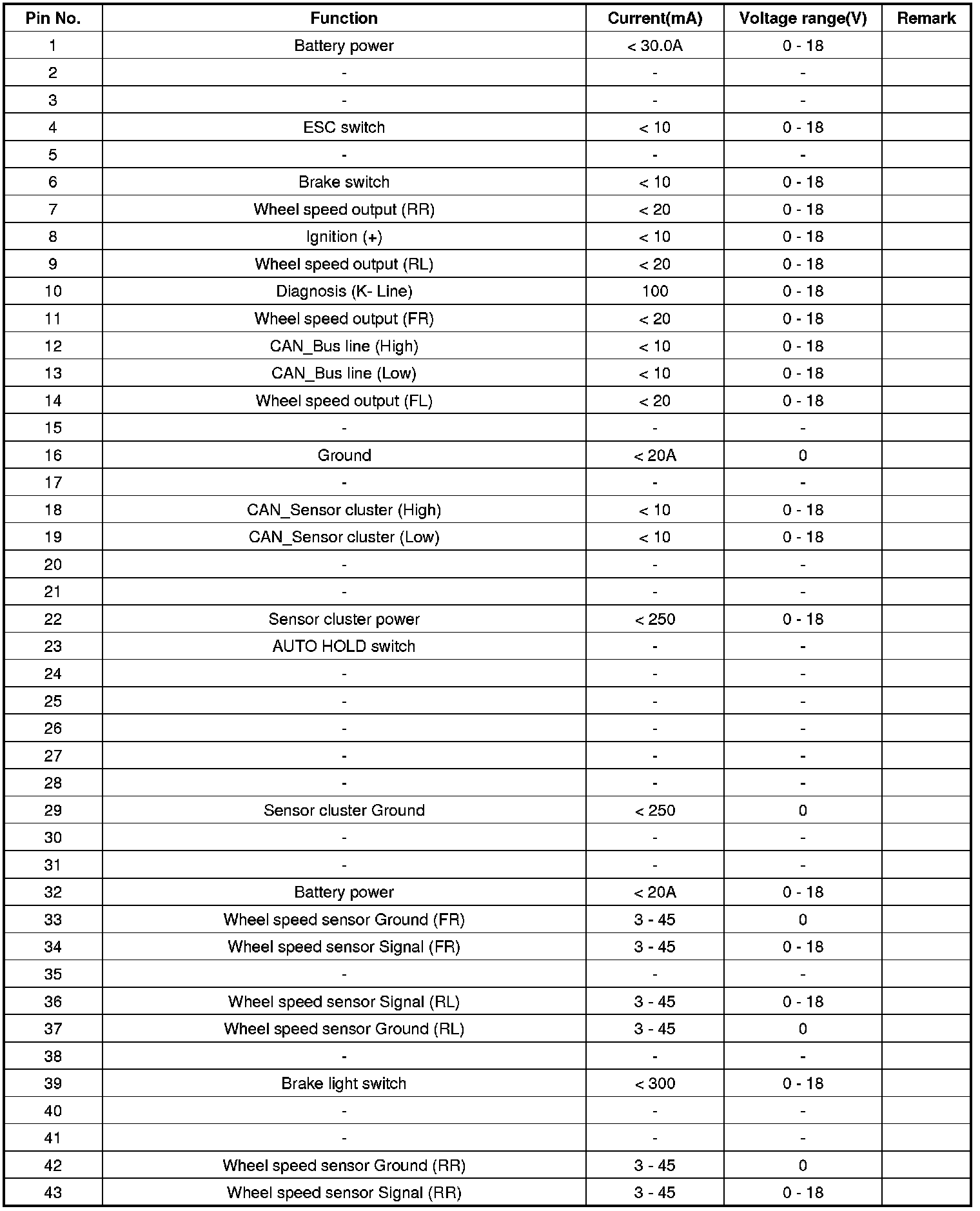

ESC Connector Input/Output
