Genesis Sedan V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Heater Control Unit
Heater Control Unit
Component

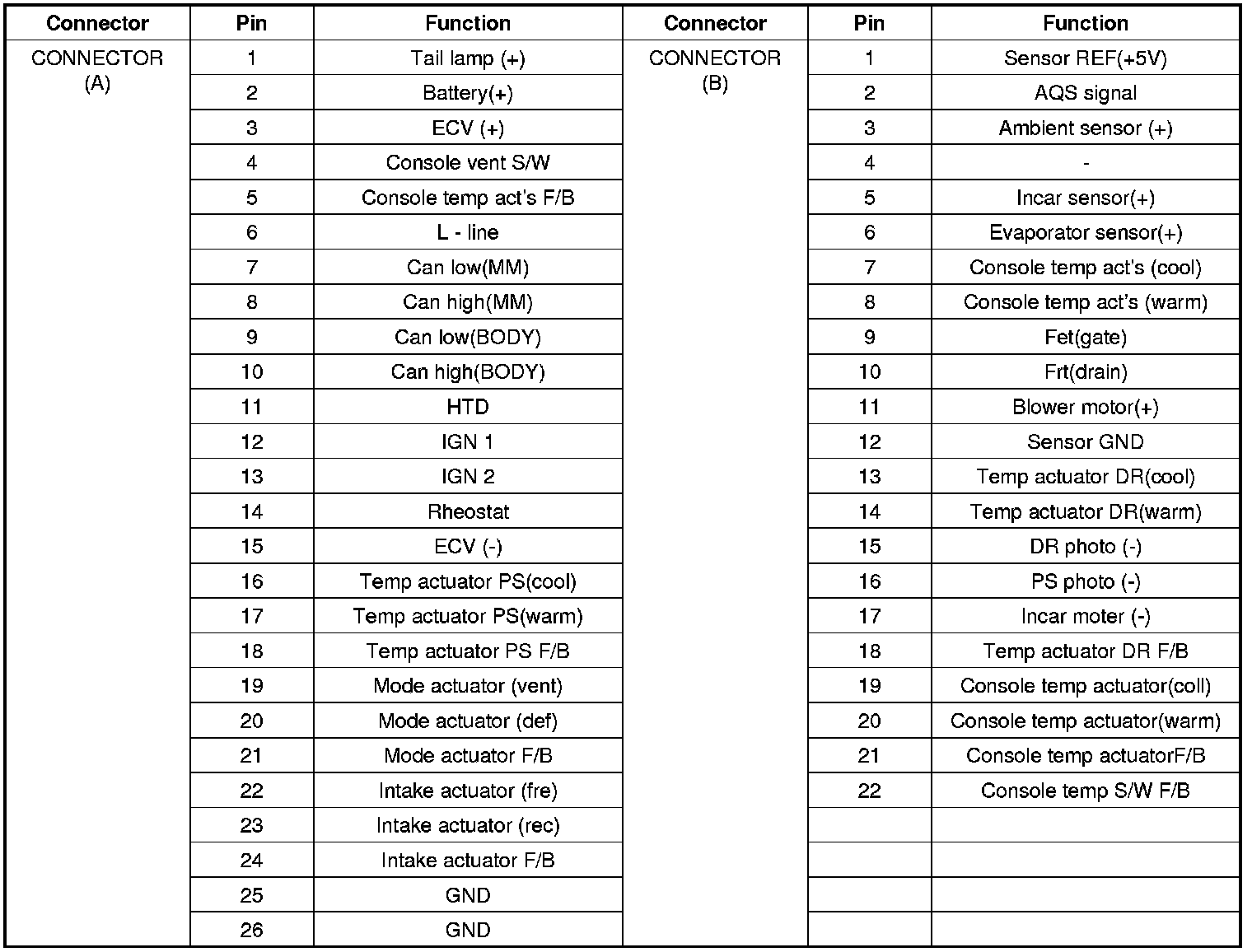

Connector pin function
