Memory Positioning Systems
Memory Positioning Systems
Inspection

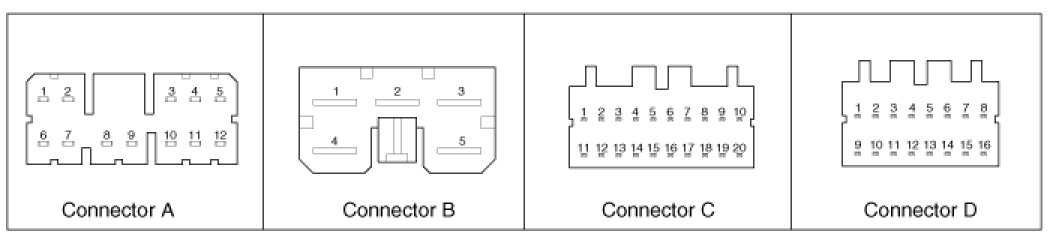

IMS Connectors

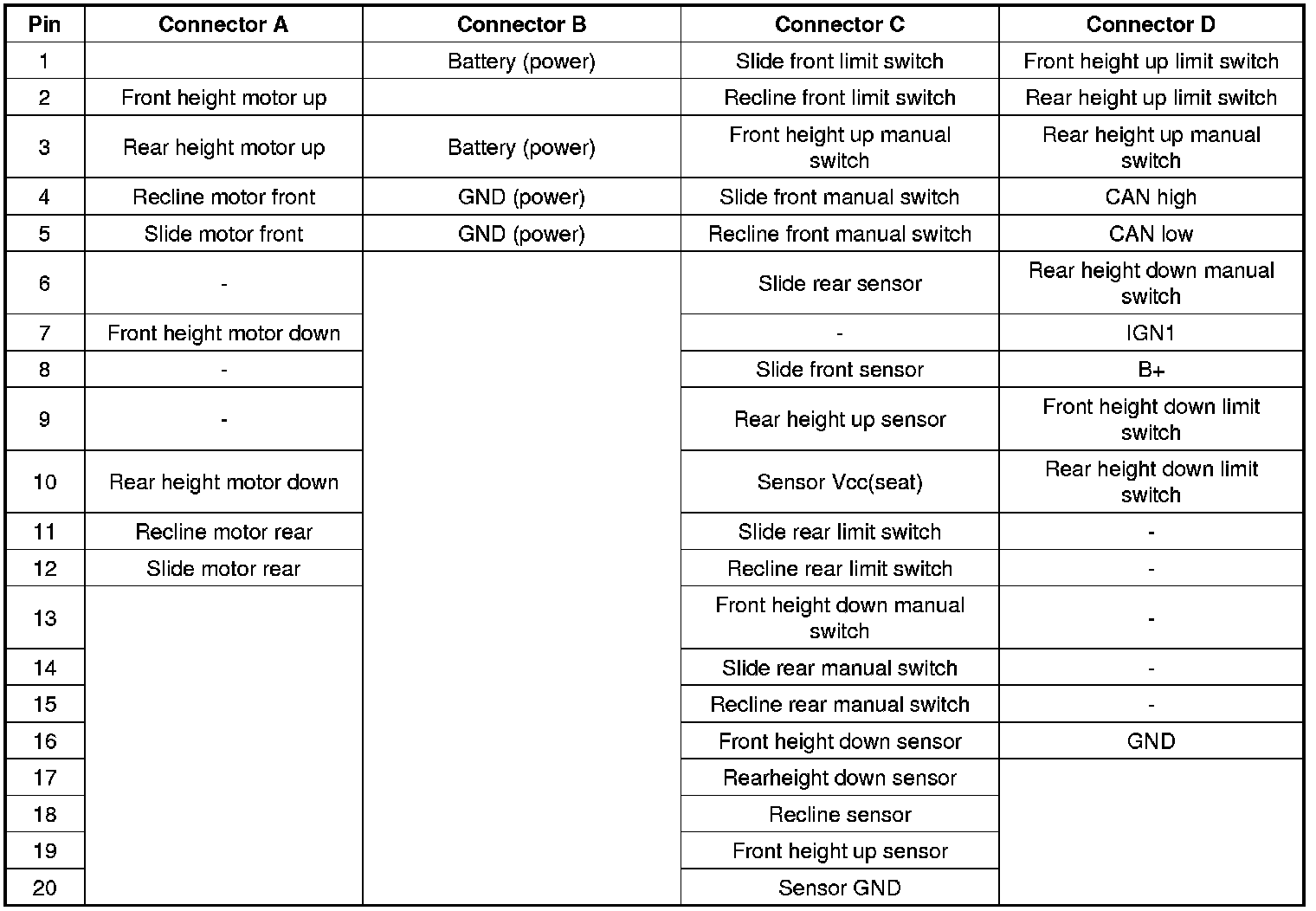

Connector Pin Name

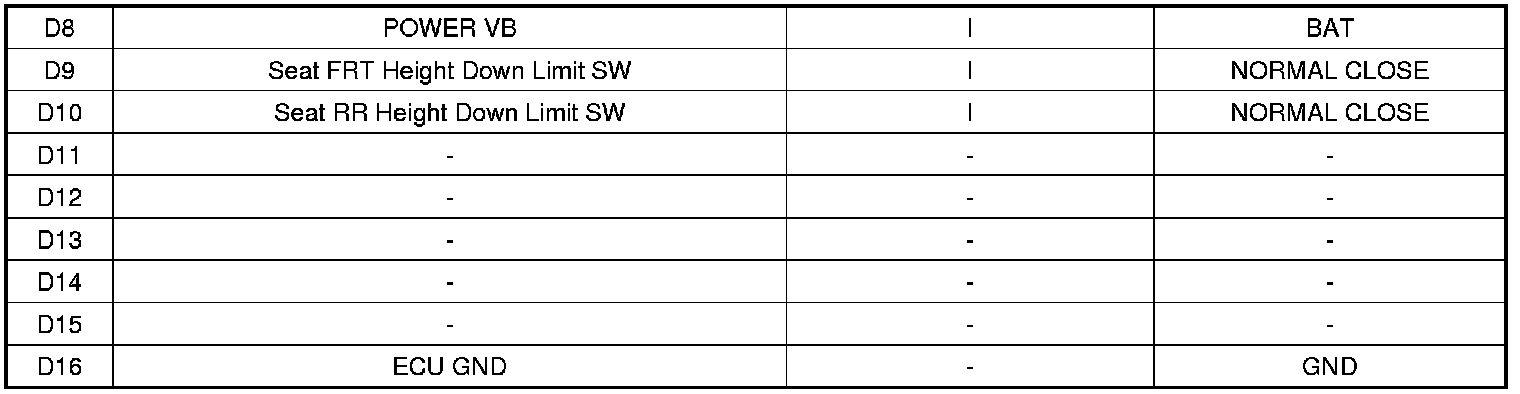

IMS Input/Output Specification
