Diagram Set SD110 (Power Distribution)

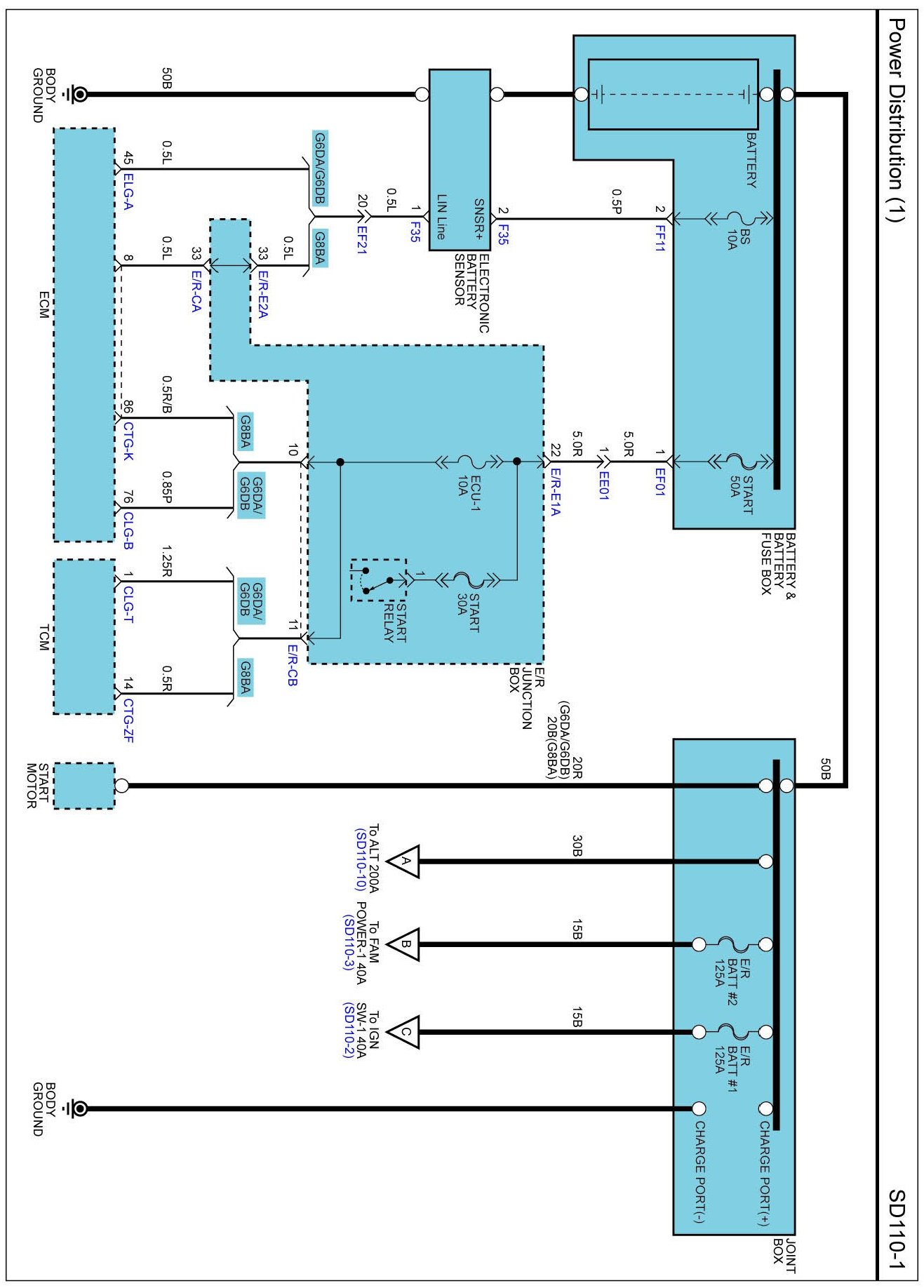

SD110-1 Power Distribution (1):

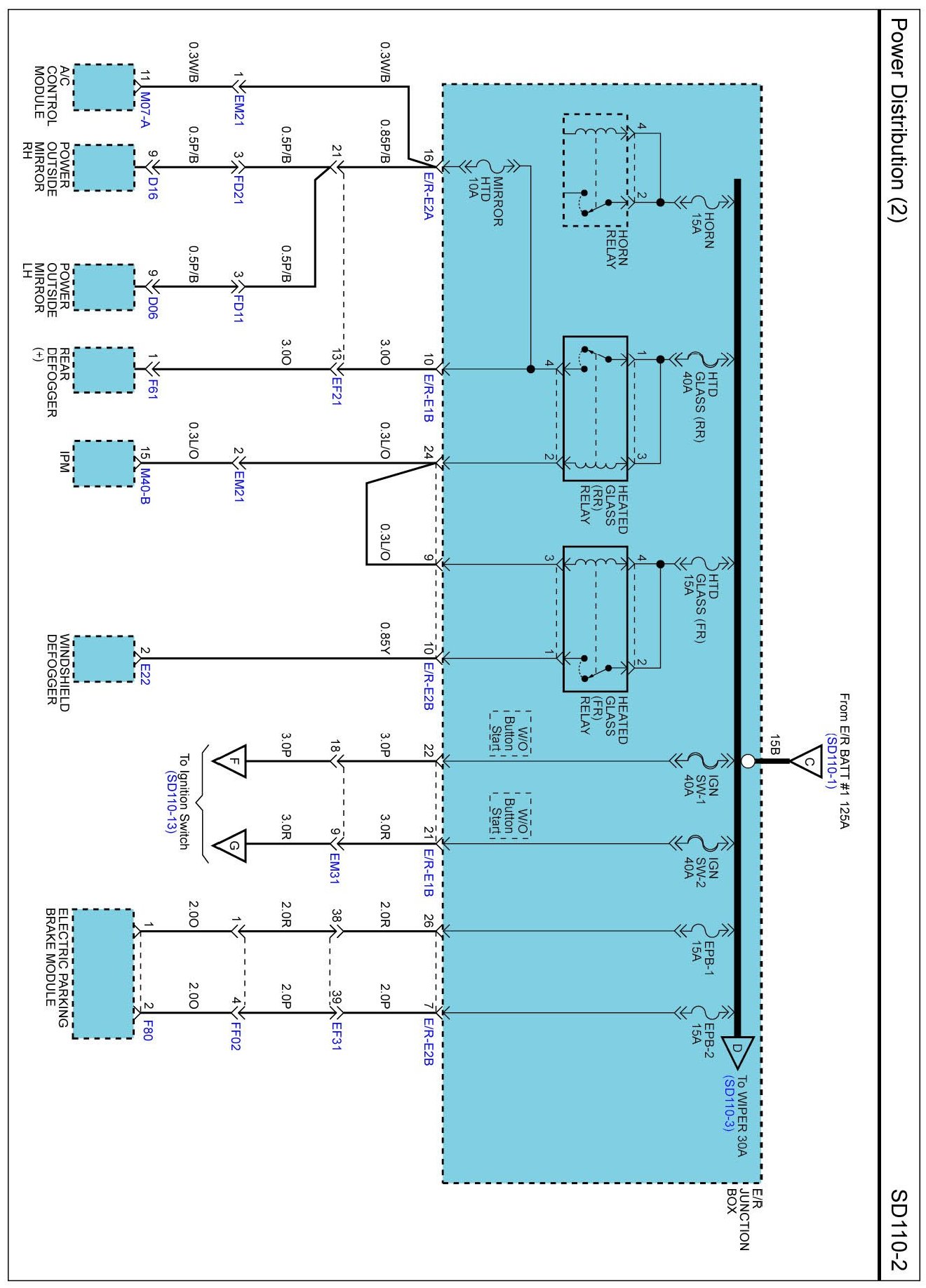

SD110-2 Power Distribution (2):

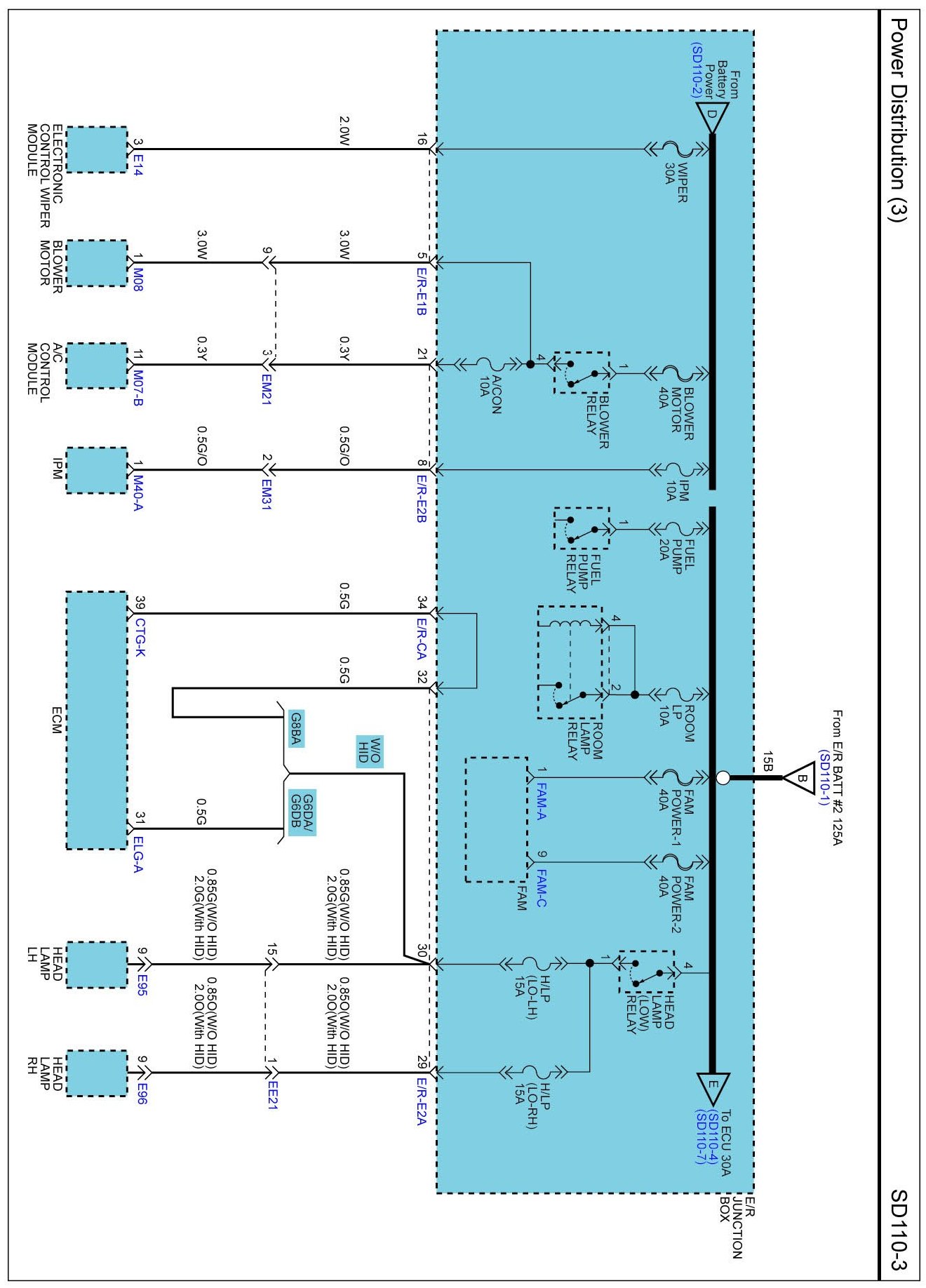

SD110-3 Power Distribution (3):

SD110-4 Power Distribution (4):

SD110-5 Power Distribution (5):

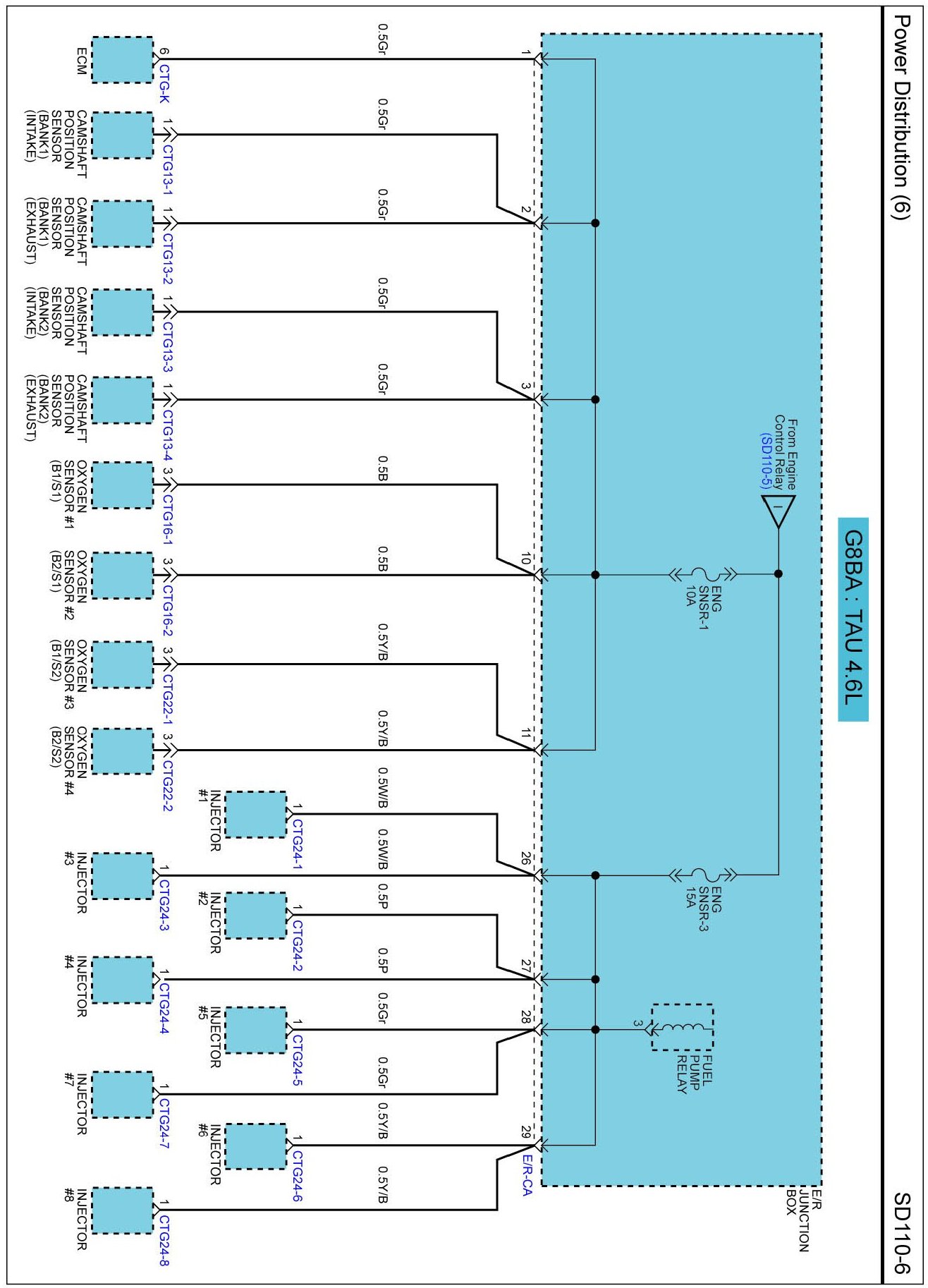

SD110-6 Power Distribution (6):

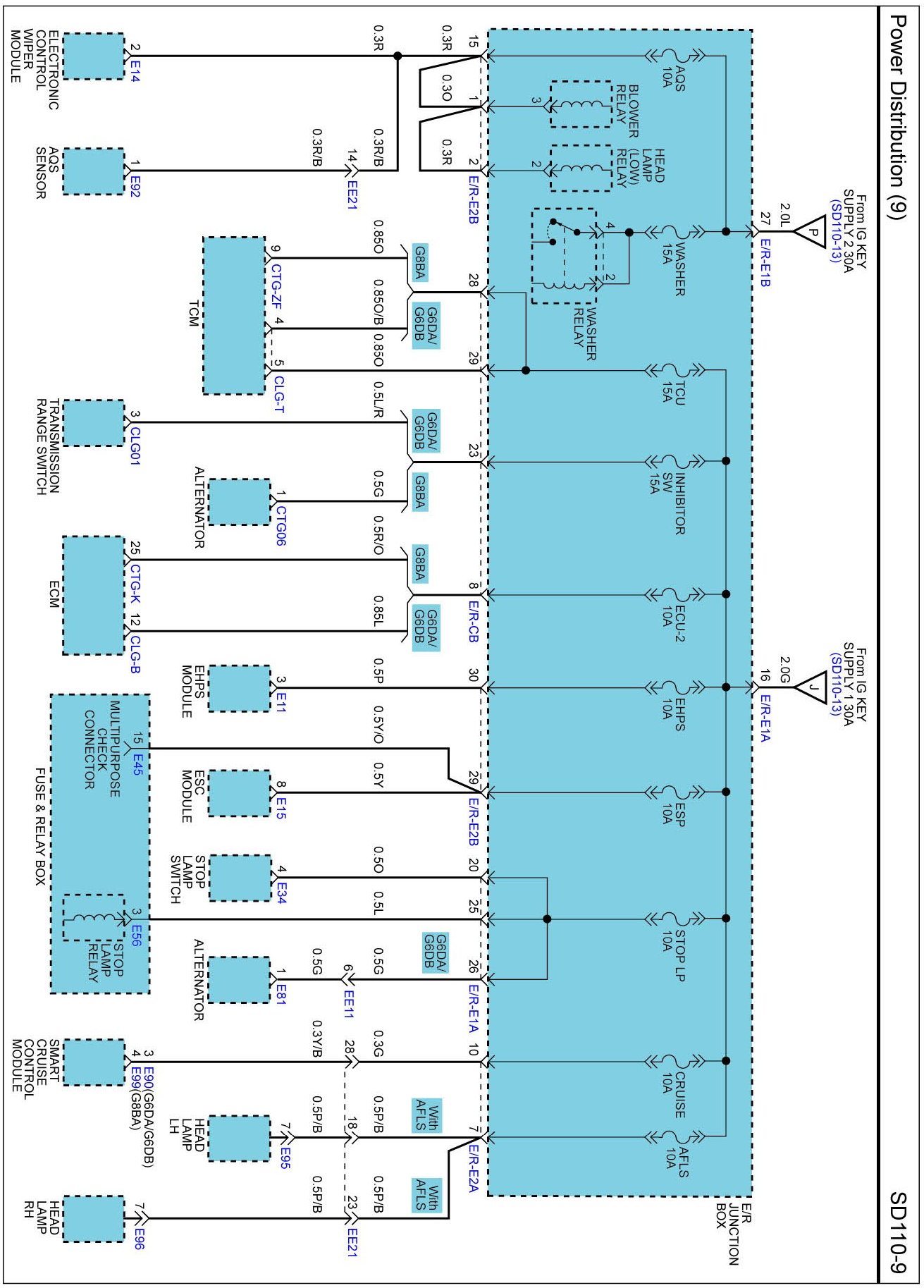

SD110-9 Power Distribution (9):

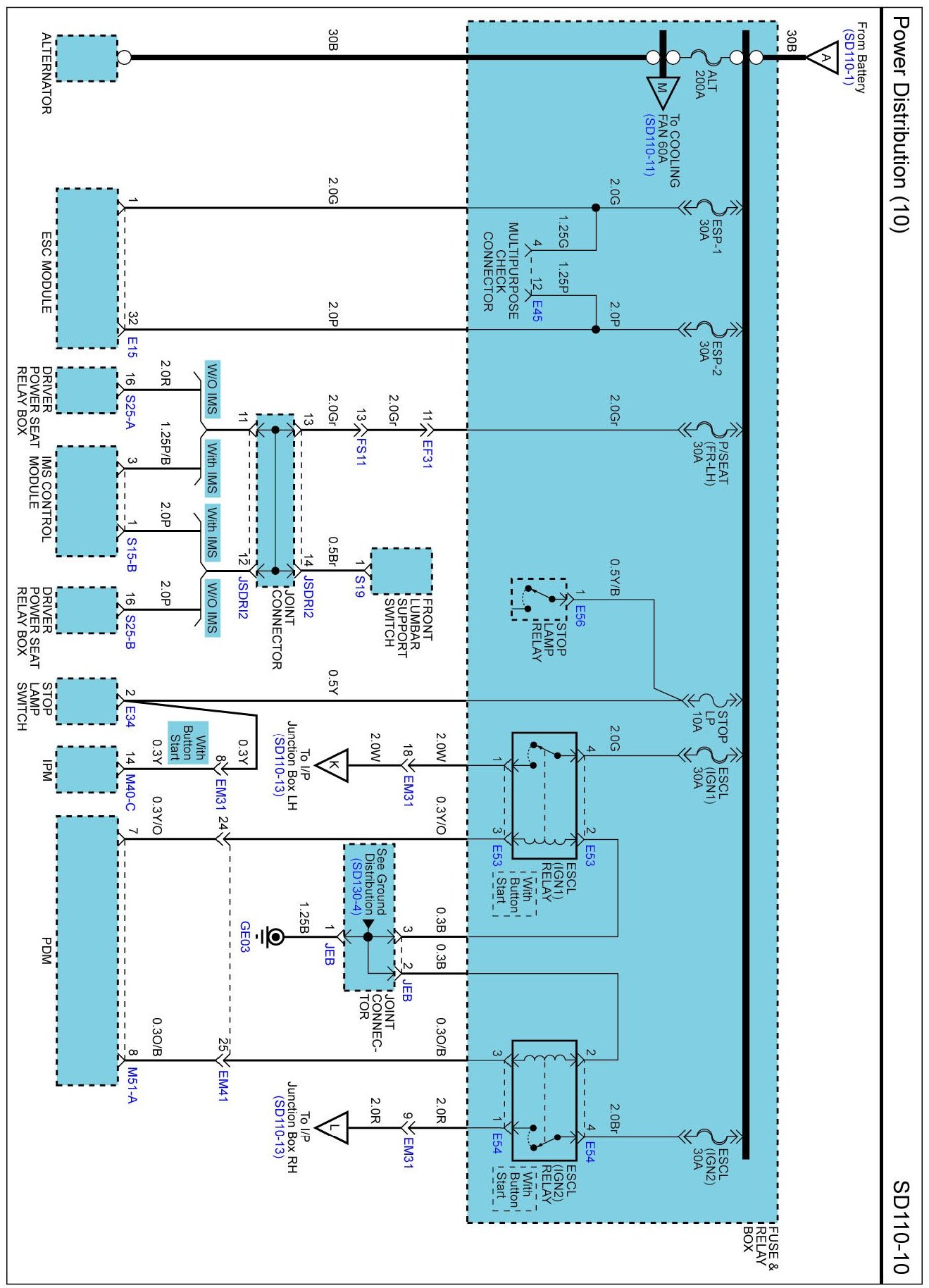

SD110-10 Power Distribution (10):

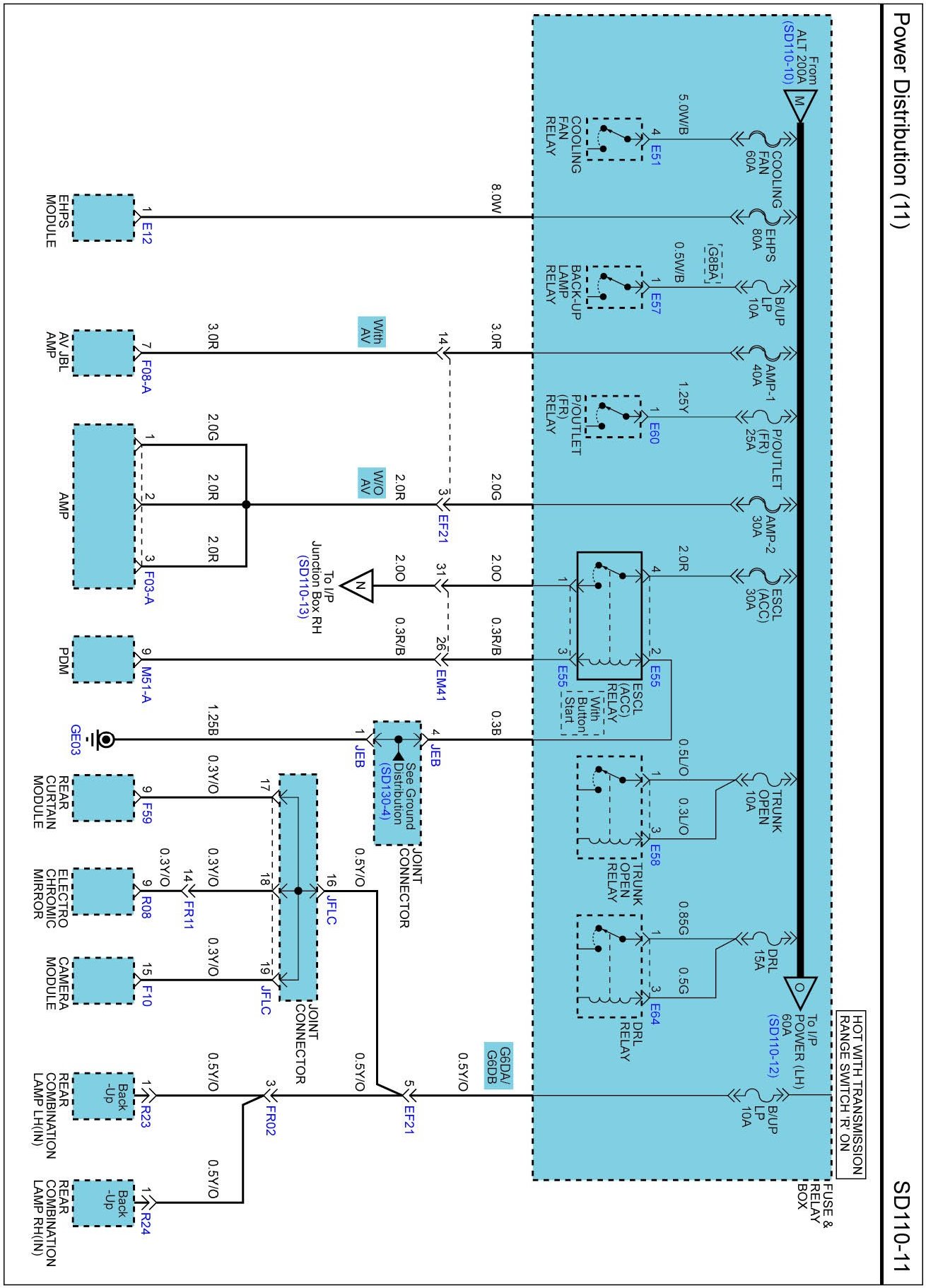

SD110-11 Power Distribution (11):

SD110-12 Power Distribution (12):

SD110-13 Power Distribution (13):
