Diagram Set SD880 (Driver Power Seat)
Diagram Set SD880 (Driver Power Seat)
SD880-1 Driver Power Seat (1):

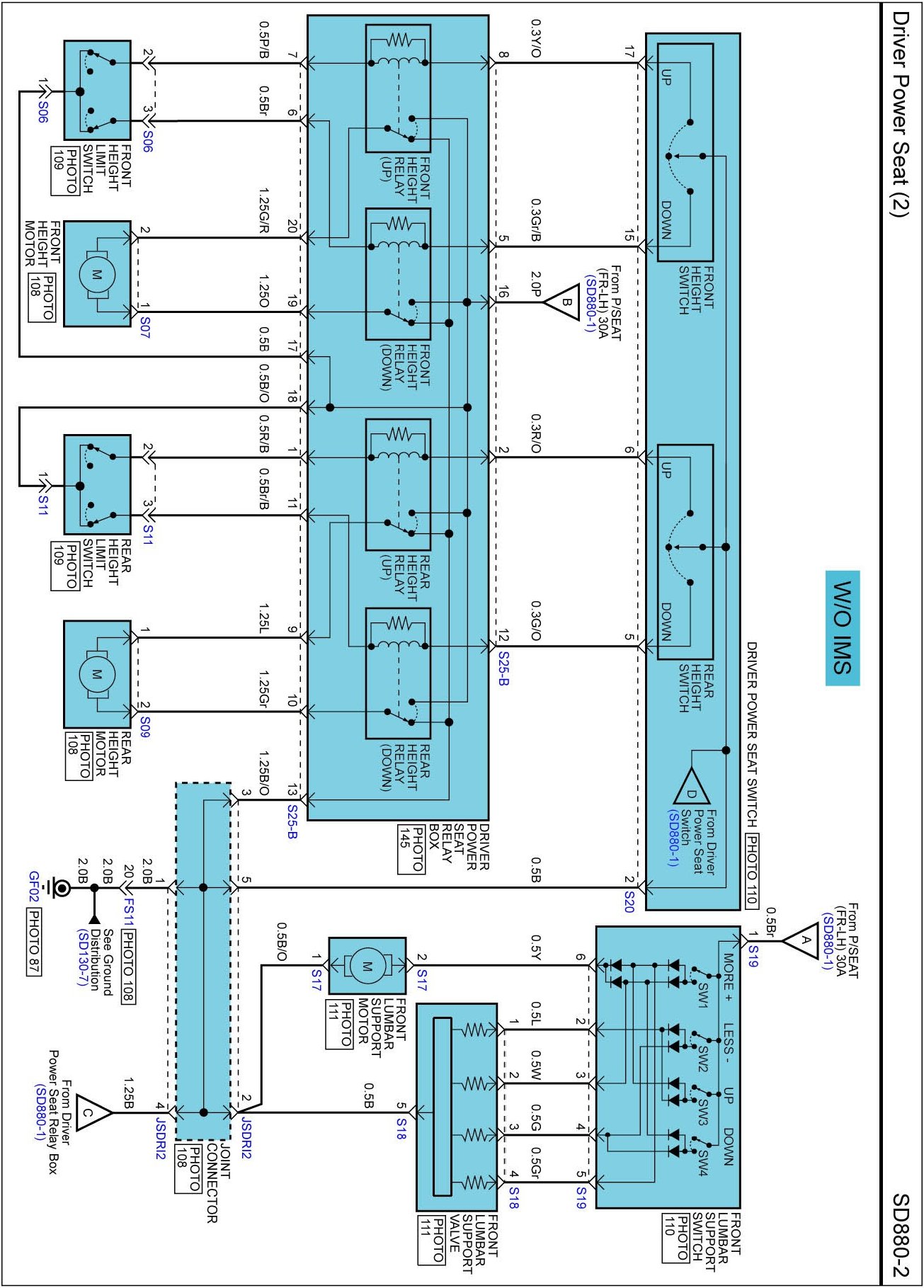

SD880-2 Driver Power Seat (2):
