Diagram Set SD964 (Auto Cruise System)

SD964-2 Auto Cruise System (2):

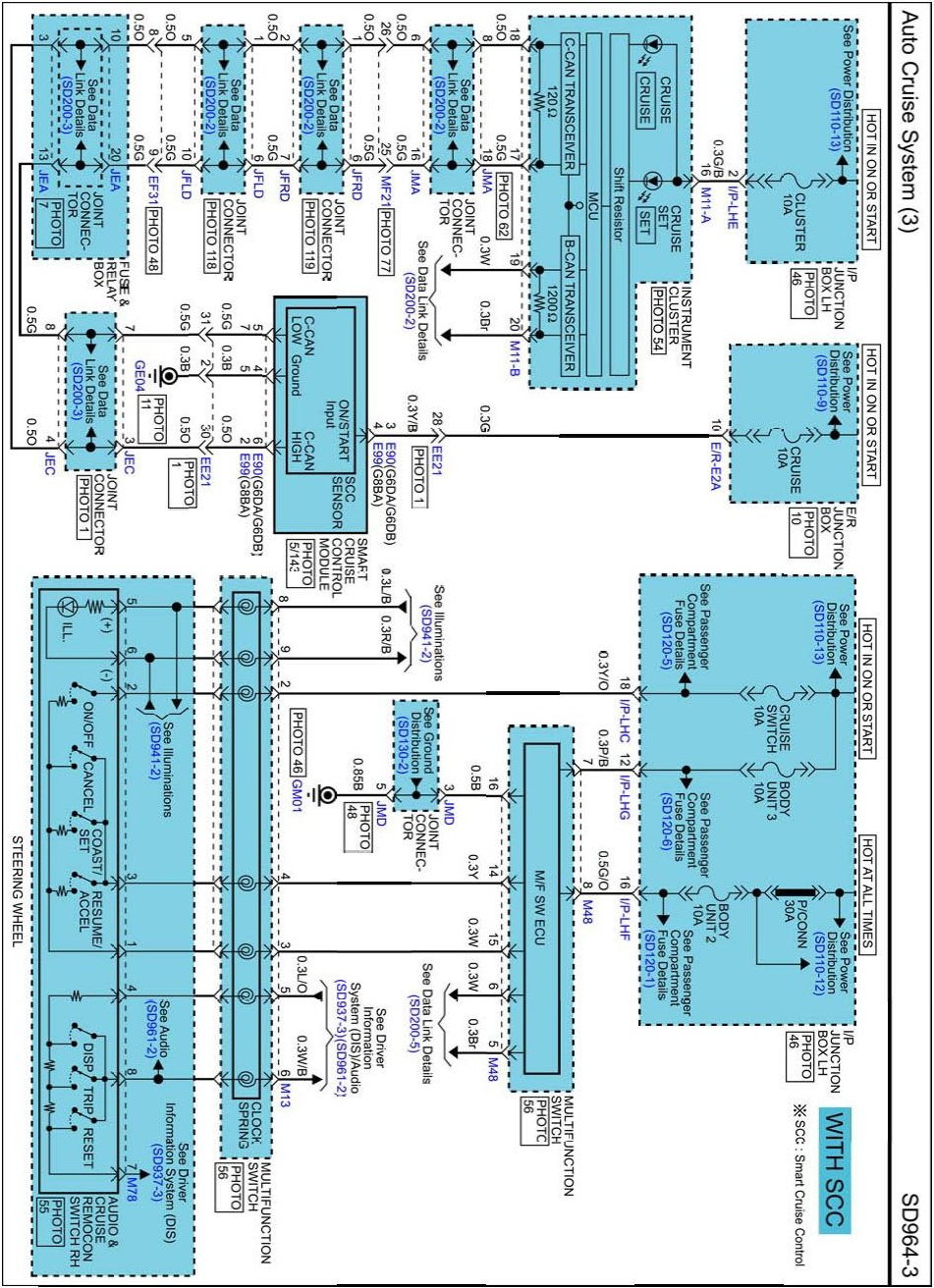

SD964-3 Auto Cruise System (3):
