Cabin Temperature Sensor / Switch: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad side cover (A).

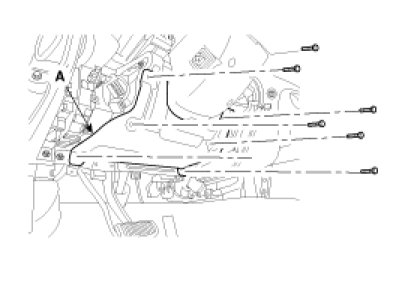

3. After loosening the mounting screws, remove the lower panel (A).

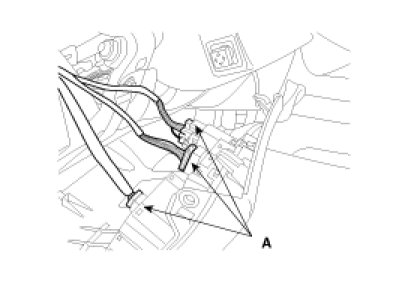

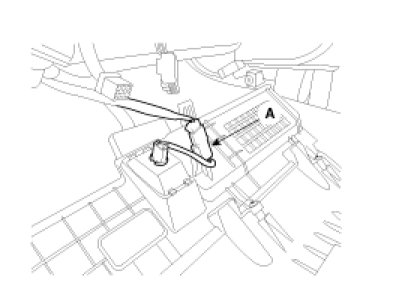

4. Disconnect the connector (A).








5. After loosening the mounting bolts, then remove the reinforcing panel (A).

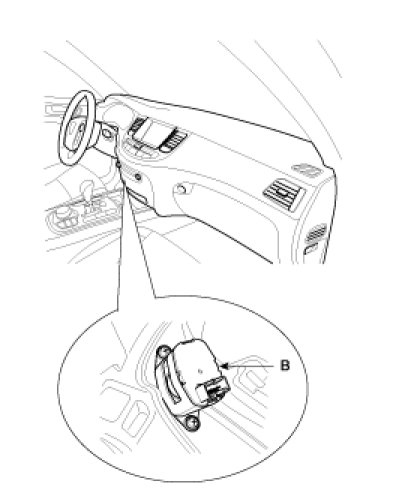

6. Disconnect the connector of in-car sensor. Loosen the mounting 2 screws and then remove the in-car sensor (B).




7. Installation is the reverse order of removal.
