Driver/Vehicle Information Display: Testing and Inspection

Variant coding when replace the DIS head unit

DIS head unit delivers the necessary expertise such as multi media, air conditioning, trip computer and drive information.
For these reasons, further information of vehicle have to be inputted to new DIS head unit when the DIS head unit is replaced.

NOTE:
Below description is only using the GDS.

Variant Coding
In case replacement the new head unit, should be variant coding at the engineering mode.

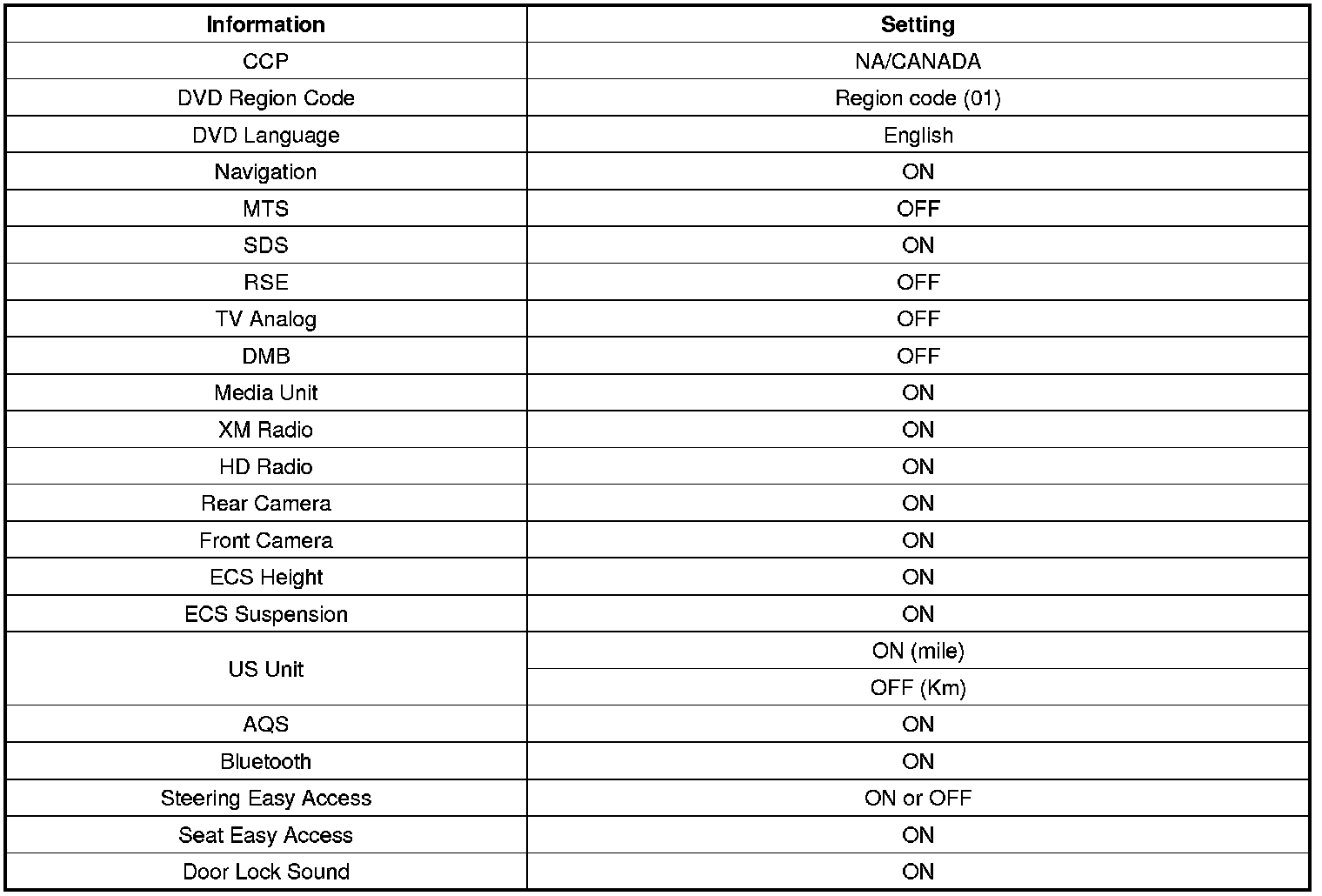

1. Check below information about hardware devices in system or vehicle with GDS.

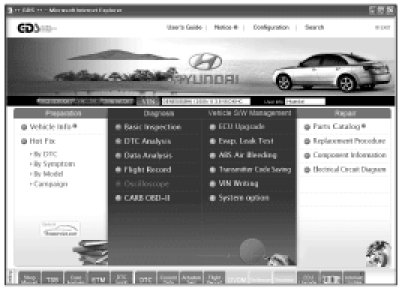

2. Select the "GDS VIN Search".

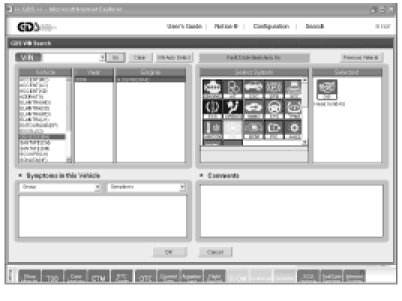

3. Select the "Vehicle / Year / Engine" and select item "DIS".

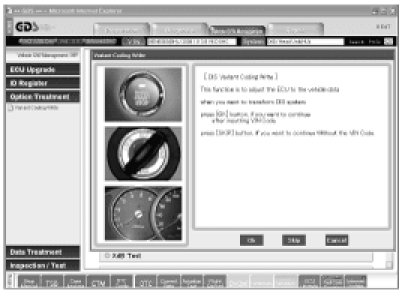

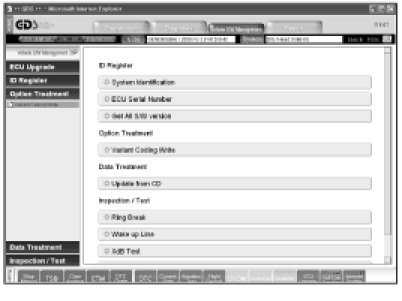

4. Select the "Variant coding write" then click the "OK".

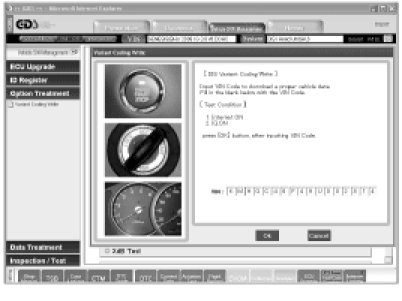

5. Input the VIN code and click the "OK".

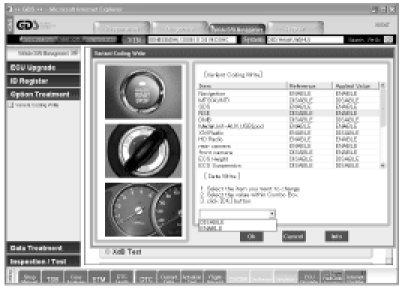

6. Select the item which you want to change. And change the value within combo box.

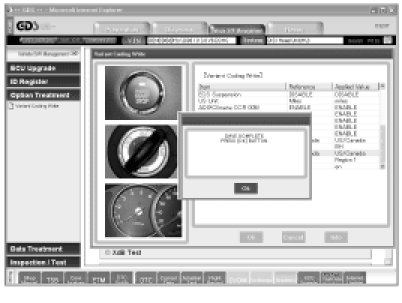

7. Click the "OK" then complete the variant coding write process.
