Parking Assist Warning Indicator: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

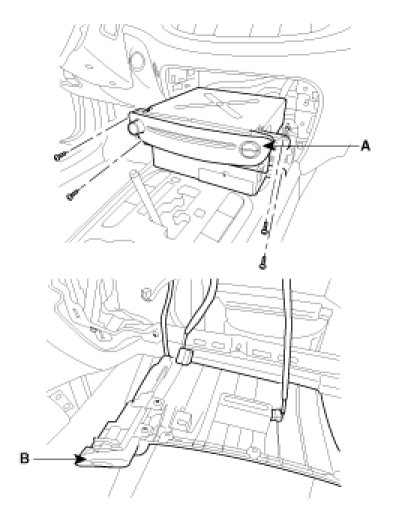

2. Remove the audio head unit (A) and glove box (B).




3. Remove the buzzer (A) after removing the connector and nut.






Installation

1. Install the buzzer and connector.
2. Install the audio head unit and glove box.
