Instrument Panel, Gauges and Warning Indicators: Service and Repair

Replacement

Cluster Facia Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the crash pad side cover (A).

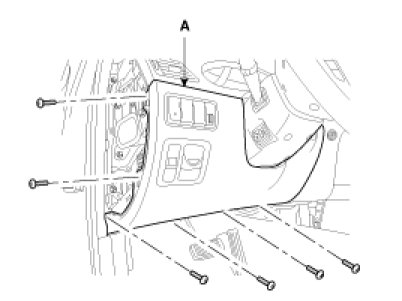

2. After loosening the mounting screws, remove the lower panel (A).

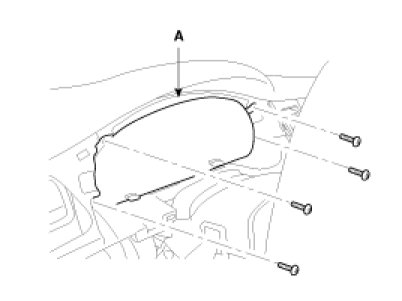

3. After loosening the mounting screws, remove the cluster facia panel (A).




4. After loosening the mounting screws, remove the cluster (A).




5. Disconnect the connector (A).




6. Installation is the reverse the removal.

NOTE:
- Make sure the connector is connected properly.
