Head Lamps

Removal

1. Disconnect the negative (-) battery terminal.

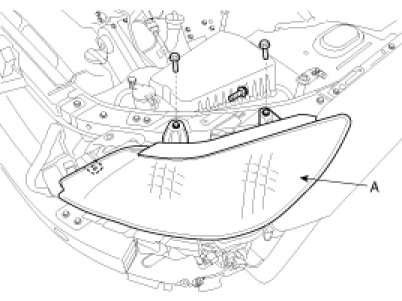

2. Loosen the mounting bolts(3EA) of head lamp. Remove the head lamp assembly(A) after disconnecting the lamp connectors.





NOTE:
Take care that retaining clip (A) is not to be damaged.




3. Remove the bulb caps from the head lamp assembly.
A : Head lamp high bulb cab
B : Head lamp low bulb cab
C : Turn signal bulb






Installation

1. Install the head lamp bulbs.
2. Install the head lamp bulb caps.
3. Install the head assembly after connecting the lamp connector.
