Vanity Lamp: Service and Repair
Replacement
Hands free mic and lamp replacement
1.

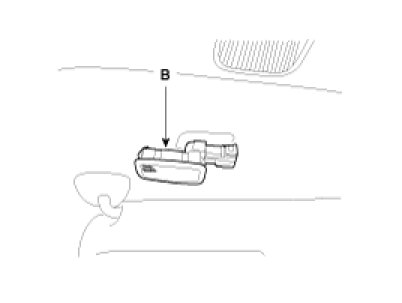

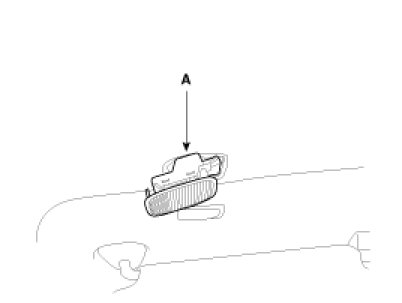

Remove the hands free mic (A) and lamp (B).
2.
Installation is the reverse of removal.
