Windshield Washer Motor: Service and Repair

Removal

CAUTION:
1) When servicing the washer pump, be careful not to damage the washer pump seal.
2) Do not operate the washer pump before filling the washer reservoir.
Failure to do so could result in premature pump failure.

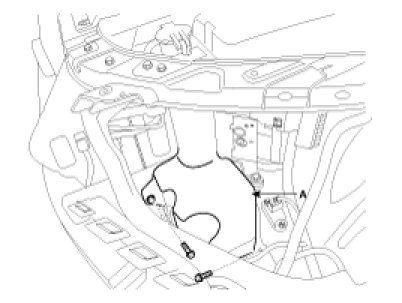

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper cover.
3. Remove the washer hose and the washer motor connector.
4. Disconnect the washer fluid level sensor switch connector.




5. Remove the washer reservoir after removing 2 bolts.






Installation

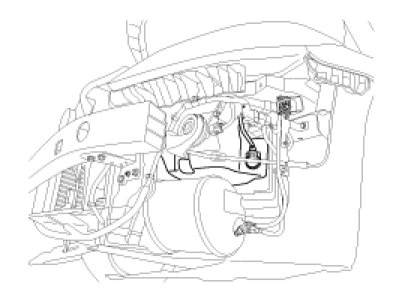

1. Install the washer reservoir.
2. Install the washer motor hose and connectors.
3. Install the front bumper cover.
