Diagram Set SD952 (BCM Control System)
Diagram Set SD952 (BCM Control System)

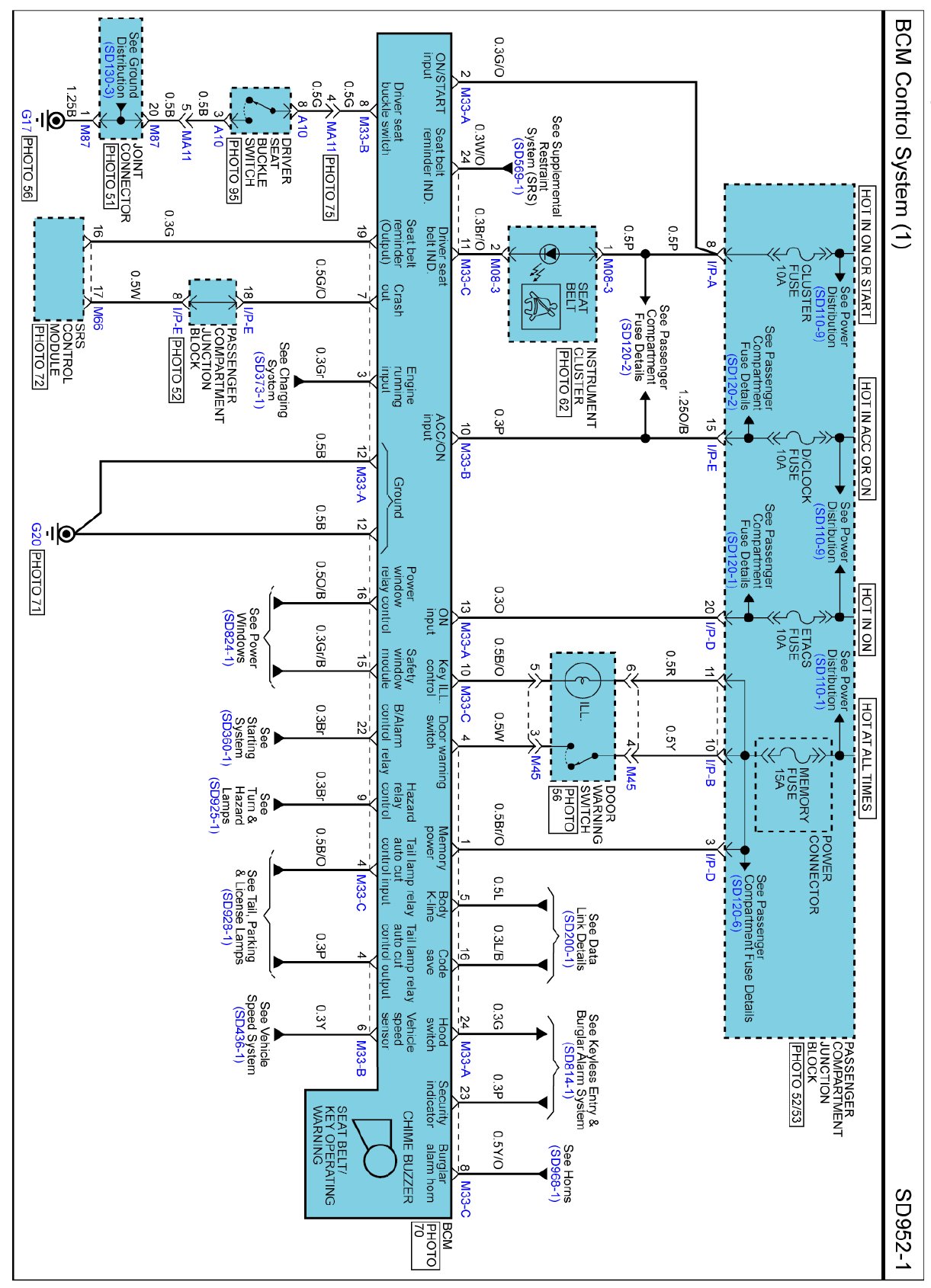

SD952-1 BCM Control System (1):

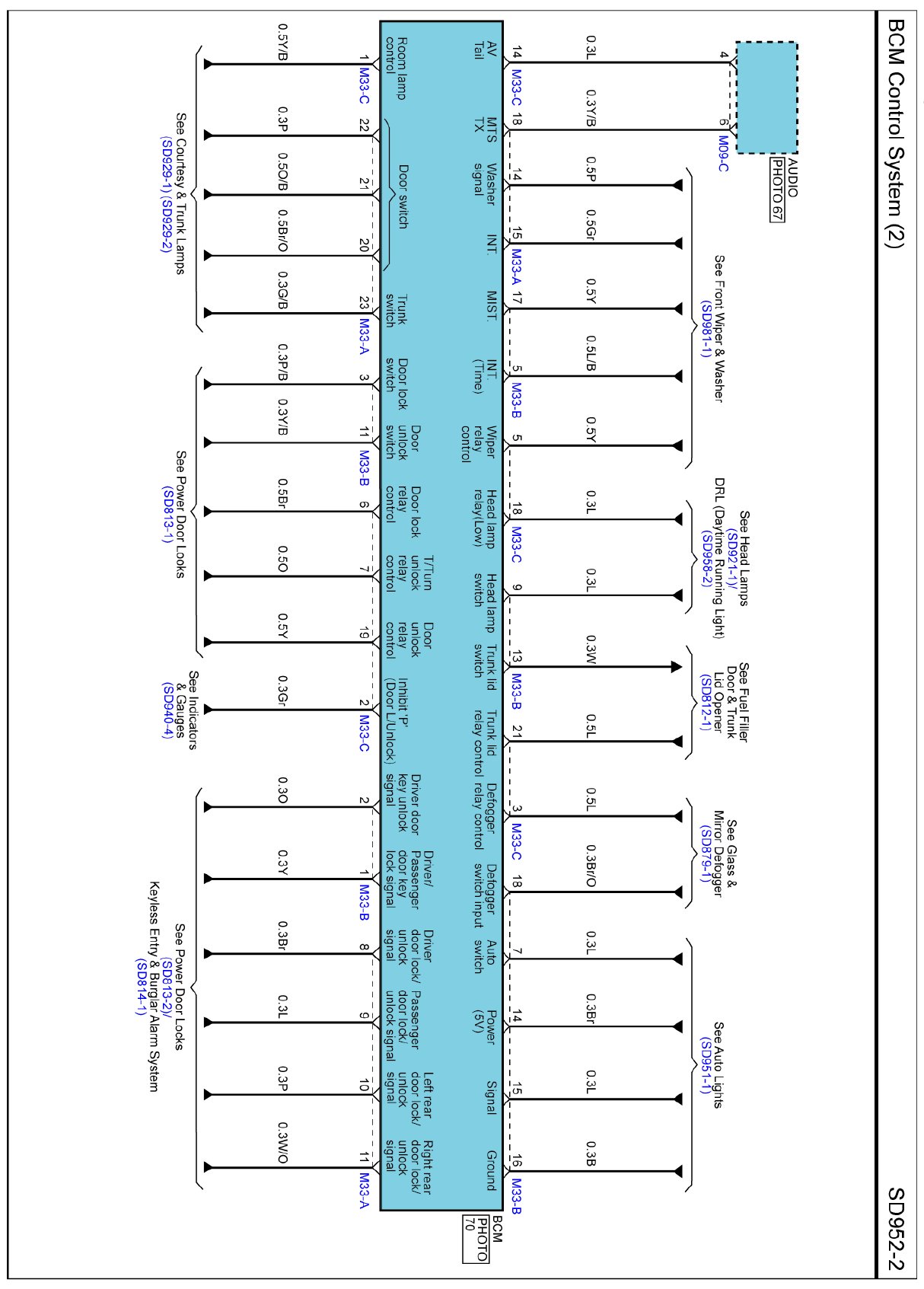

SD952-2 BCM Control System (2):
