Fog/Driving Lamp: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper. .

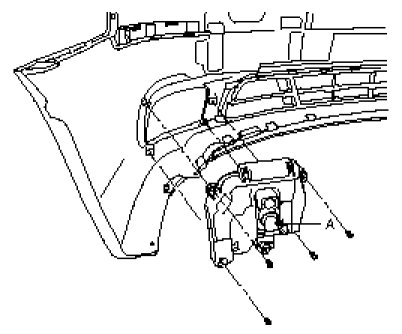

3. Remove the front fog lamp (A) after loosening the screws and disconnecting the fog lamp connector.




4. Installation is the reverse of removal.
