Headlamp: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.
2. Loose the mounting bolts (2EA) of head lamp.




3. Remove the head lamp assembly after disconnecting the lamp connectors.

NOTE:

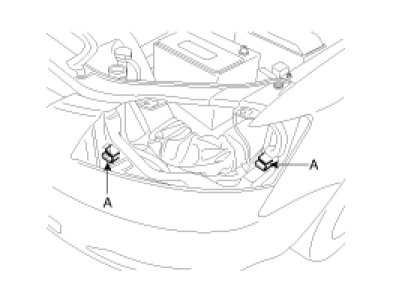

Take care that holding clip (A) is not to be damaged.




4. Remove the bulb caps from the head lamp assembly after turning in the counter clock-wise direction.

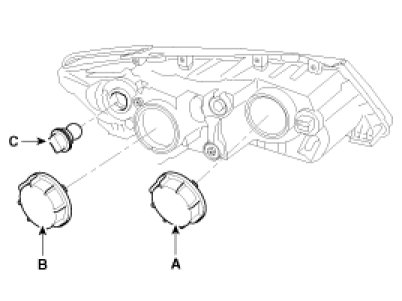

A : Head lamp high bulb
B : Head lamp low bulb cab
C : Turn signal bulb cab




5. Installation is the reverse of removal.
