Evaporative Emissions System: Description and Operation
Description

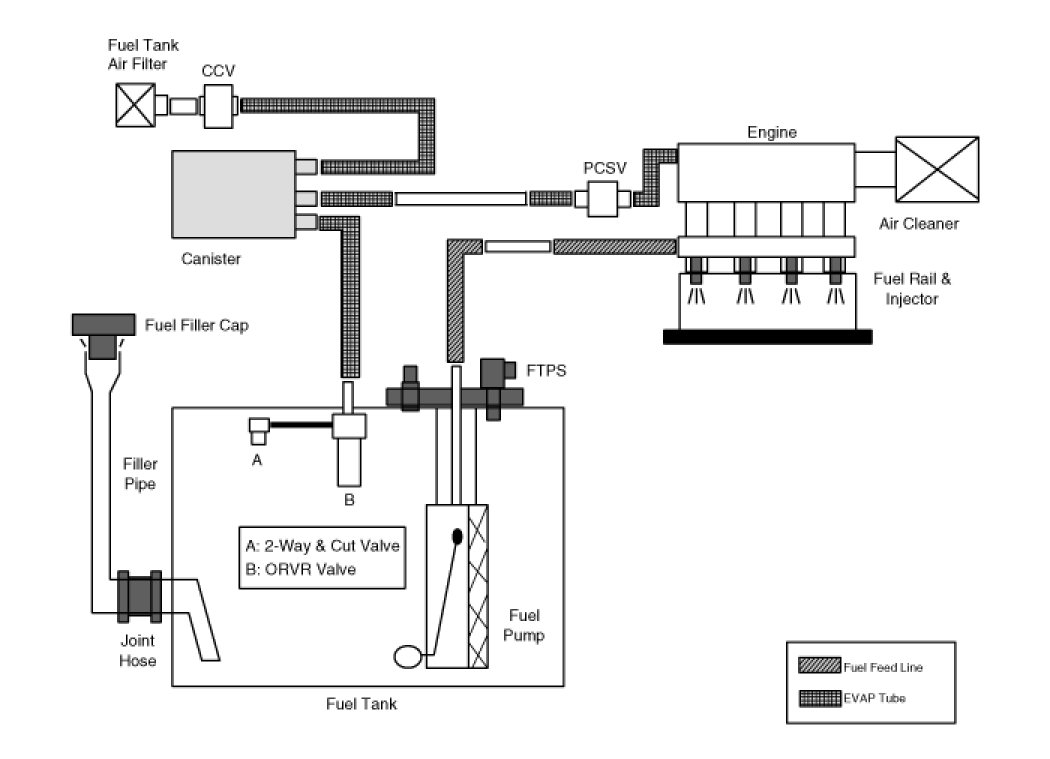

Evaporative Emission Control System prevents fuel vapor stored in fuel tank from vaporizing into the atmosphere. When the fuel evaporates in the fuel tank, the vapor passes through vent hoses or tubes to the canister filled with charcoal and the canister temporarily holds the vapor in the charcoal. The ECM determines when to draw the gathered vapor into the combustion chamber during certain operating conditions by using engine vacuum.
Canister
Canister is filled with charcoal and absorbs evaporated vapor in fuel tank. The gathered fuel vapor in canister is drawn into the intake manifold by the ECM when appropriate conditions are set.
Purge Control Solenoid Valve (PCSV)
Purge Control Solenoid Valve (PCSV) is installed in the passage connecting canister and intake manifold. It is a duty type solenoid valve and is operated by ECM signal. To draw the absorbed vapor into the intake manifold, the ECM will open the PCSV, otherwise the passage remains closed.
Canister Close Valve (CCV)
The Canister Close Valve (CCV) is located between canister and fuel tank air filter. It closes off the air inlet to the canister for the Evaporative Emissions System leak detection inspection function and also prevents fuel vapors from escaping from the Canister when the vehicle is not operating.
Fuel Tank Pressure Sensor (FTPS)
The Fuel Tank Pressure Sensor (FTPS) is an integral part of the monitoring system. The FTPS. checks Purge Control Solenoid Valve (PCSV) operation and leaks in the Evaporative Emission Control System by monitoring pressure and vacuum level in the fuel tank during PCSV operating cycles.
Fuel Filler Cap
A ratchet tightening device on the threaded fuel filler cap reduces the chances of incorrect installation, which would seal the fuel filler. After the gasket on the fuel filler cap and the fill neck flange contact each other, the ratchet produces a loud clicking noise indicating the seal has been set.
Evaporative System Monitoring
Evaporative Emission Control Monitoring System consists of fuel vapor generation, evacuation, and leakage check step. The OBD-II system checks vapor generation by monitoring fuel pressure in small amounts and then it evacuates the evaporative system by means of PCSV actuation in order to maintain a certain vacuum level. The final step is to check if there is any leakage in the system by checking for a vacuum loss.
Vapor Generation Checking
During stabilization period, the PCSV and the CCV are closed, and the system pressure is measured as starting pressure (DP_A). After a certain defined period (T1), the system pressure (DP_B) is measured again and the difference from the starting pressure is calculated. If this difference(DP_B - DP_A) is bigger than a threshold, there should be excessive vapor and the monitor is aborted for next checking. If the difference is lower than another negative threshold, the PCSV is regarded as malfunctioning possibly due to a restriction or clog in the open position.
Evacuation
PCSV is opened with a certain ramp for the pressure to reach down to a certain level. If pressure can't be lowered below a threshold, the system is regarded as fuel cap opened or having a large leakage.
Leakage Checking
PCSV is closed and the system waits for a period to get stabilized pressure. During checking period (T2), the system measures the beginning and the end of the system pressure(DP_C, DP_D). The diagnosis value is the pressure difference corrected by natural vapor generation(DP_B - DP_A) rate from the vapor generation checking step.
