Restraints and Safety Systems: Locations

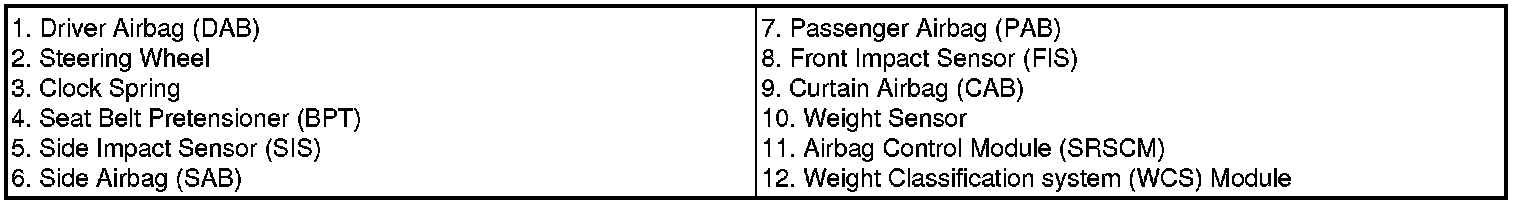

Components

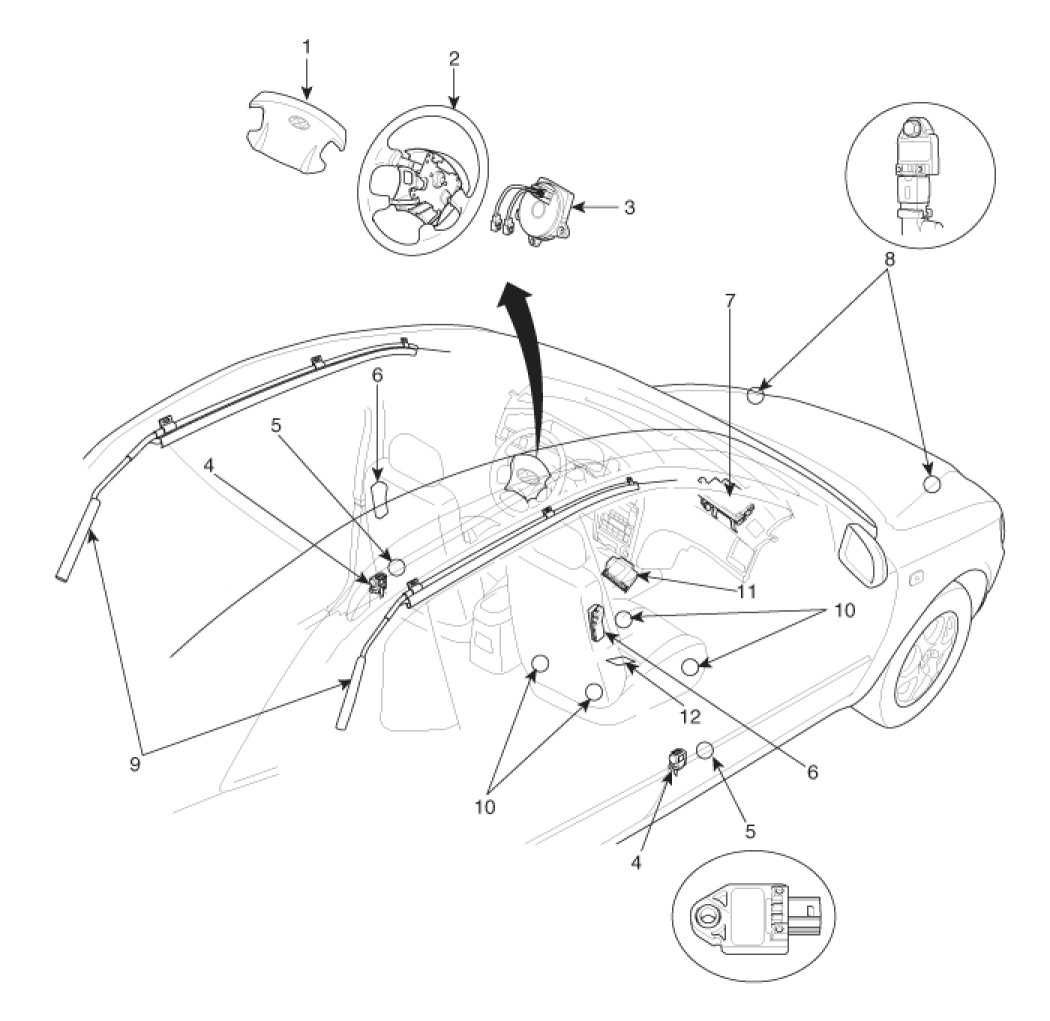

Components Location

Driver Airbag(DAB) / Passenger Airbag(PAB)

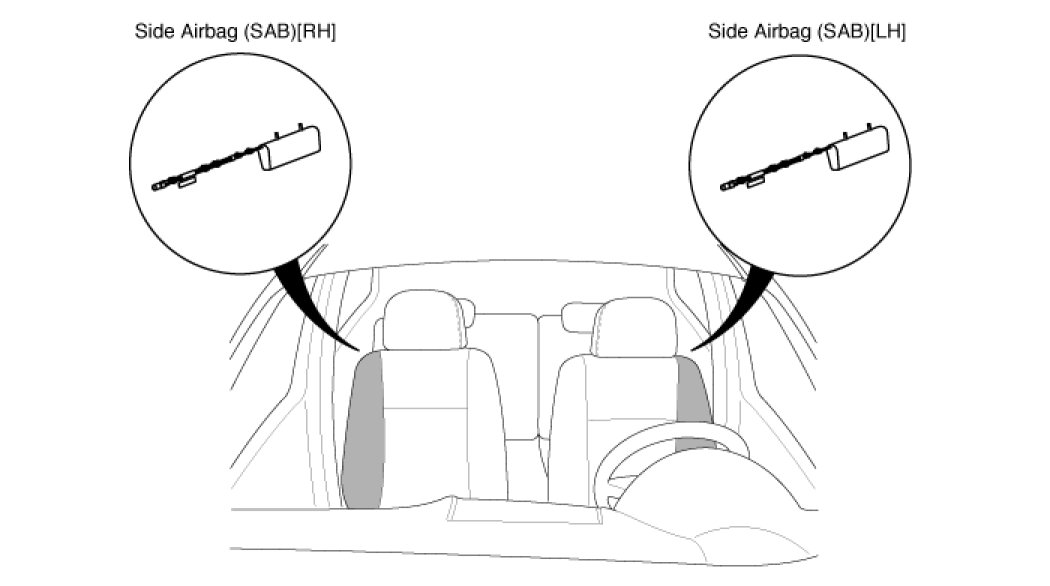

Side Airbag (SAB)

Front Impact Sensor(FIS)

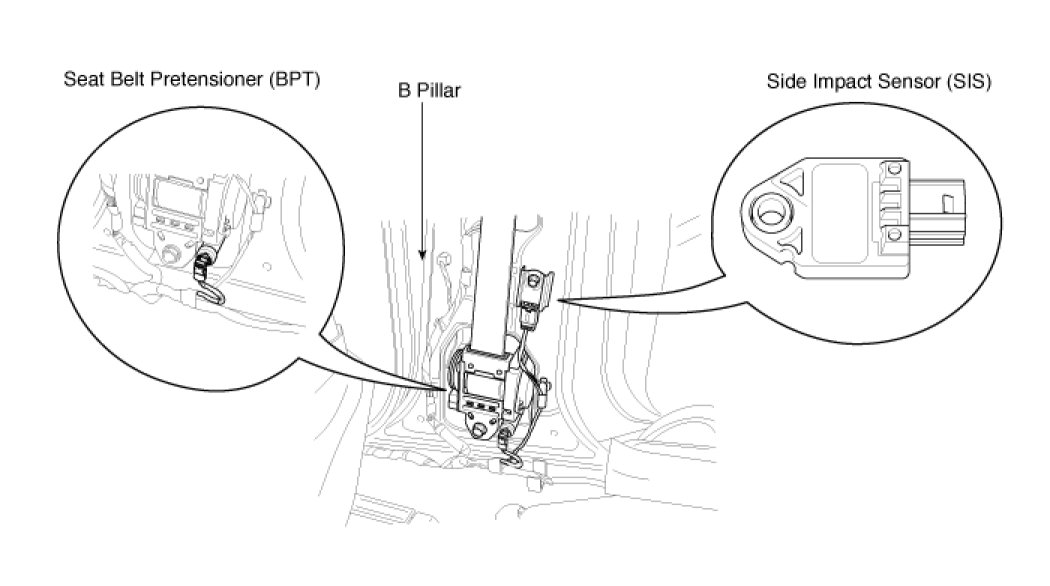

Seat Belt Pretensioner(BPT) / Side Impact Sensor(SIS)

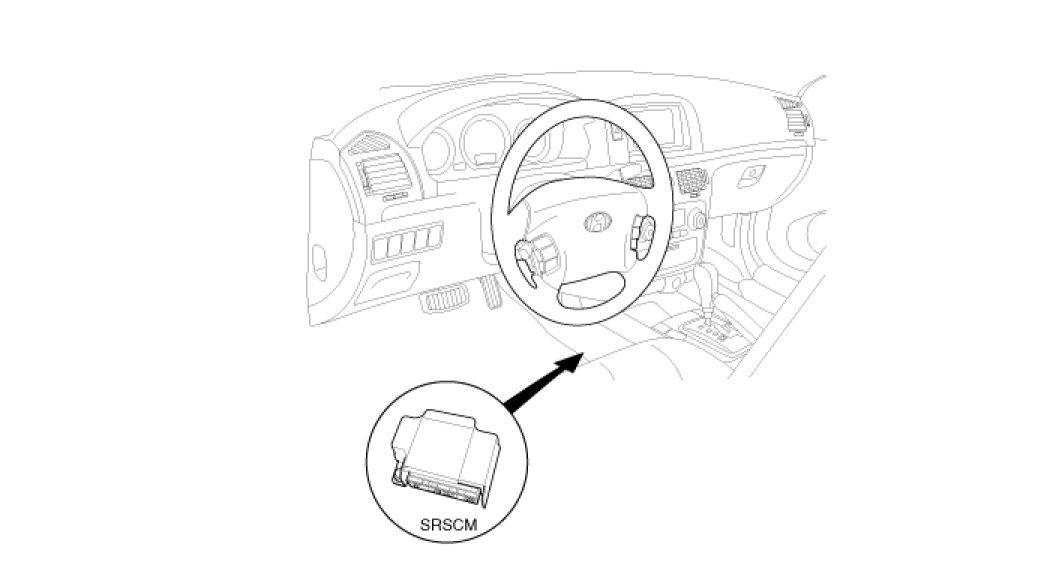

SRSCM
