Electronic Throttle Actuator
>>
ETC (Electronic Throttle Control) System
ETC (Electronic Throttle Control) System

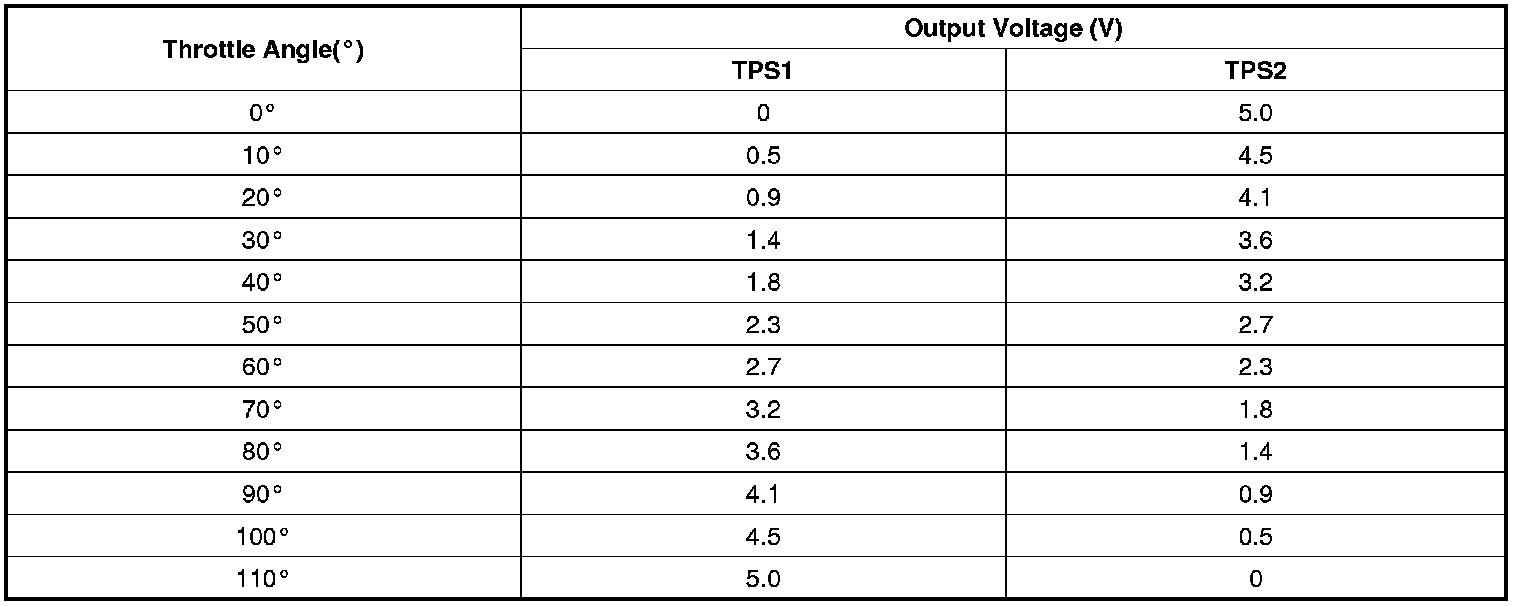

Specification
[
Throttle position sensor
]
[ETC motor]
