System Specifications

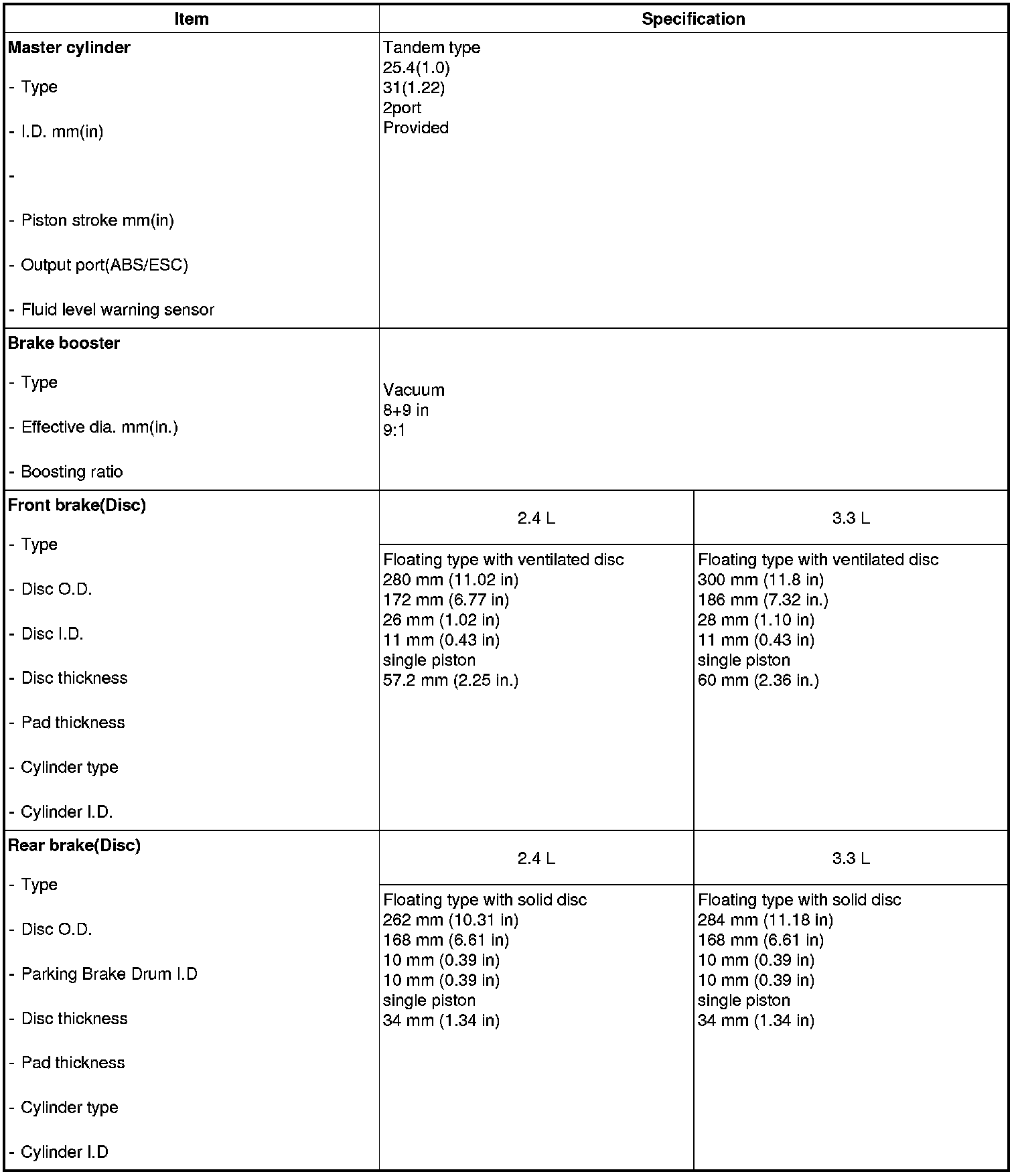

Specifications









O.D=Outer Diameter
I.D=Inner Diameter


NOTE:
ABS : Anti-lock Brake System
ESC : Electronic Stability Control

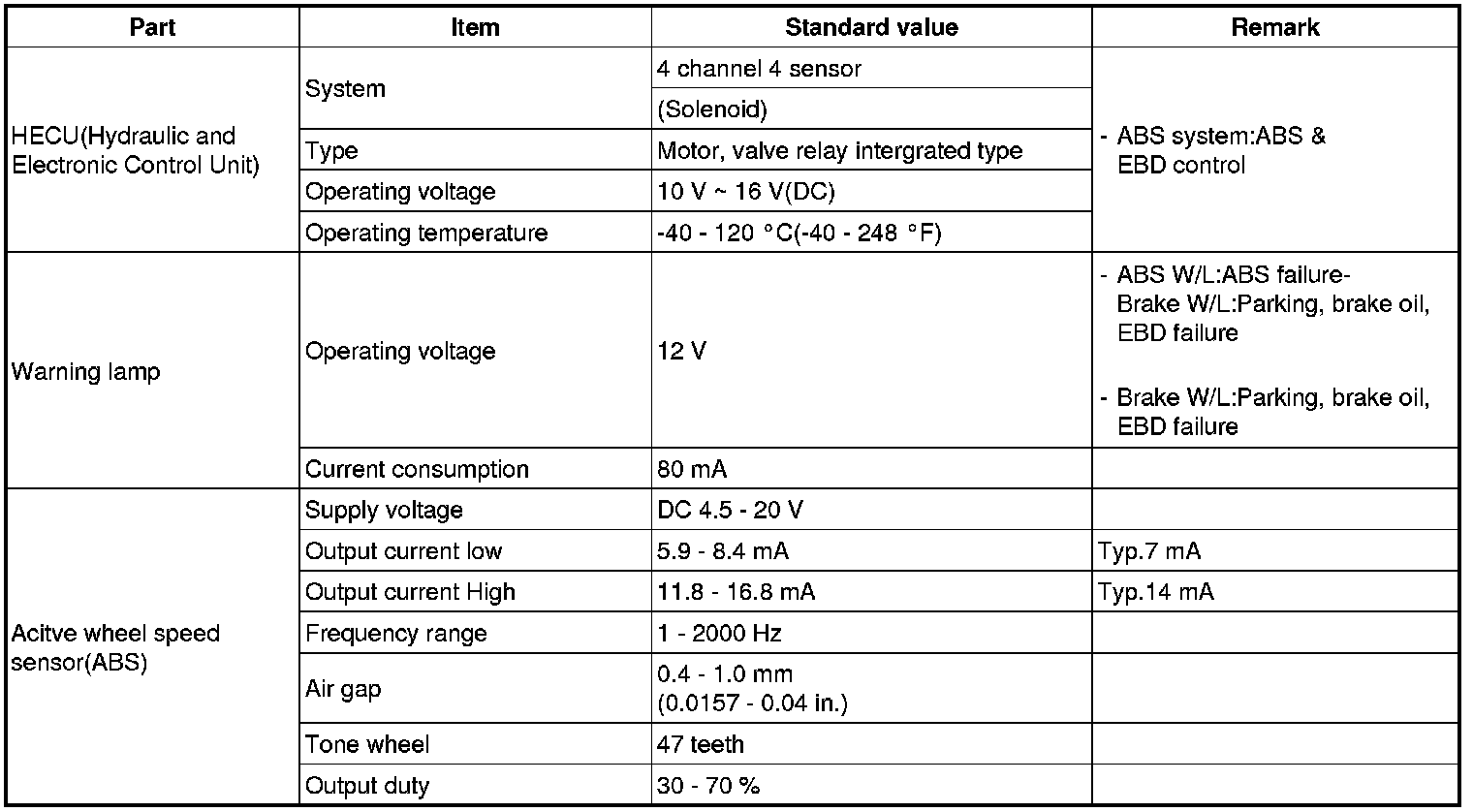

Specification (ABS)






Specification (ESC)

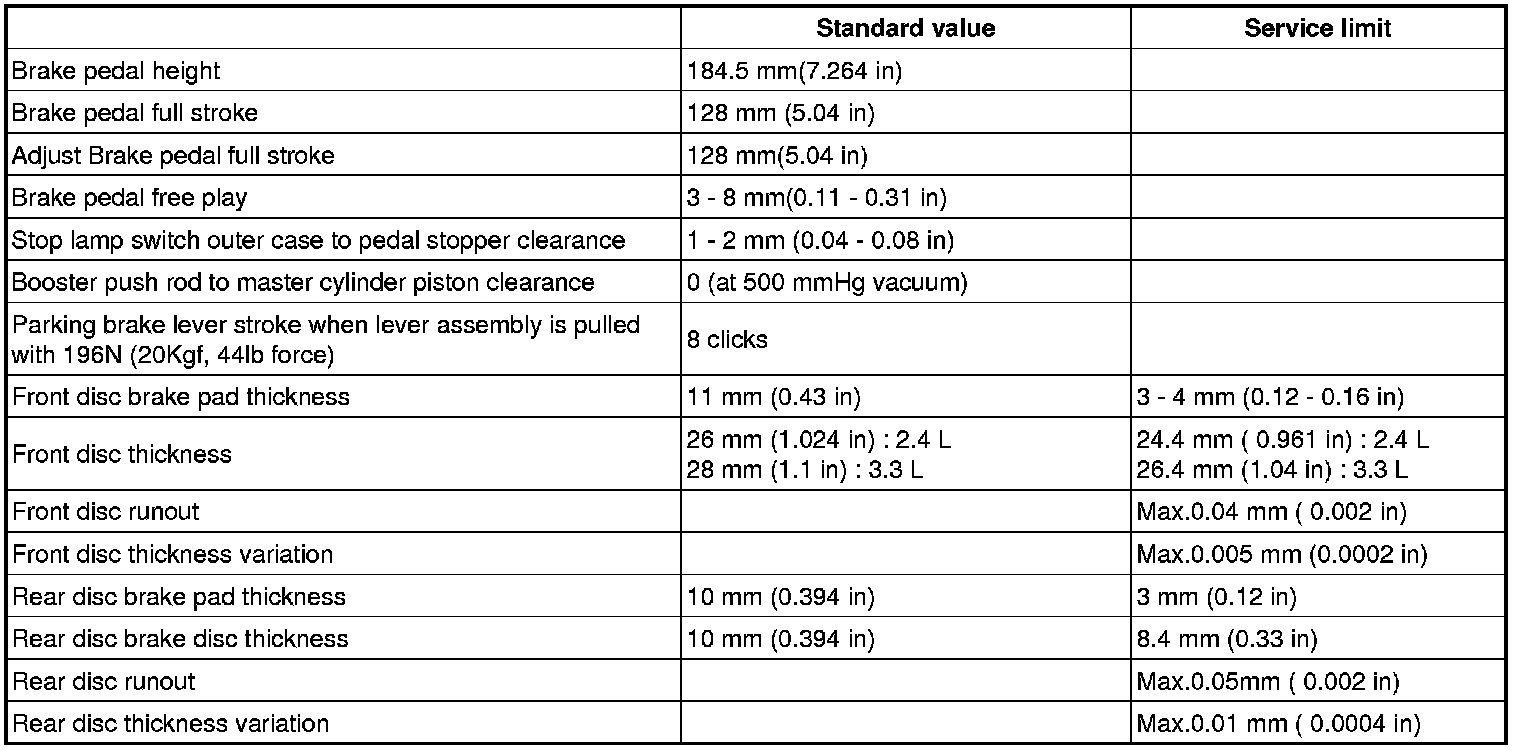

Service Standard

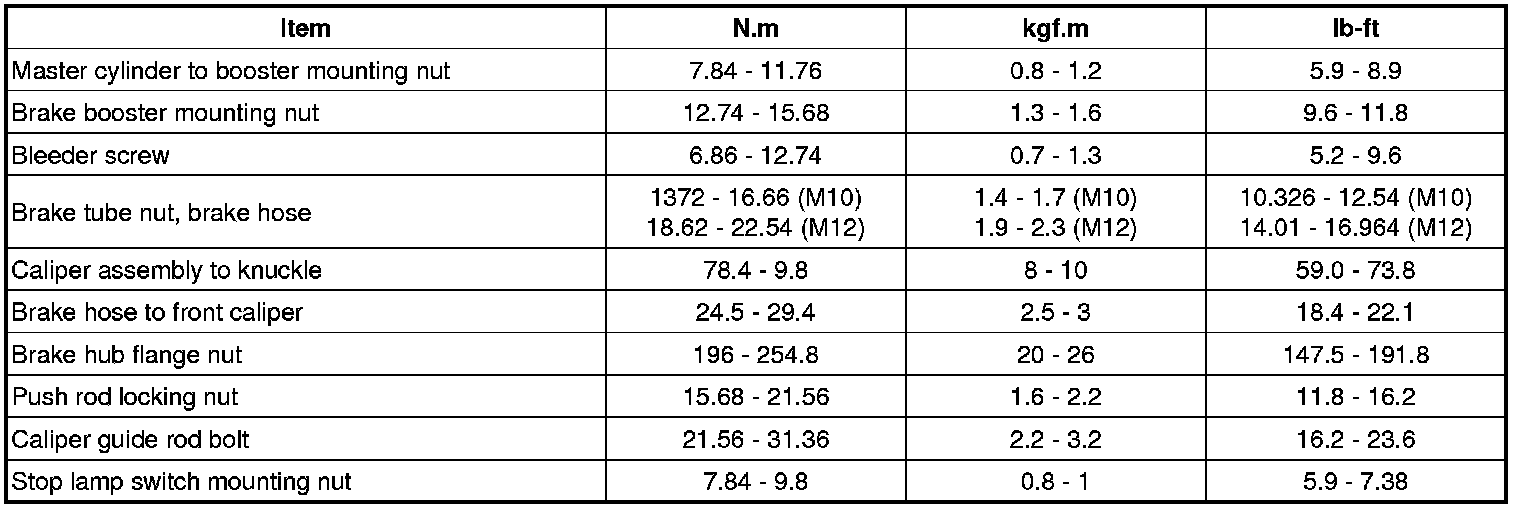

Tightening Torques

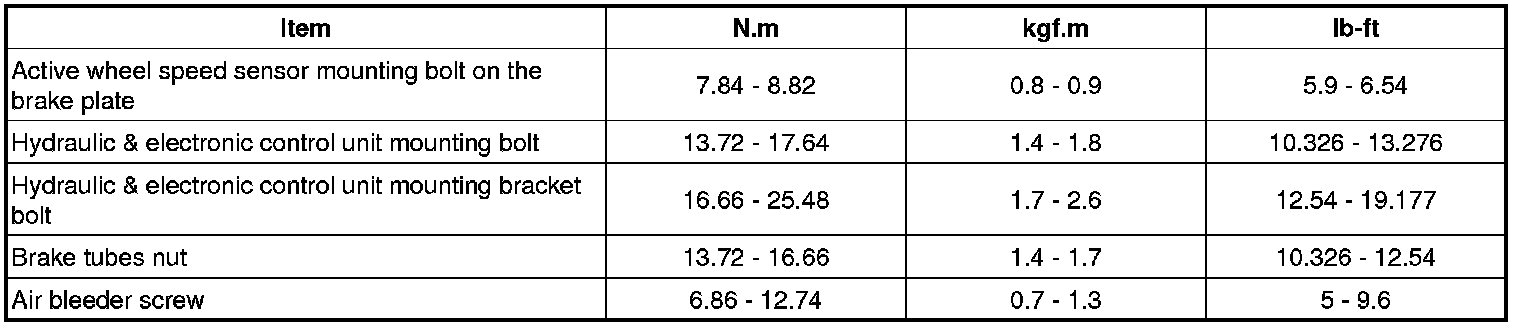

Tightening Torques (ABS)

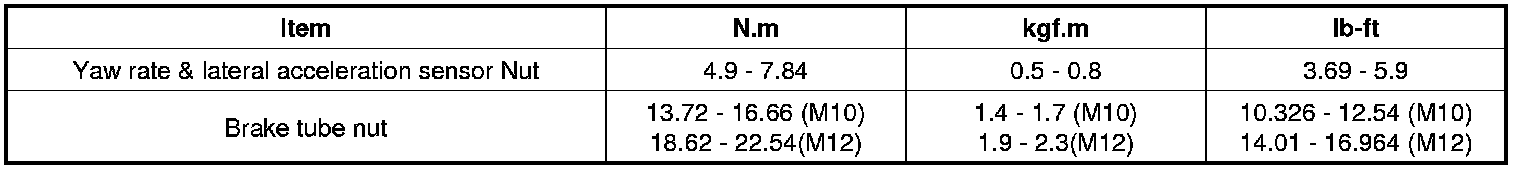

Tightening Torques (ESC)
