Monitor DTC Status

Head Lamp

Automatic Headlamp Leveling System - C1522 Head Lamp Light Signal Line Open Monitor Scantool data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Engine "ON" and Head lamp"ON"
3. Monitor the "HEADLAMP STATUS" Parameter on the Scantool.

Specification : HEADLAMP STATUS 'ON'

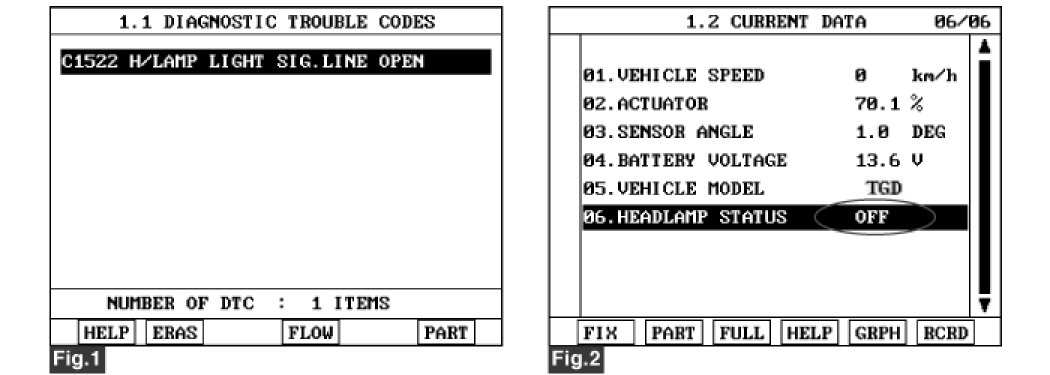

Fig.1) DTC C1522
Fig.2) The current data in abnormal state

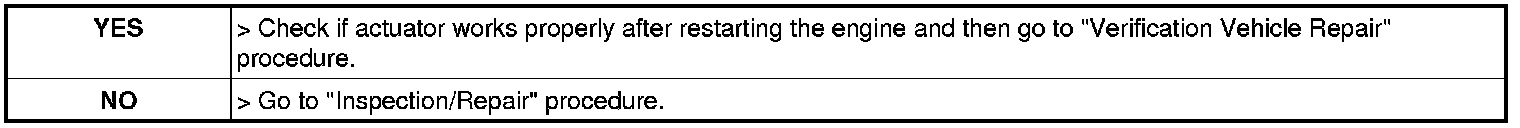

4. Is parameter displayed within the Specification?
