Component Inspection

Engine

Engine Control - P0264 Cylinder 2 Injector Circuit Low Component Inspection

Component Inspection

Check injector
1. IG "OFF" and disconnect injector connector.
2. Measure resistance between power and control terminals of injector connector. (Component side)

Specification : 11.4 - 12.6 Ohms (at 20 °C/ 68 °F)

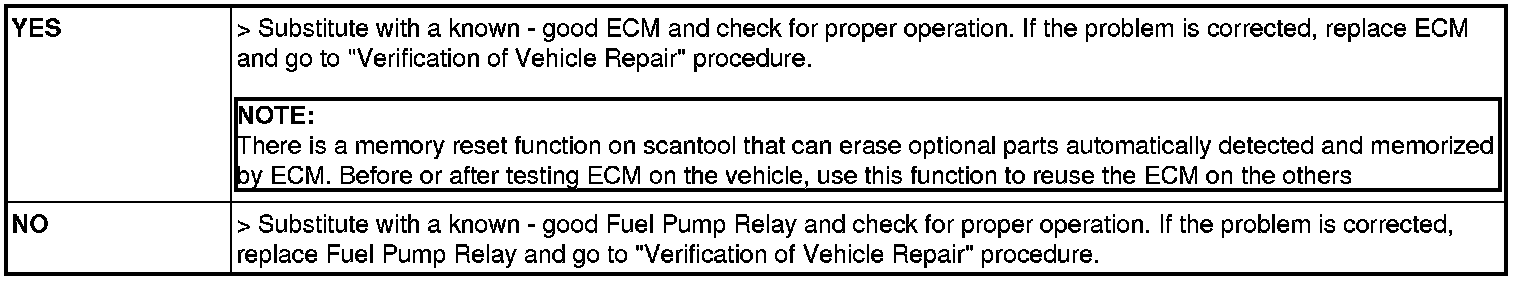

3. Is the measured resistance within specification?
