Exterior Moulding / Trim: Service and Repair

Replacement

Front Mud Guard And Wheel Guard Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

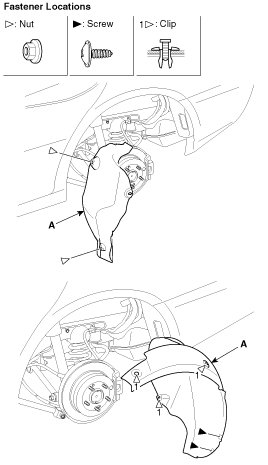

1. Remove the wheel guard (A).




2. Installation is the reverse of removal.

Rear Mud Guard And Wheel Guard Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

1. Remove the wheel guard (A).




2. Installation is the reverse of removal.

Side Garnish And Side Sill Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

1. Remove the side garnish (B).
2. Remove the door molding (A).
3. Replace any damaged clips.
4. Installation is the reverse of removal.





Trunk Lid Garnish Replacement

NOTE:
- Prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damaged.
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

1. Remove the trunk lid trim.

2. Disconnect the connector (A).




3. After loosening the mounting nuts, then remove the trunk lid garnish (A).




4. Installation is the reverse of removal.

NOTE:
- Put on gloves to protect your hands.
- Replace any damage clips.
