Brakes and Traction Control: Specifications

Specifications





O.D=Outer Diameter
I.D=Inner Diameter

NOTE:
ABS : Anti-lock Brake System
ESC : Electronic Stability Control

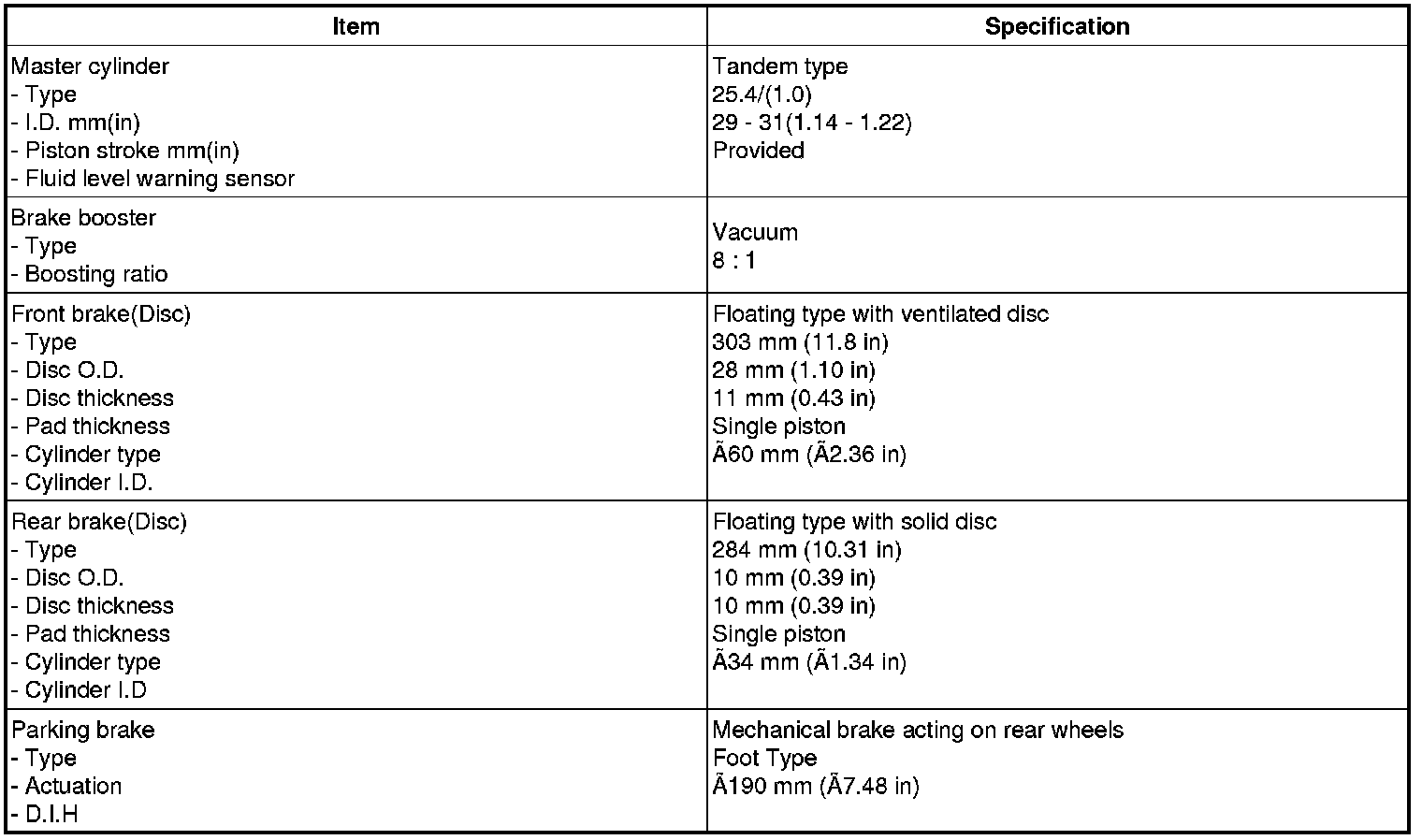

Specification (ABS)





Specification(ESC)

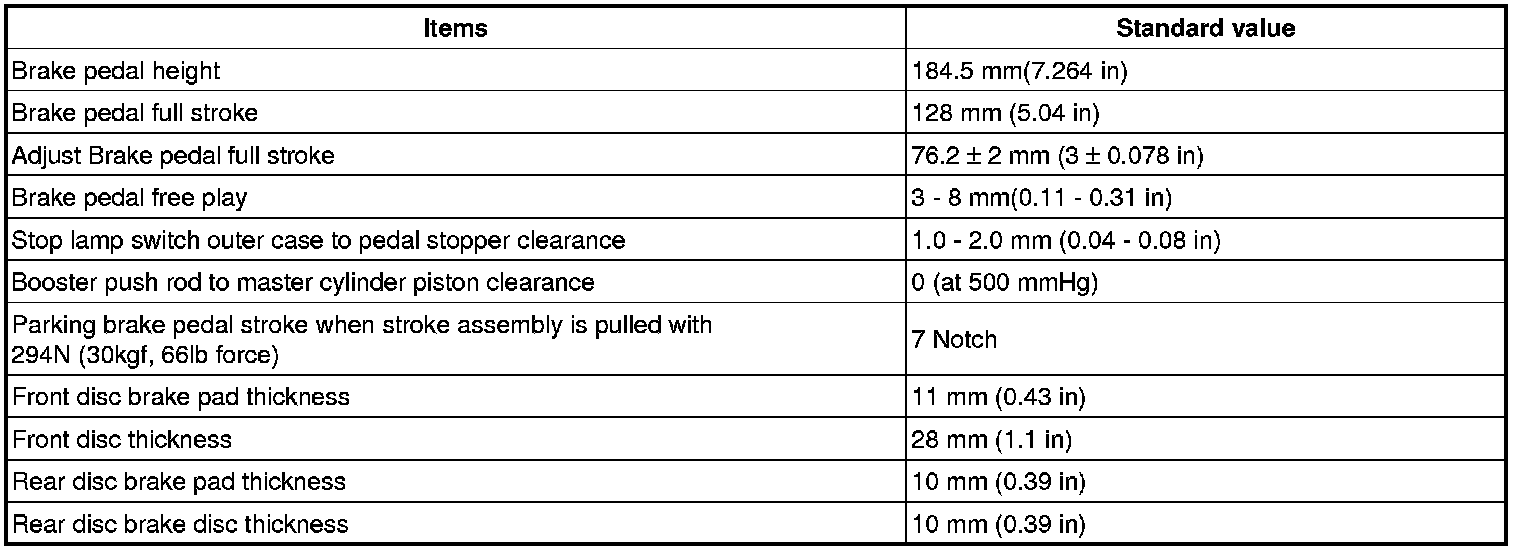

Service Standard





Tightening Torques
