Blower Motor Relay: Locations

Component Location

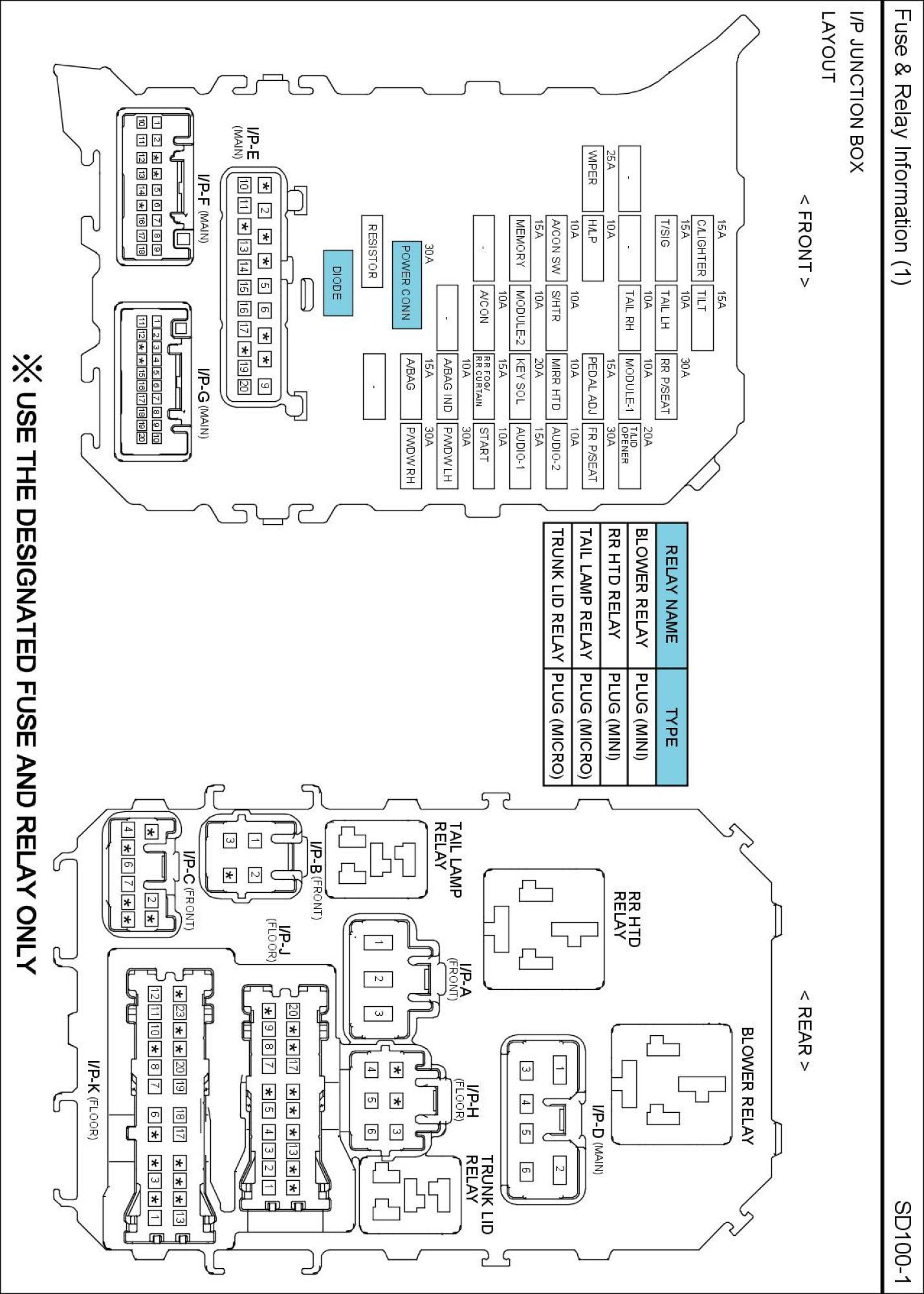

I/P Junction Box View:

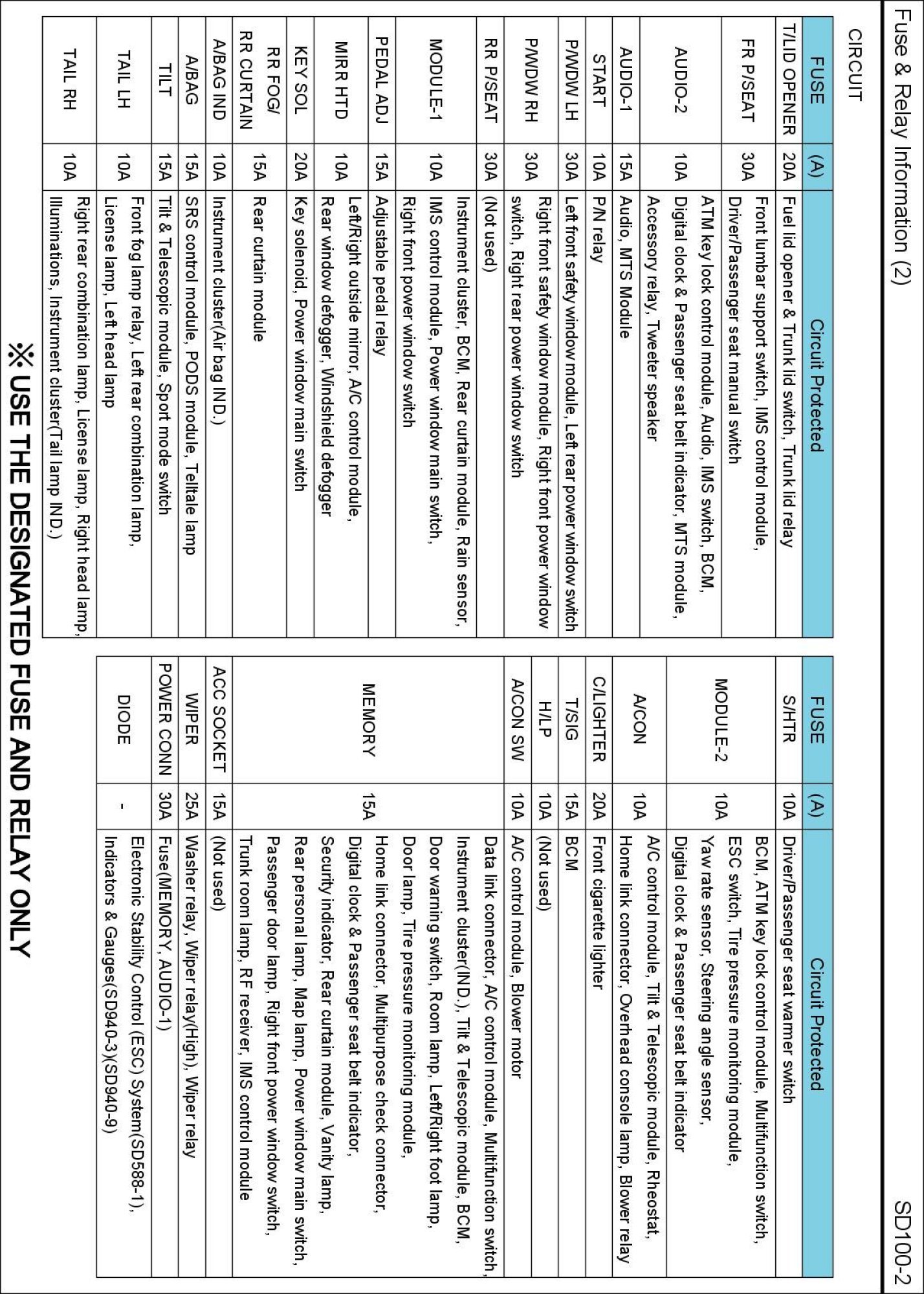

I/P Junction Box Circuit Details:
