Courtesy Lamp: Service and Repair

Inspection

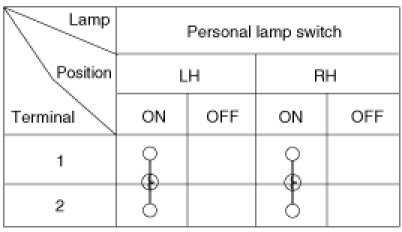

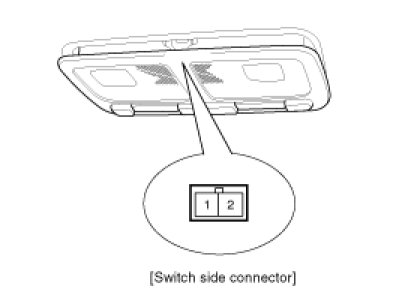

1. Inspect personal lamp switch operation.










Replacement

1. Disconnect the negative (-) battery terminal.

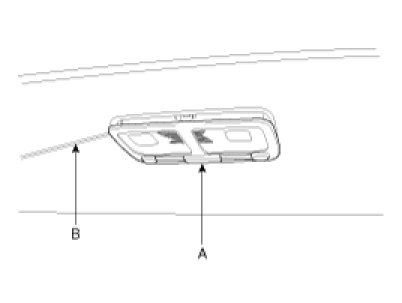

2. Remove the room lamp assembly (A) by using the scraper (B) and then disconnect the 2P connector.




3. Replace the bulb after removing lamp lens only.
4. Installation is the reverse of removal.
