Dome Lamp: Service and Repair

Inspection

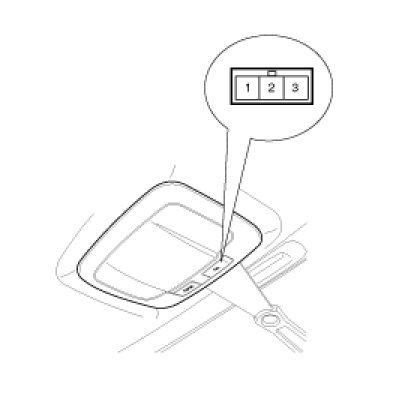

Remove the room lamp assembly then check for continuity between terminals.










Replacement

1. Disconnect the negative (-) battery terminal.

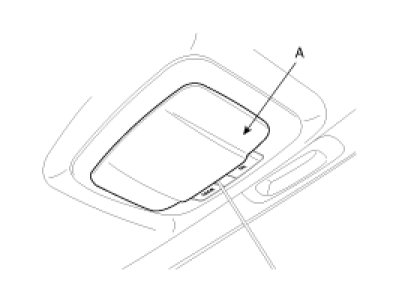

2. Detach the lamp lens (A) from the room lamp with a flat-tip screwdriver then replace the bulb.

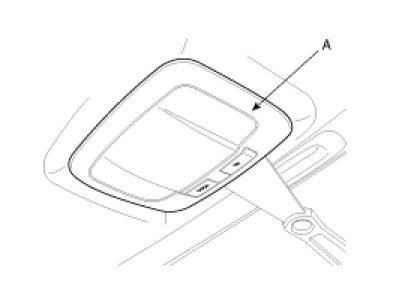

3. Remove the room lamp assembly by using the scraper and then disconnect the 3P connector.




4. Installation is the reverse of removal.
