Home
>>
Hyundai
>>
2011
>>
Azera V6-3.8L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

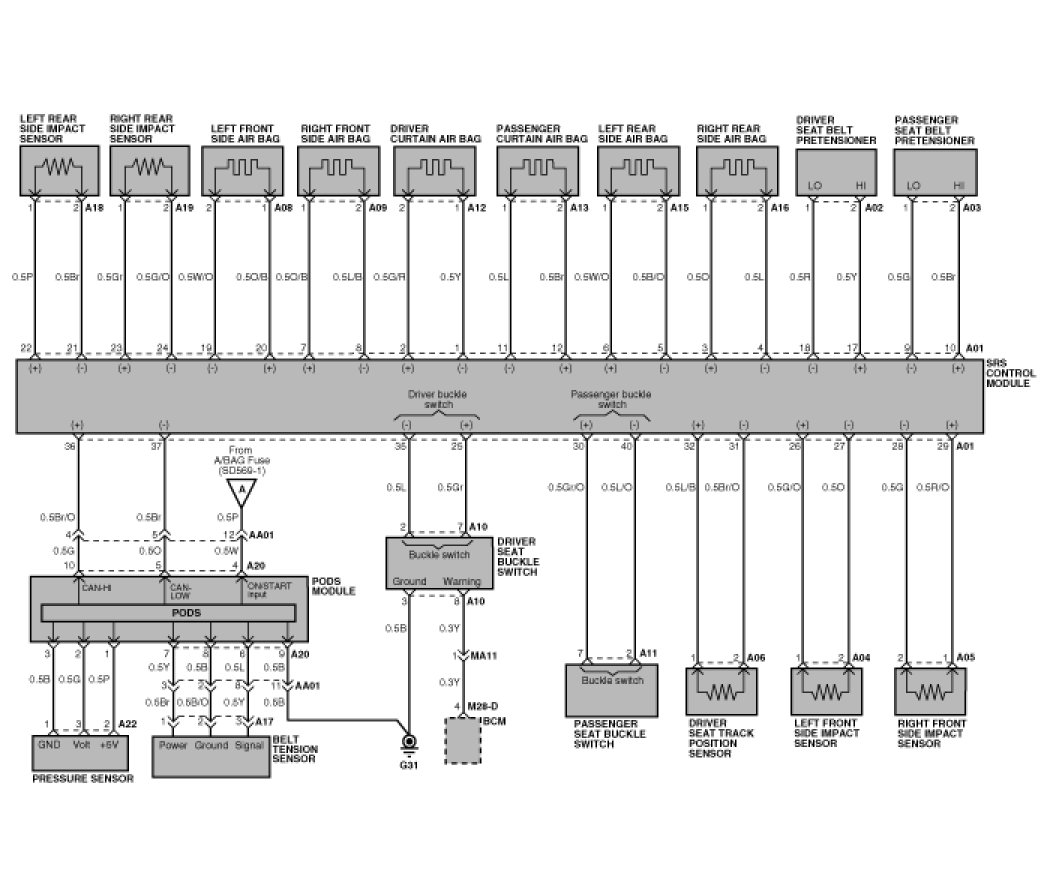

Circuit Diagram

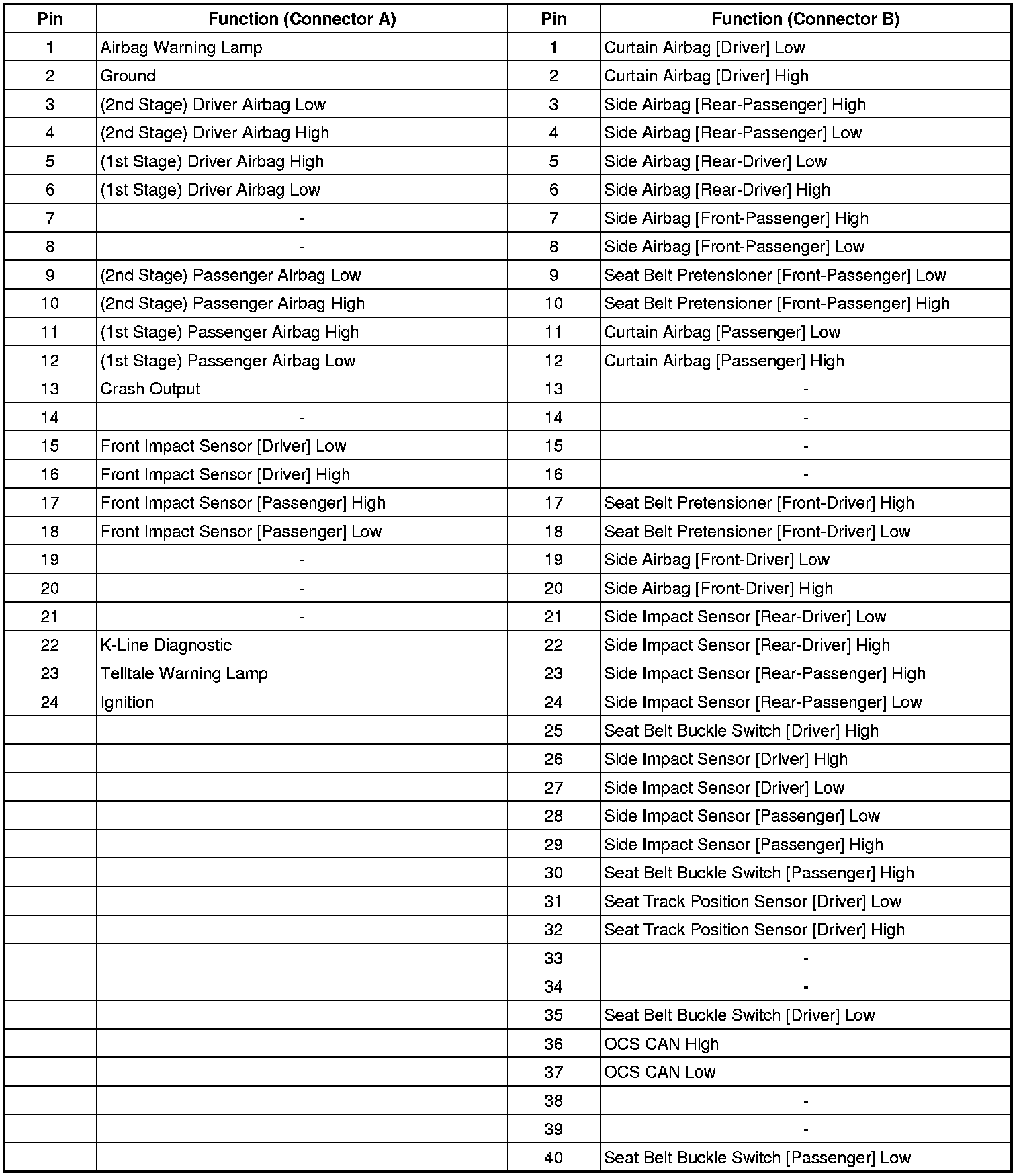

SRSCM Connector Terminal

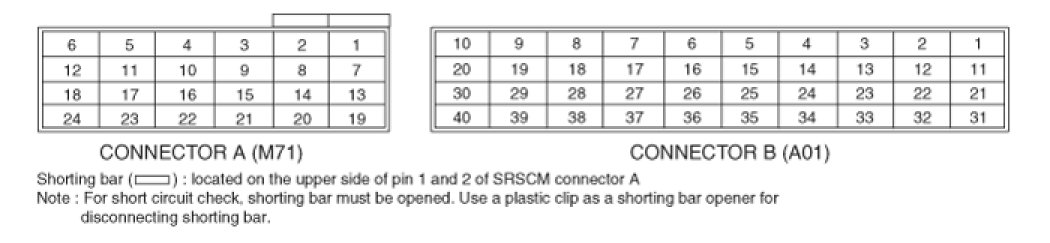

Harness Connector
