Exhaust Manifold
Exhaust Manifold
Exhaust Manifold

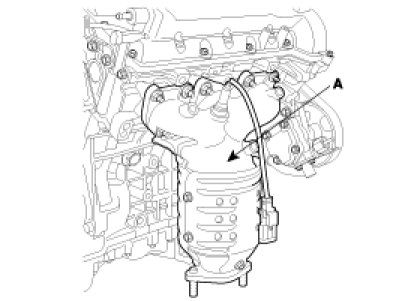

Remove the LH exhaust manifold (A).
Tightening torque
39.2 - 44.1 N.m (4.0 - 4.5 kgf.m, 28.9 - 32.5 lb-ft)
