Suspension: Specifications

Specifications

Front Suspension System

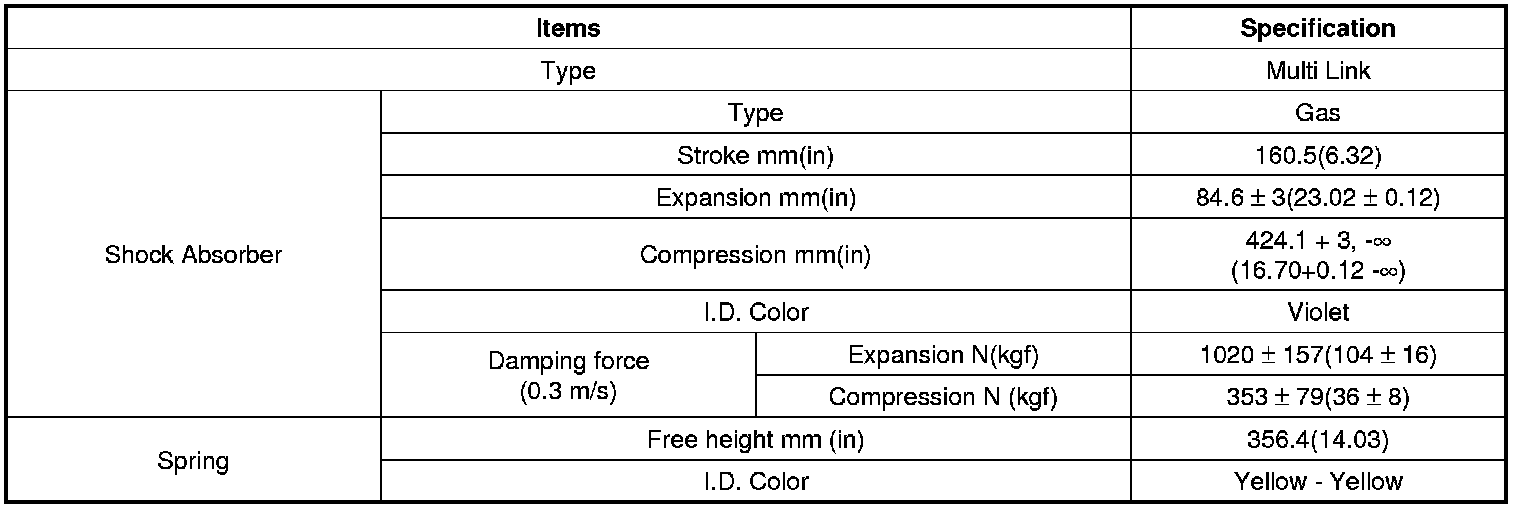

Rear Suspension System

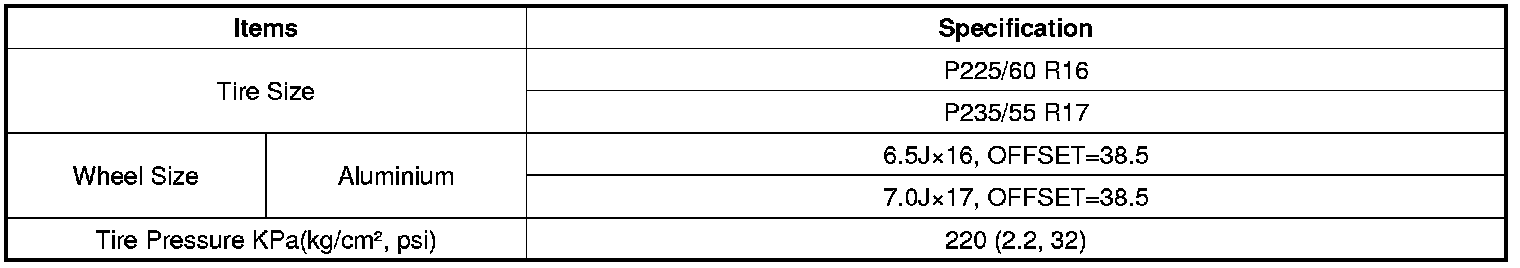

Wheels And Tires

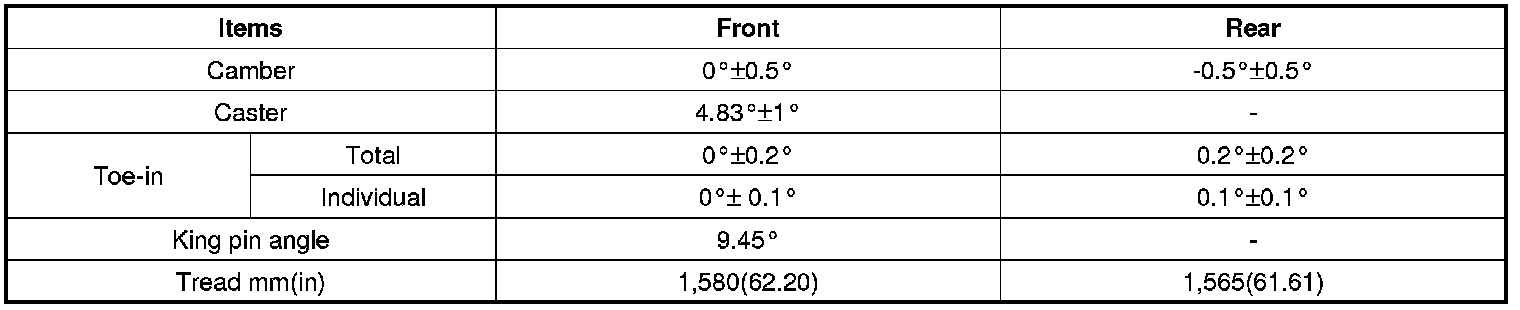

Wheel Alignment

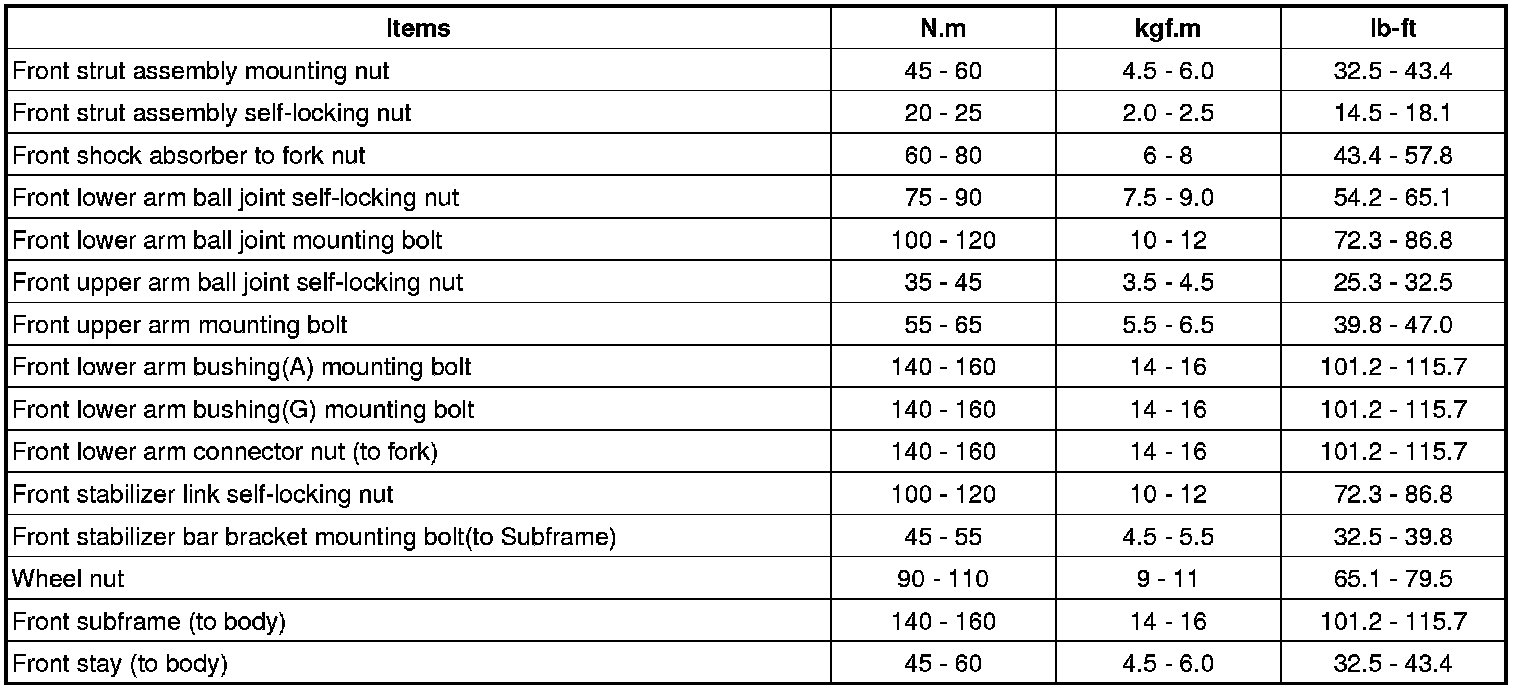

Tightening Torques

Front Suspension





Rear Suspension






CAUTION:
Replace the self-locking nuts with new ones after removal.

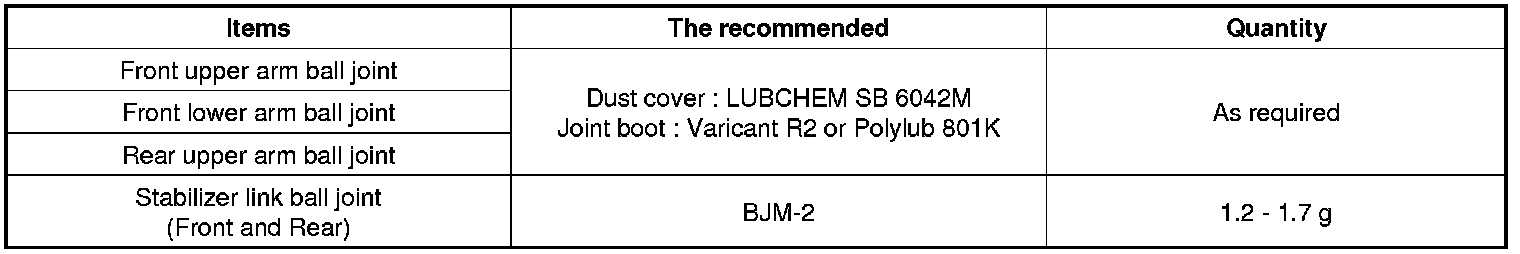

Lubricants
