B1302 Gearbox Signal Fault-CAN Signal - General Information

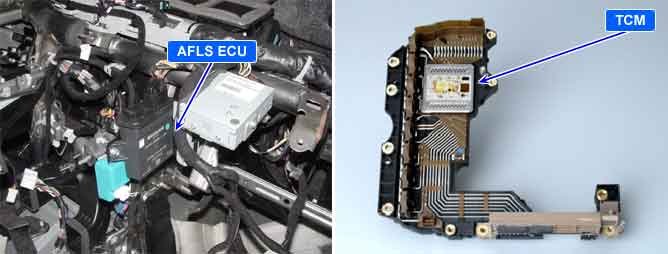

Component Location





General Description

Several control units are applied to electronically controlled vehicles. These units perform each control with informations from various sensors. Thus, sharing signal information from sensors is needed, so CAN communication type whose communication speed is high and insensitive to electrical noise by spark generation is adopted to controlling power-train (engine, automatic transaxle, ABS, TCS, ECS) AFLS ECU is input some informations (engine speed, steering angle sensor's signal, vehicle speed) in order to maintain optimum headlamp condition through CAN communication. AFLS ECU determine working or not to headlamp in according with gear position signal. (not working in Reverse)

DTC Description

AFLS ECU set this code If input value (gear position signal) is out of available range.

DTC Detecting Condition





Diagnostic Circuit Diagram
