Component Inspection

Pre-safe Seat Belt-Right
C1107 TCS1 message timeout - Component Inspection

Component inspection

1. IG OFF and ON
2. Connect scantool to Data Link Connector (DLC).
3. Select "Diagnostic Trouble Codes (DTCs)"mode and monitor "DTC Status" parameter.
4. Clear recorded DTC using Scan tool.

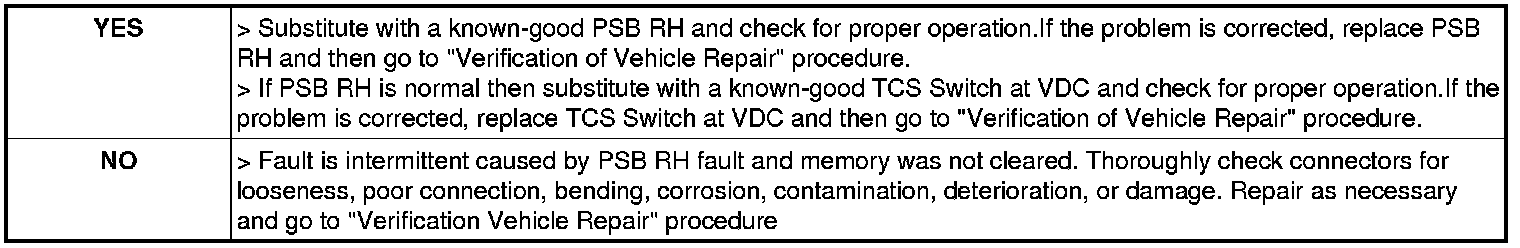

5. Is the DTC present?
