Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2011
>>
Equus V8-4.6L
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Circuit Diagrams

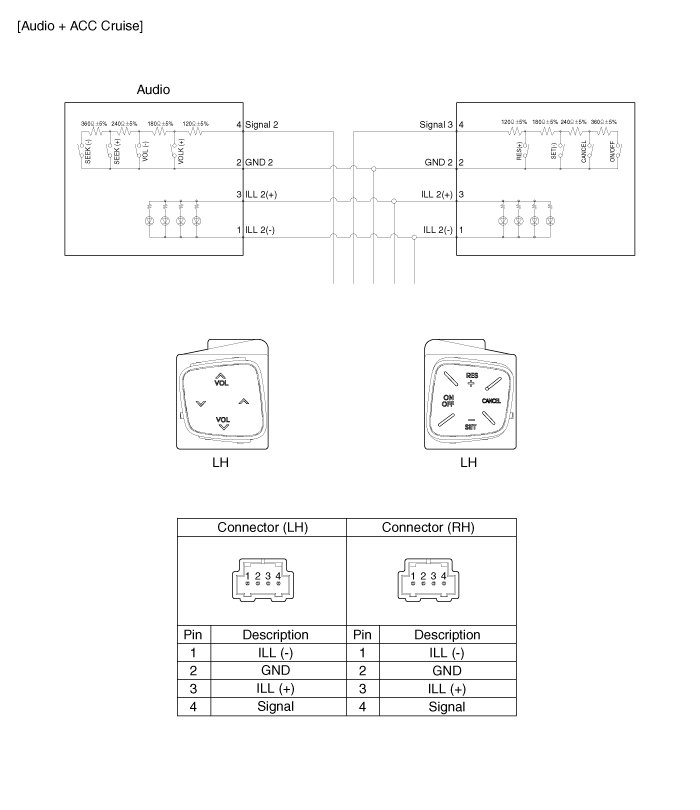

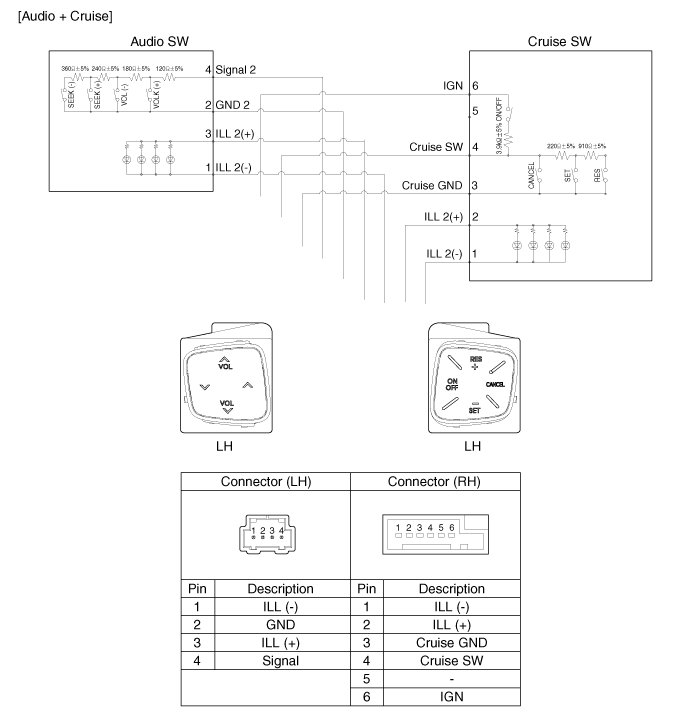

Remote Control
Switch
