Instrument Cluster / Carrier
Instrument Cluster / Carrier

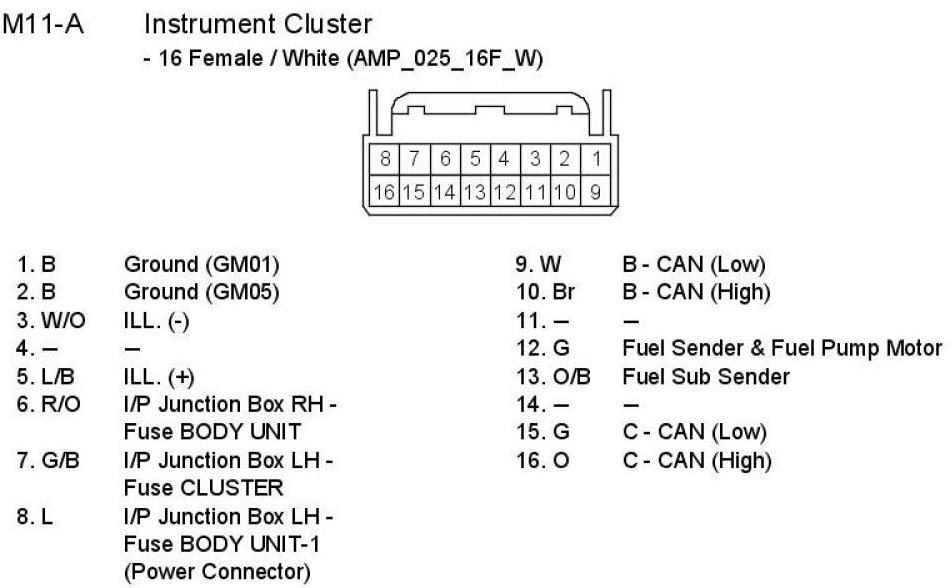

M11-A Instrument Cluster:

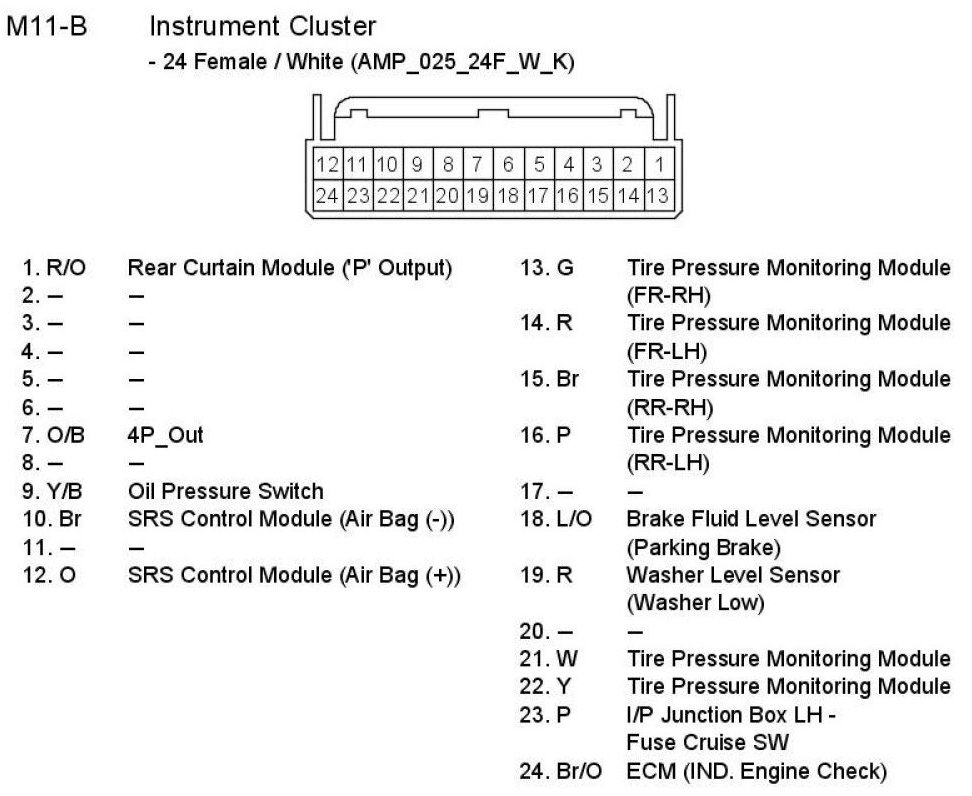

M11-B Instrument Cluster:
