Charging System

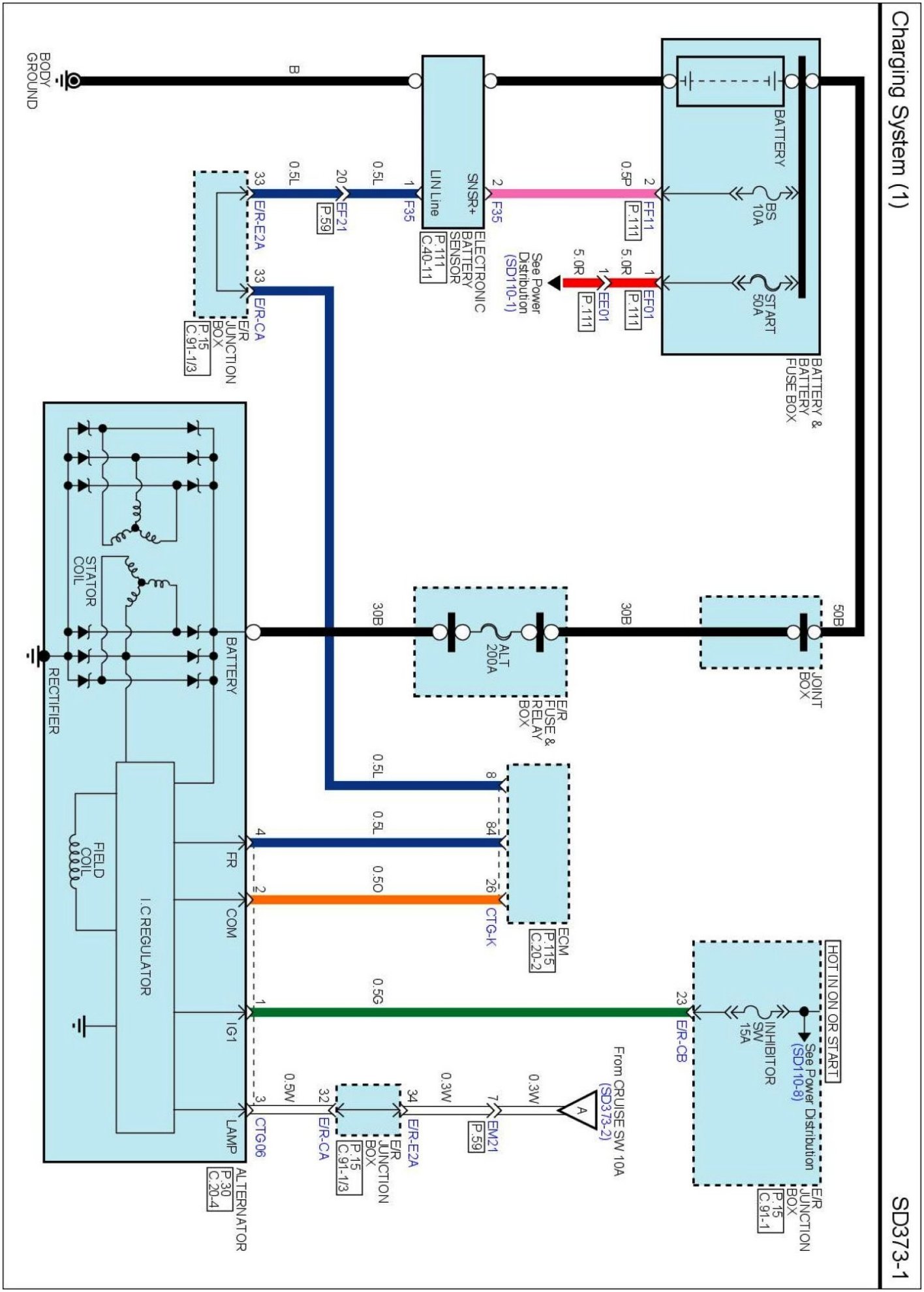

SD373-1 Charging System (1):

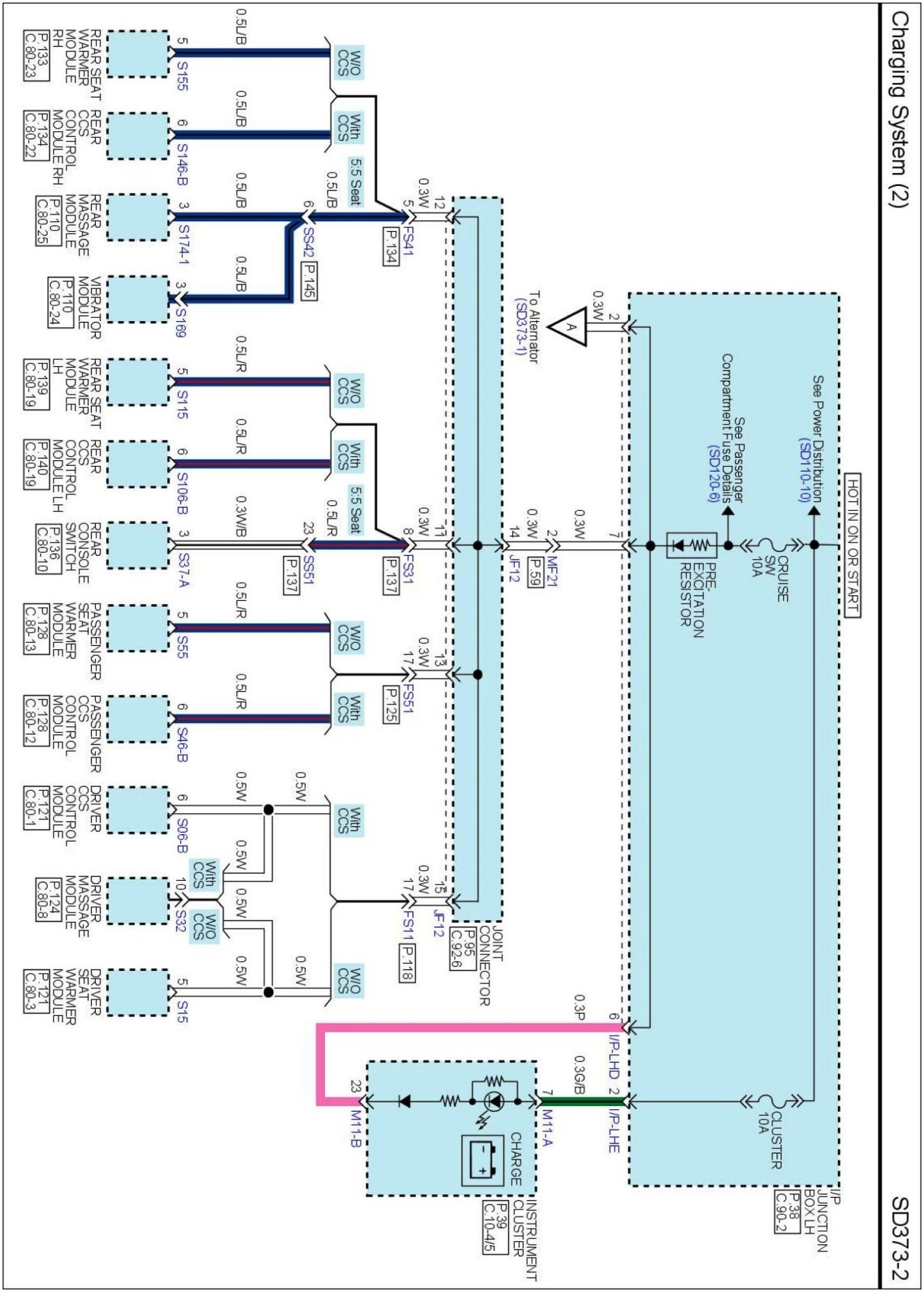

SD373-2 Charging System (2):

Diagrams: Other diagrams referred to by SD number (i.e SD130-4, etc.)
within these diagrams can be found at Diagrams by Number. Diagram By Number

Locations: Location photographs (references to PHOTOS) referred to within
these diagrams can be found via the photo number at the vehicle level under
Locations by Photo Number. Locations By Photo Number
