Power Locks

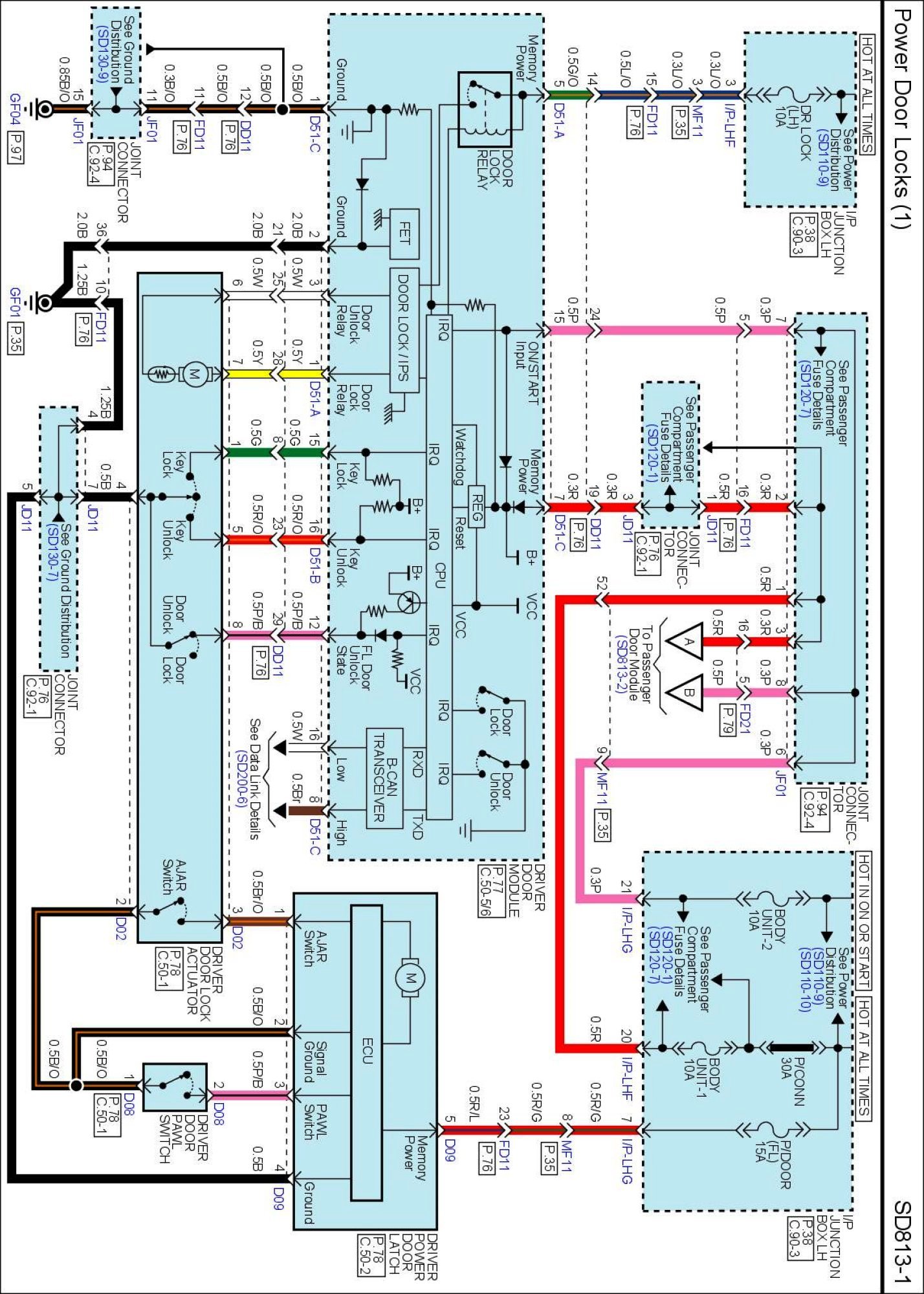

SD813-1 Power Door Locks (1):

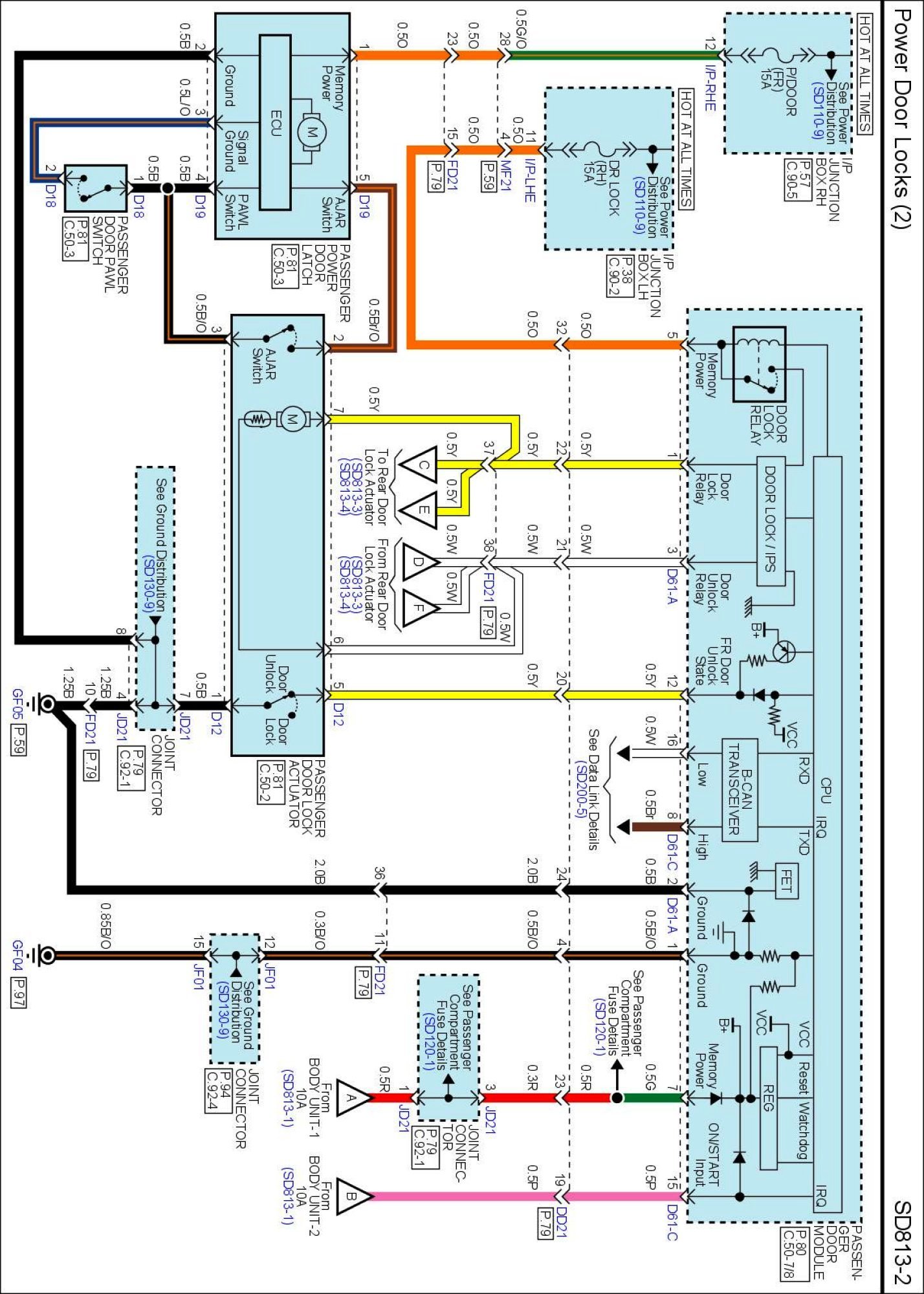

SD813-2 Power Door Locks (2):

SD813-3 Power Door Locks (3):

SD813-4 Power Door Locks (4):

Diagrams: Other diagrams referred to by SD number (i.e SD130-4, etc.)
within these diagrams can be found at Diagrams by Number. Diagram By Number

Locations: Location photographs (references to PHOTOS) referred to within
these diagrams can be found via the photo number at the vehicle level under
Locations by Photo Number. Locations By Photo Number
