Trunk Lamp

SD929-1 Courtesy & Trunk Lamps (1):

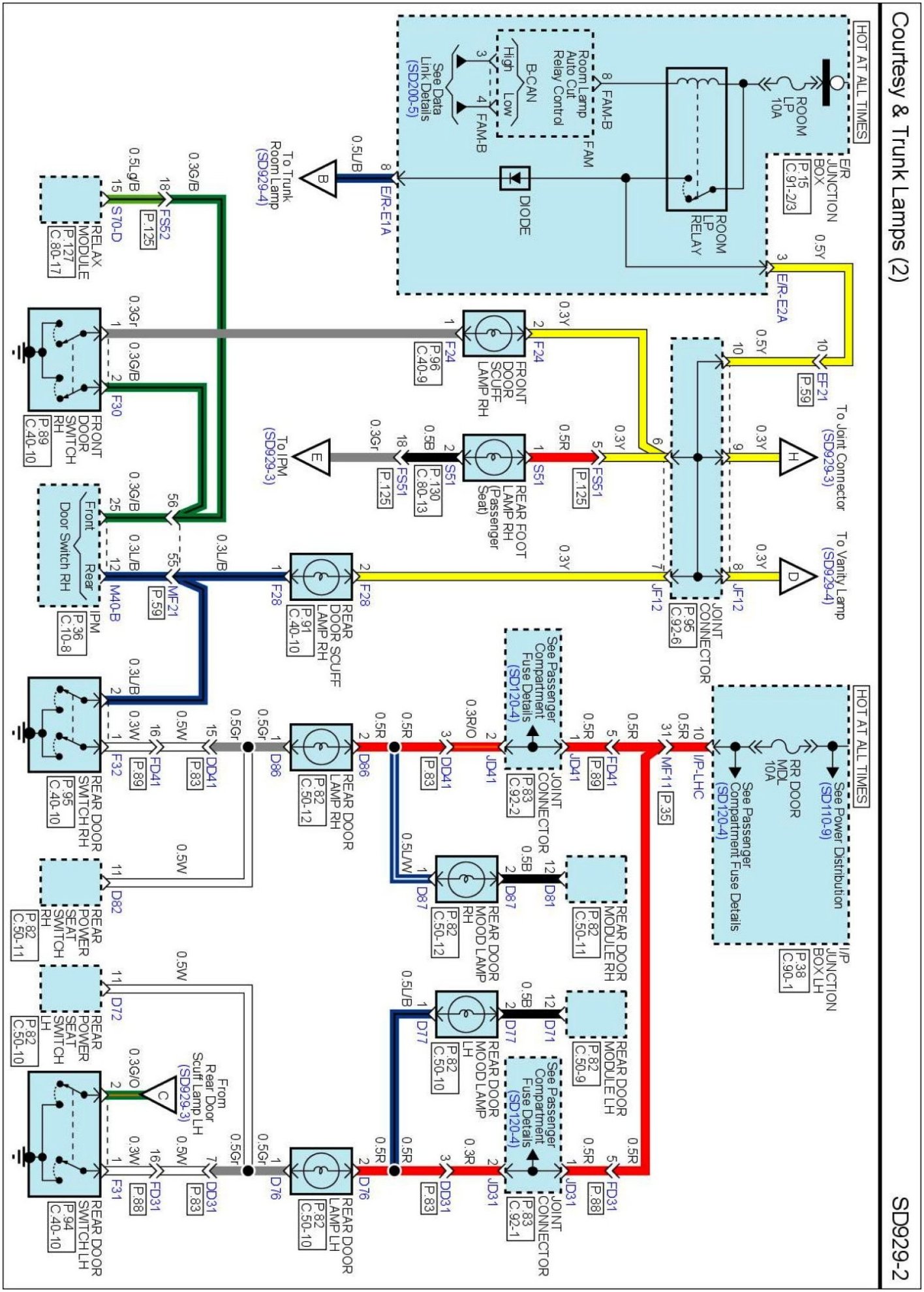

SD929-2 Courtesy & Trunk Lamps (2):

SD929-3 Courtesy & Trunk Lamps (3):

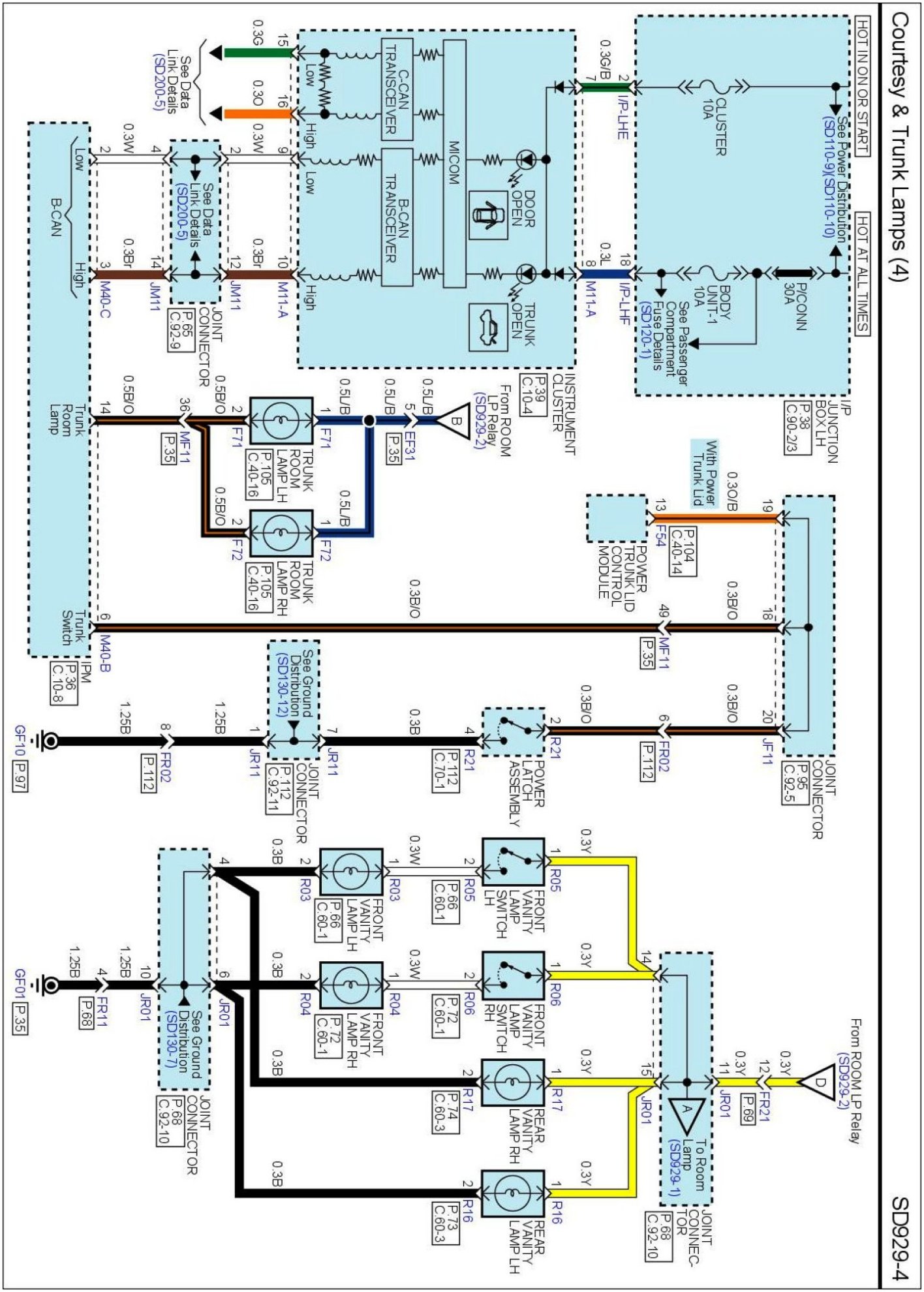

SD929-4 Courtesy & Trunk Lamps (4):

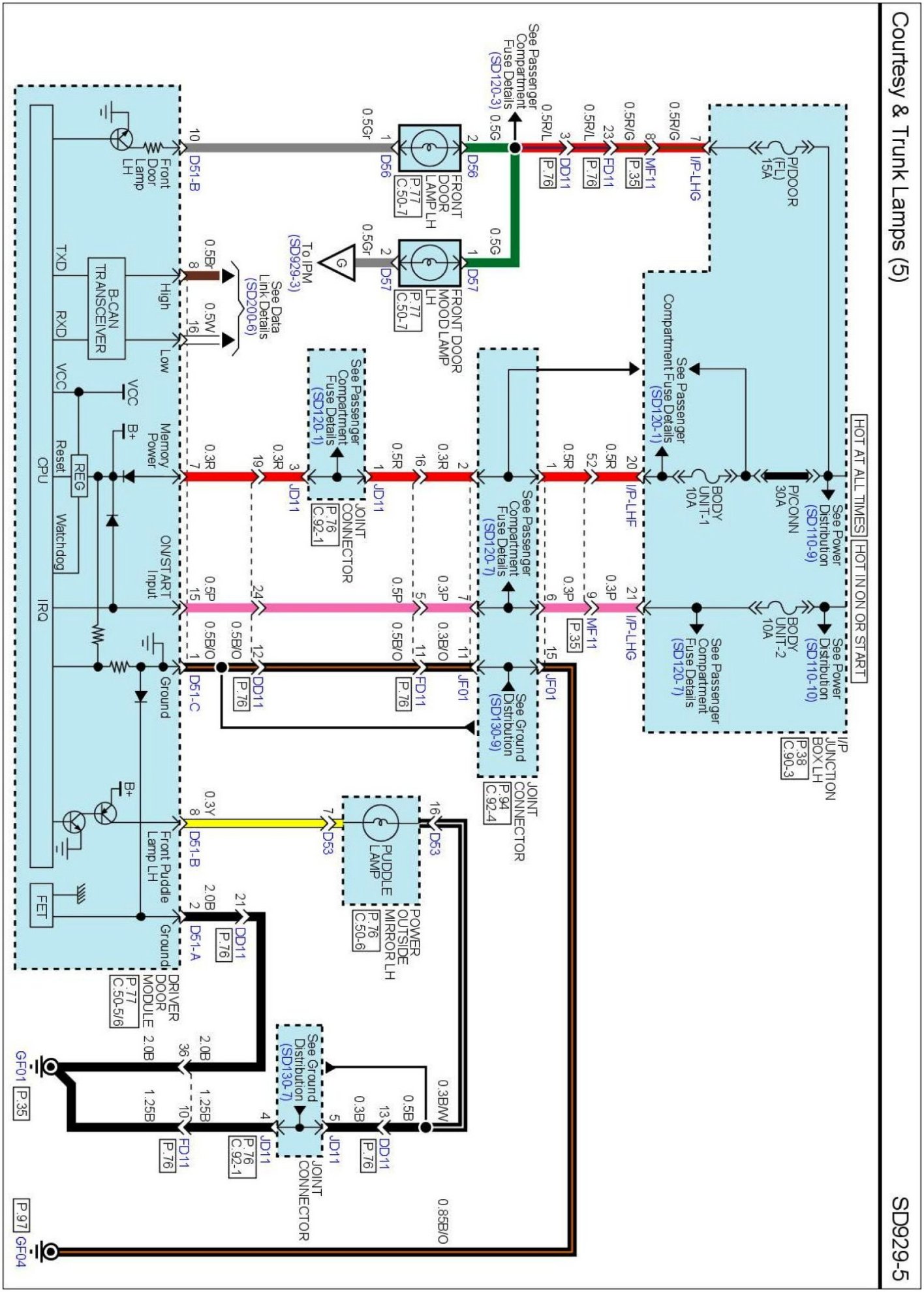

SD929-5 Courtesy & Trunk Lamps (5):

SD929-6 Courtesy & Trunk Lamps (6):

Diagrams: Other diagrams referred to by SD number (i.e SD130-4, etc.)
within these diagrams can be found at Diagrams by Number. Diagram By Number

Locations: Location photographs (references to PHOTOS) referred to within
these diagrams can be found via the photo number at the vehicle level under
Locations by Photo Number. Locations By Photo Number
