Center Mounted Brake Lamp: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the rear package trim (A). .

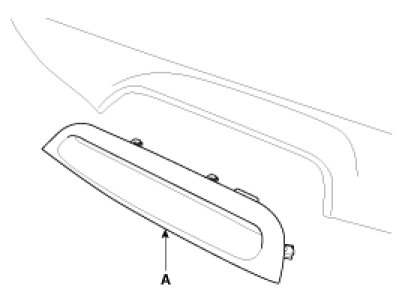

3. Remove the high mounted stop lamp (A) after removing screws.






Installation

1. Install the high mounted stop lamp to the rear package trim.
2. Install the rear package trim.
