Home >> Hyundai >> 2011 >> Equus V8-4.6L >> Repair and Diagnosis >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams

Multiple Junction Connector: Diagrams

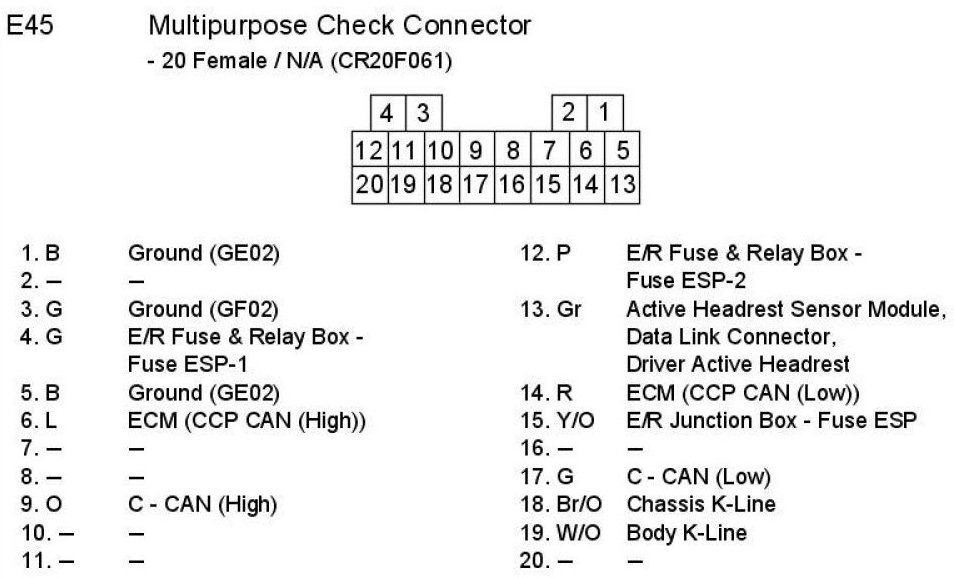

E45 Multipurpose Check Connector:
