Electronic Throttle Actuator





Specification

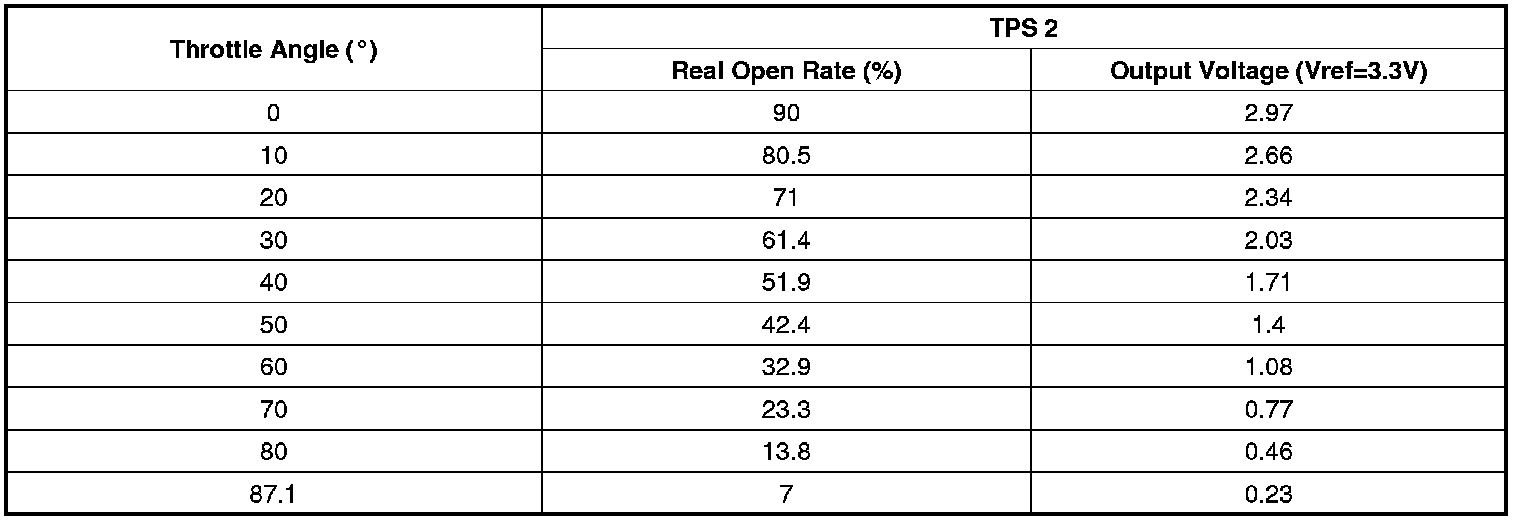

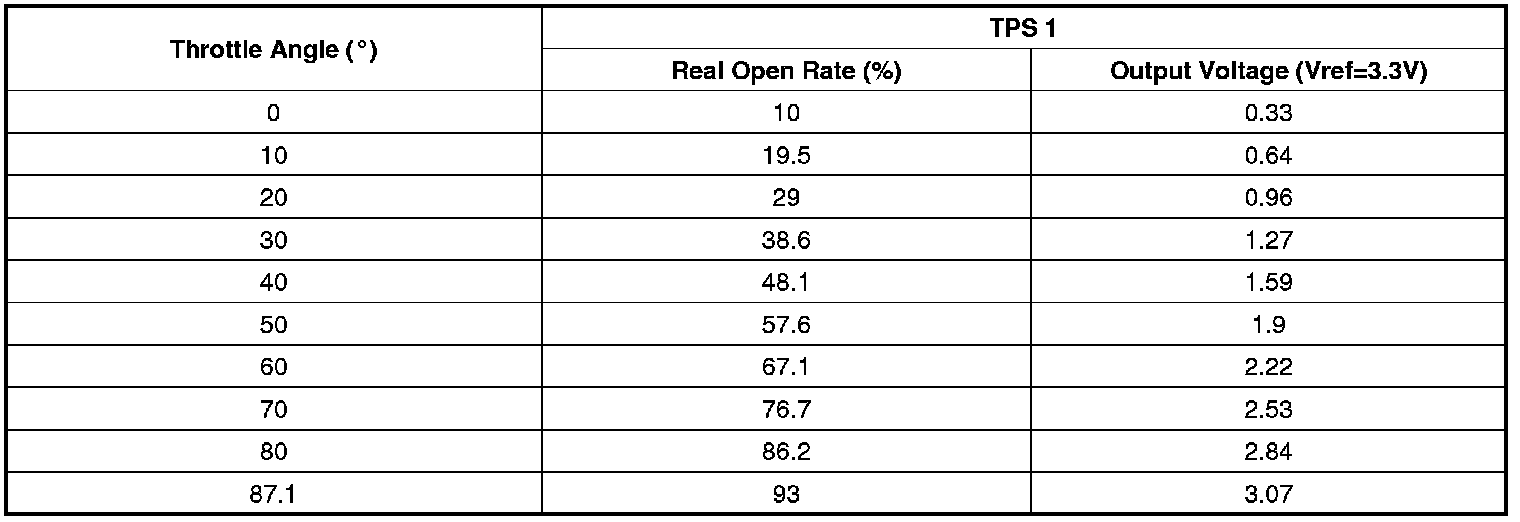

[Throttle position sensor]
























[ETC motor]
