Campaign TF1 - Fuel Filler Door Repair

NUMBER: 11-01-011

MODEL(S): EQUUS (VI)

GROUP: BODY

DATE: APRIL, 2011

SUBJECT
FUEL FILLER DOOR REPAIR (SERVICE CAMPAIGN JF1)

Important





Description:
Some Equus fuel filler doors may not open.

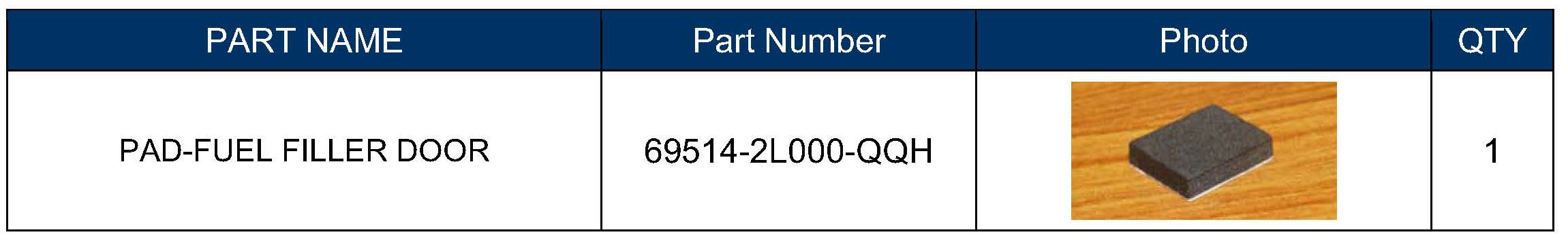

Parts Information:

Warranty Information:

Service Procedure:

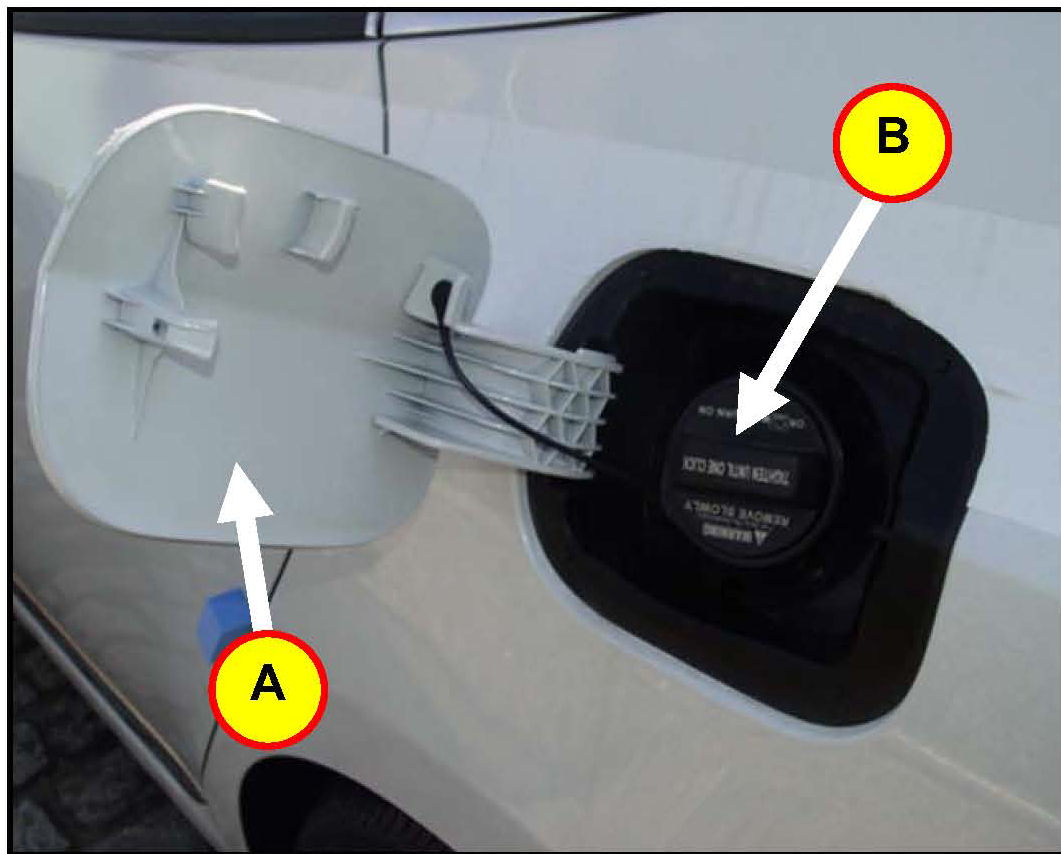

1. Push the fuel tiller door release button on the driver's door and open the fuel filler door (A). Remove the fuel filler cap (B) and place on the fuel cap holder.

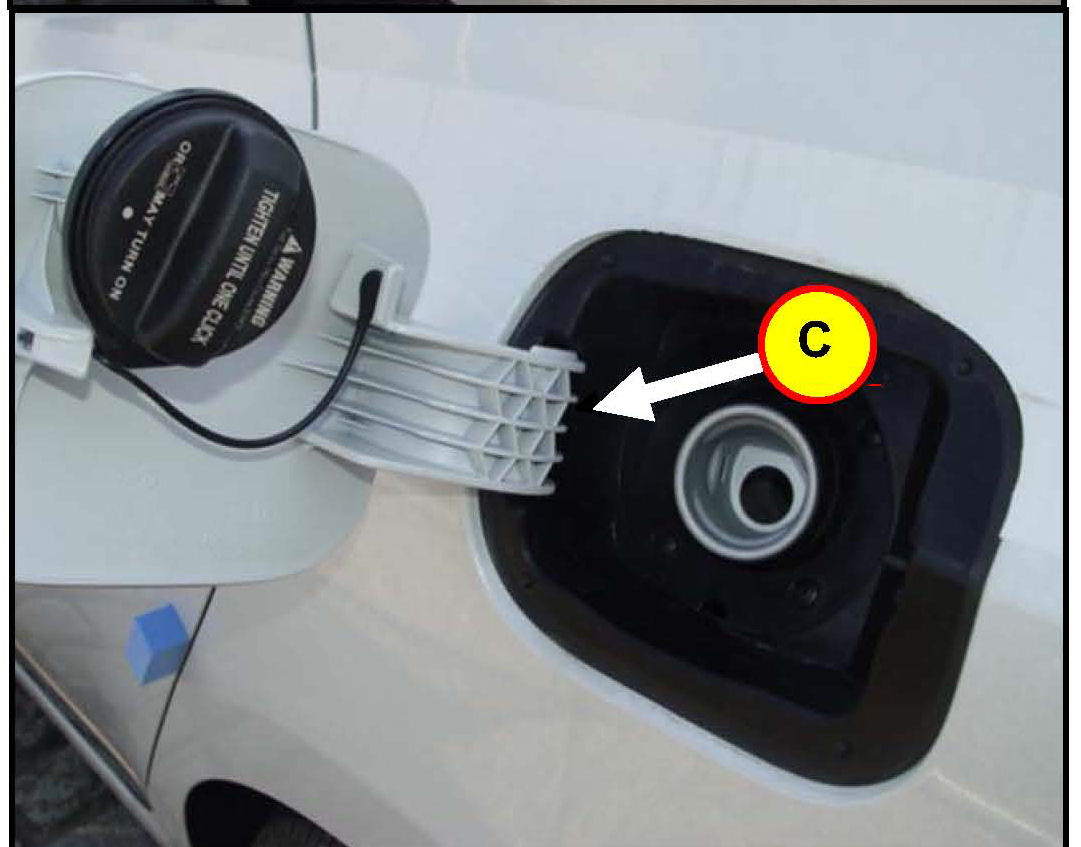

2. Locate the fuel filler door spring (C).

3. Remove the pad cover and then attach the pad (D) to the outside of the fuel filler door spring (E).

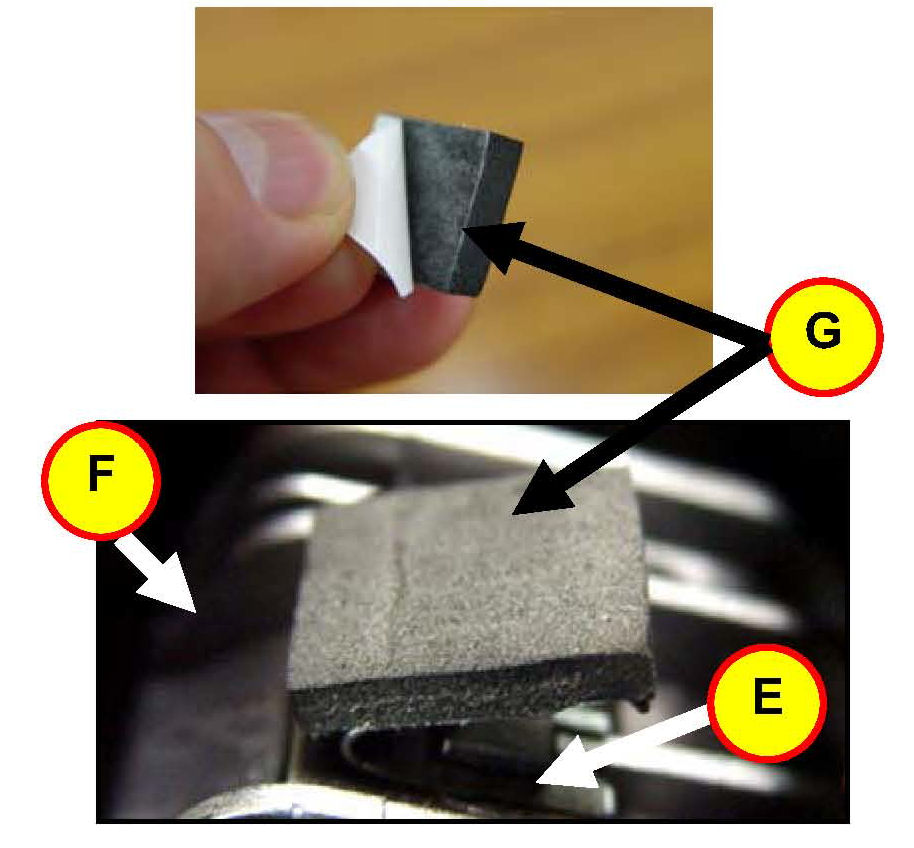

4. - E: Fuel filler door spring

- F: Fuel filler door

- G: Pad

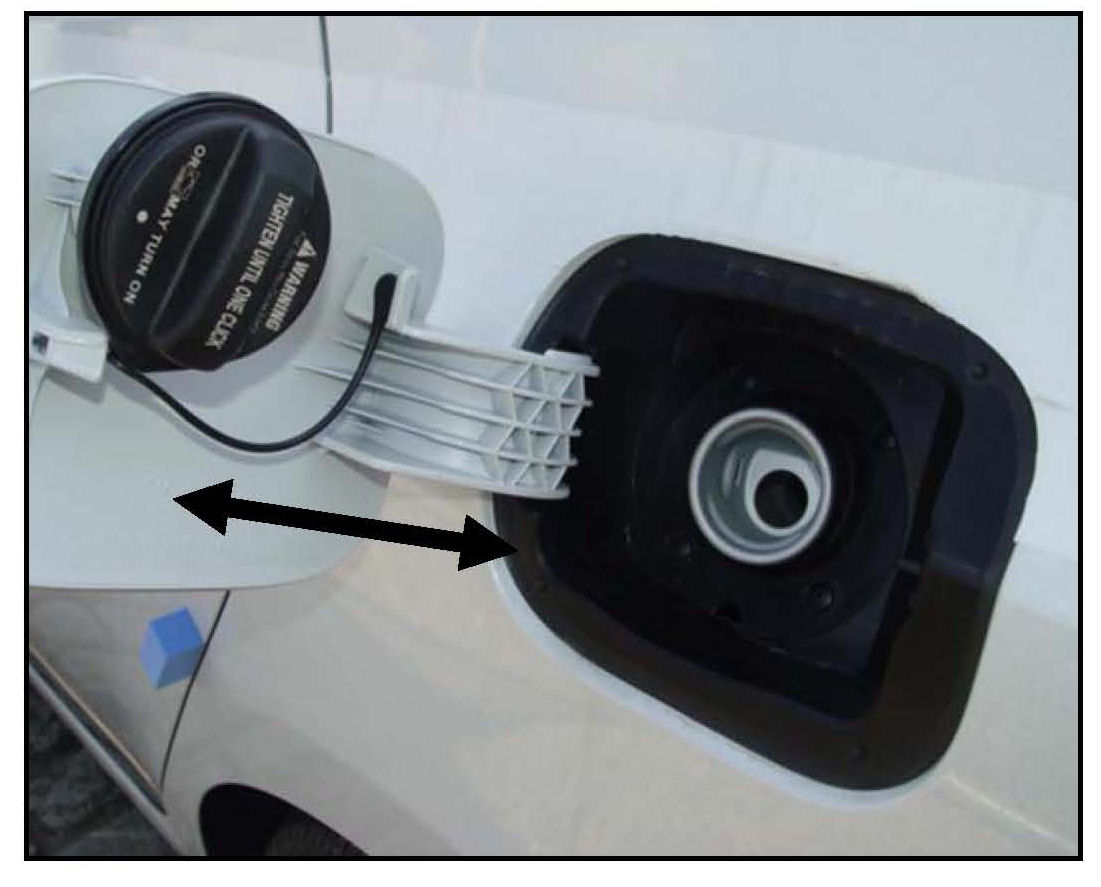

5. Close the fuel filler door and open it 2-4 times confirming the fuel filler door opens and closes properly.
