B1303 Accelerator Pedal Position Signal Error - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. IG KEY "ON" & ENG "OFF"
3. Monitor the "TPS" parameters on the scantool.(ECM's current data)

Specification : APS1 : 0 V ~ 5 V (APS2: 0 V ~ 2.5 V)




FIG 1) ENG "ON"(ECM's current data)

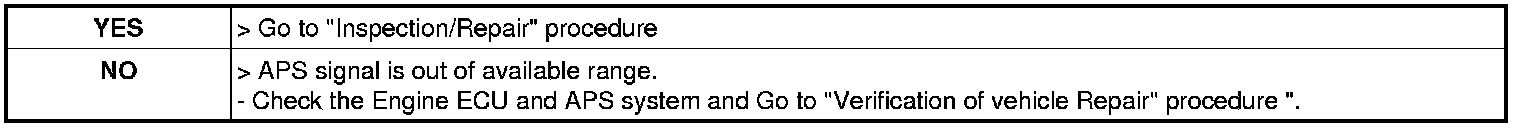

4. Is parameter displayed within specifications?
