Scantool Diagnostics

Electronic Stability Control

C1274 Longitudinal G Sensor-Electrical - Scantool Diagnostics

Monitor Scantool Data

1. Stop the vehicle on the ground.
2. IG "ON"
3. Check the service data related to "Longitudinal G sensor" on the scantool.

Specification : Approx. ± 0.01 G




Fig.1) Normal service data at IG "ON"

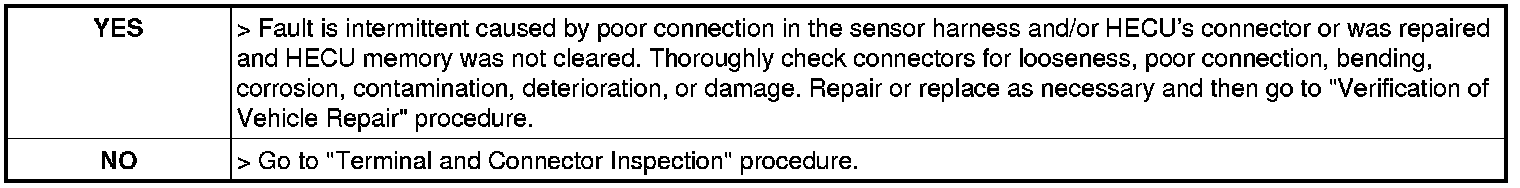

4. Is the service data normal?
