P0276 Cylinder 6 Injector Circuit Low - Component Inspection

Component Inspection

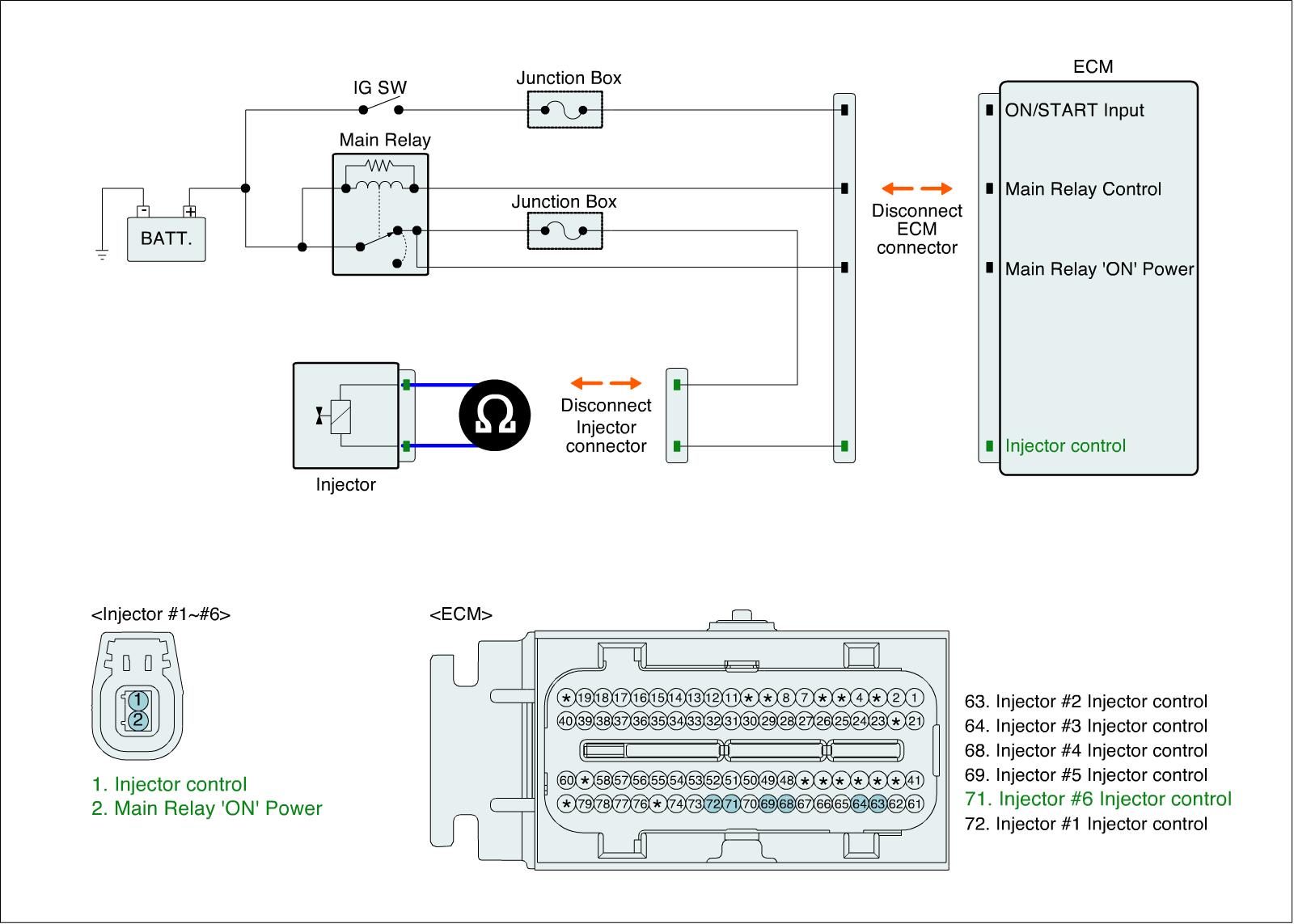

Check injector
1. IG "OFF" and disconnect injector connector.
2. Measure resistance between power and control terminals of injector connector.(Component side)

Specification : 11.4 - 12.6 Ohms (at 20 °C/ 68 °F)




3. Is the measured resistance within specification?
