P0766 Shift Control Solenoid Valve 'D' Performance or Stuck Off (S4) - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool with data link connector (DLC)
2. Engine "ON".
3. Monitor the "SCSV "D"(S4)" parameter on the scan tool
4. Shift gear at each position.

Specification :

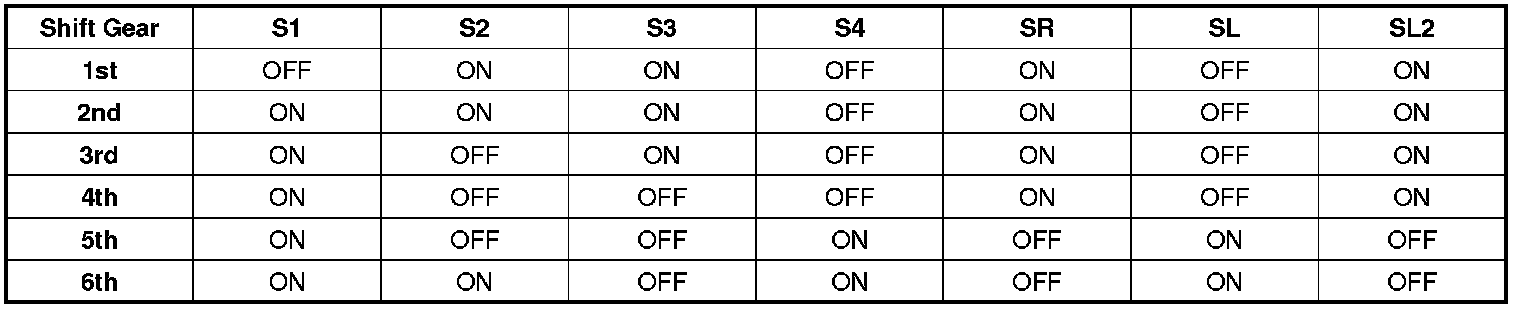

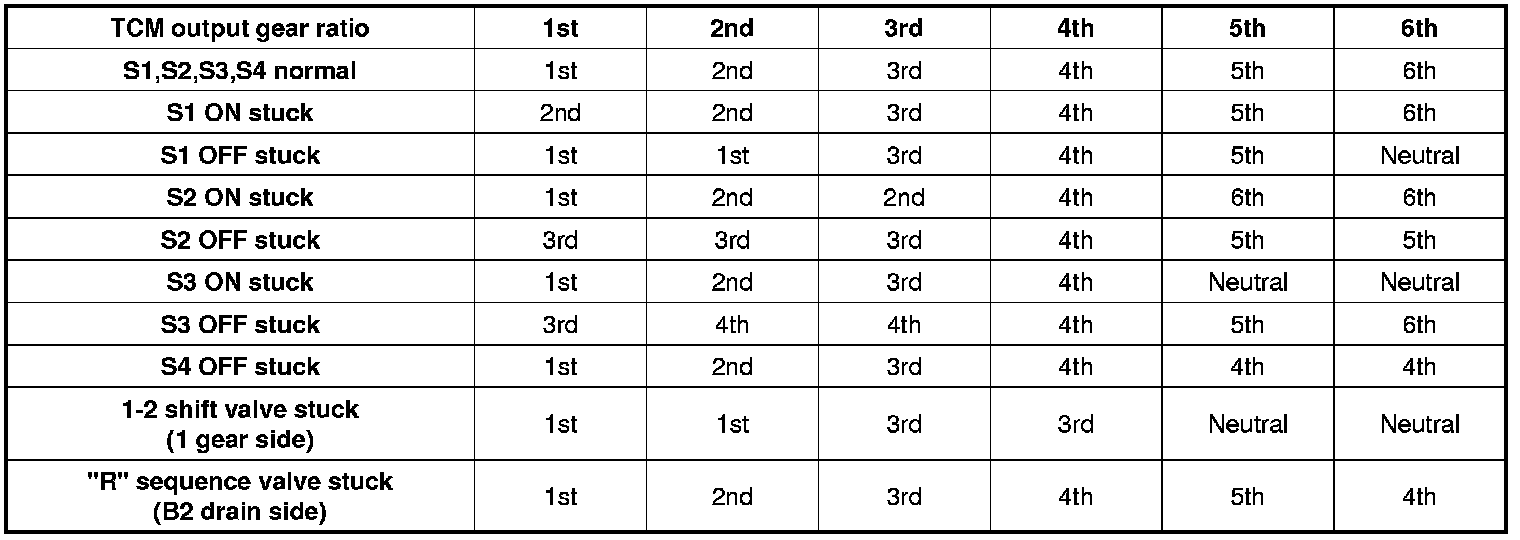

Solenoid Valve Operation Table





Normal





Engine Brake

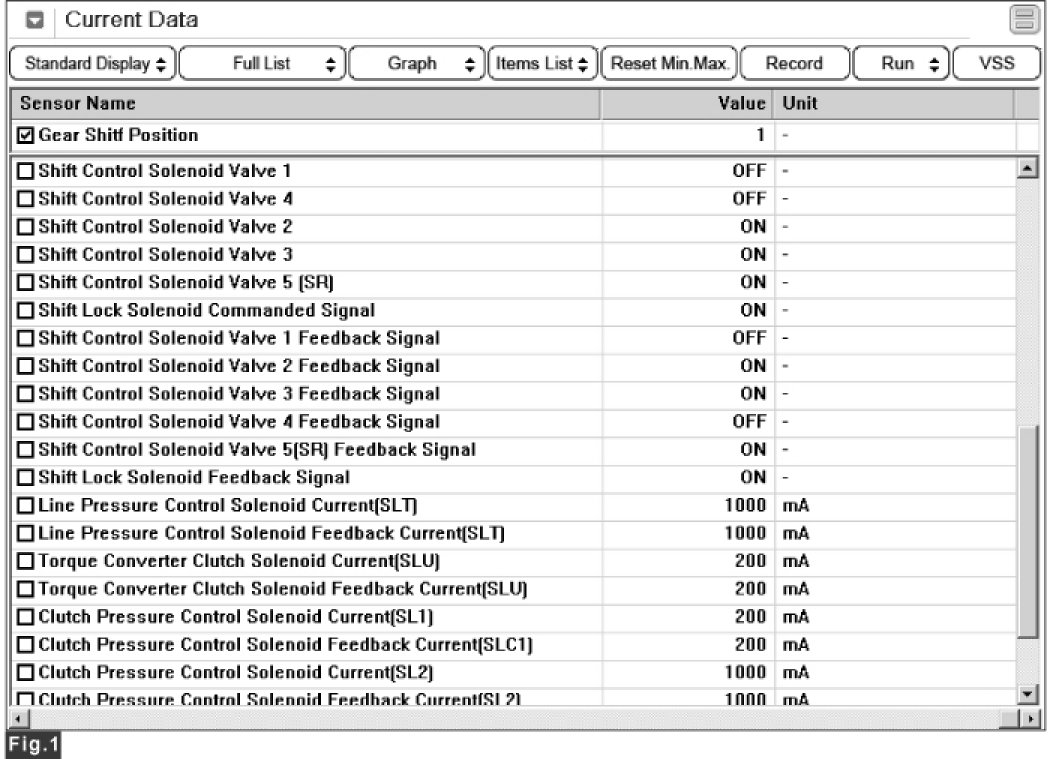

Fig 1) D Range-1st gear
Fig 2) D Range-2nd gear
Fig 3) Sports mode -1st gear
Fig 4) Sports mode -2nd gear

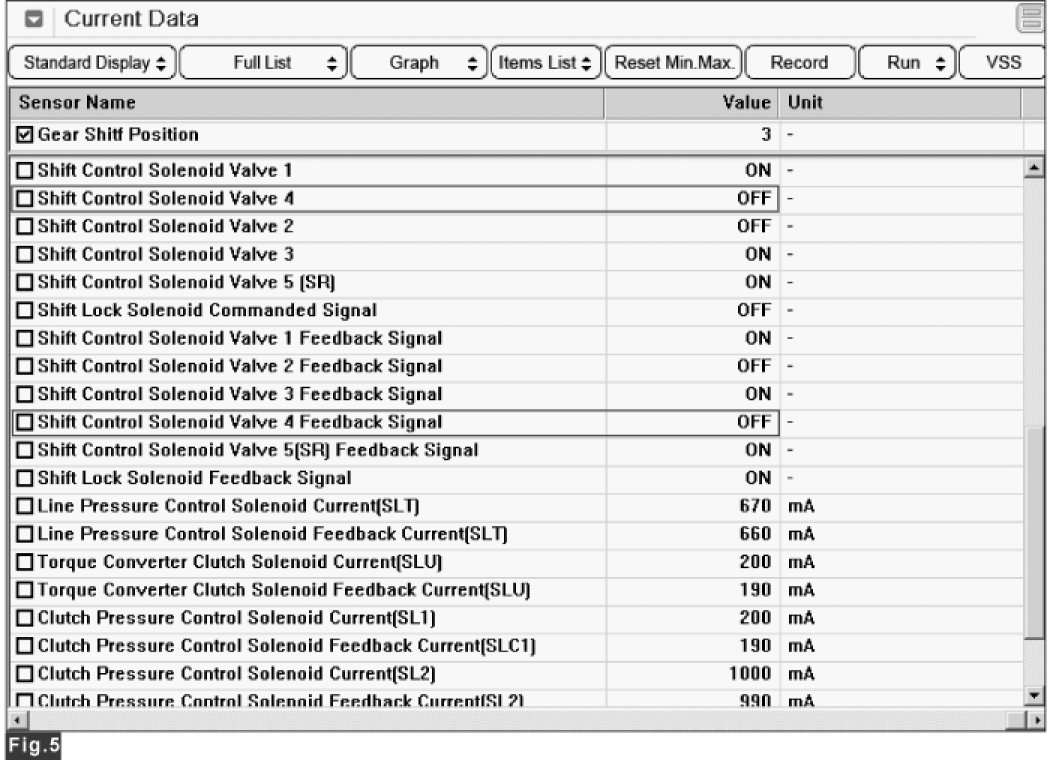

Fig 5) Sports mode -3rd gear

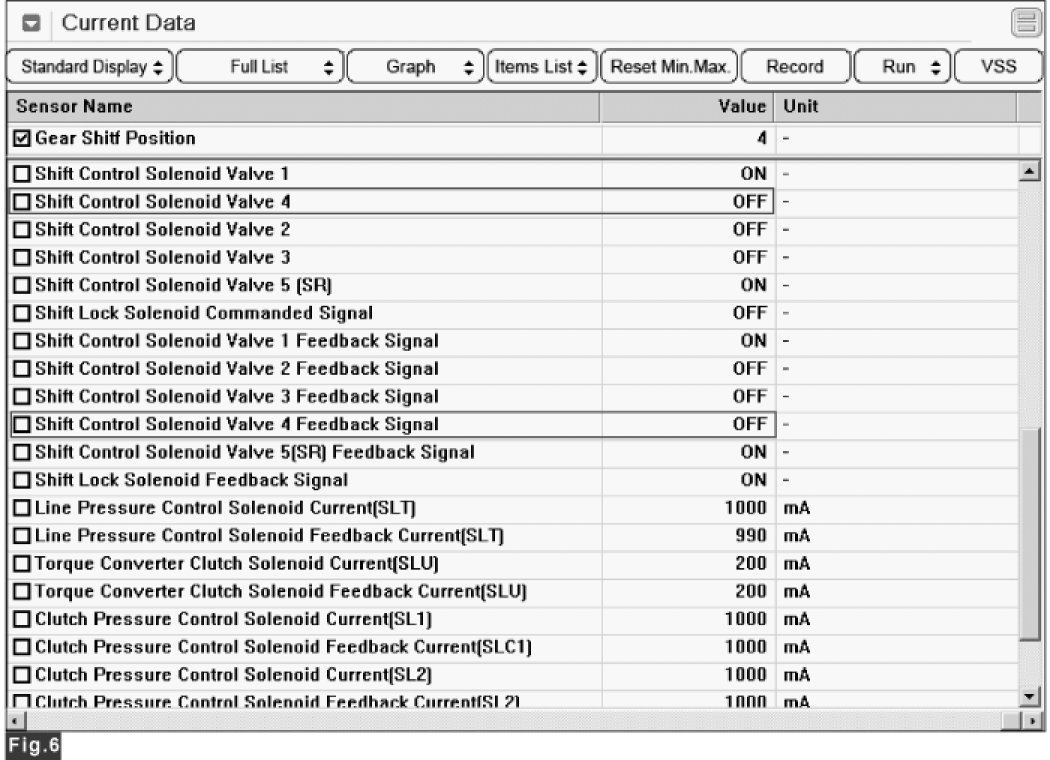

Fig 6) Sports mode -4th gear
Fig 7) Sports mode -5th gear

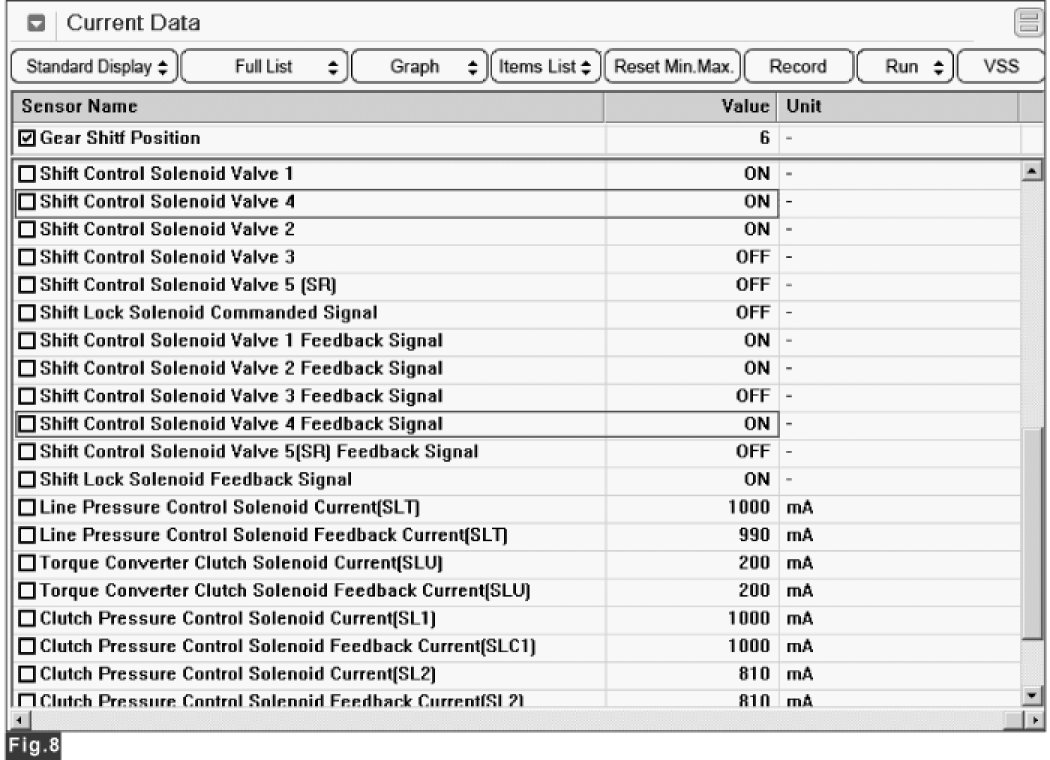

Fig 8) Sports mode -6th gear
Fig 9) Reverse
5. Is "SCSV "D"(S4) " operation normally?
