Scantool Diagnostics

Automatic Transaxle

P0977 Shift Control Solenoid Valve 'B' Circuit High (S2) - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool with data link connector (DLC)
2. Engine "ON".
3. Monitor the "Shift control solenoid valve B (S2)" parameters on the scan tool
4. Shift gear at each position.

Specification :

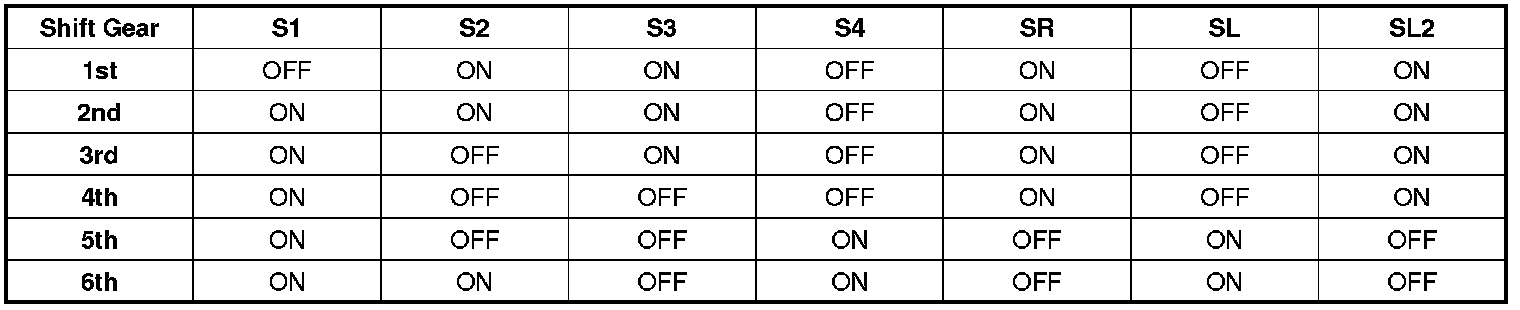

Solenoid Valve Operation Table





Normal





Engine Brake









































Fig 1) D Range-1st gear
Fig 2) D Range-2nd gear

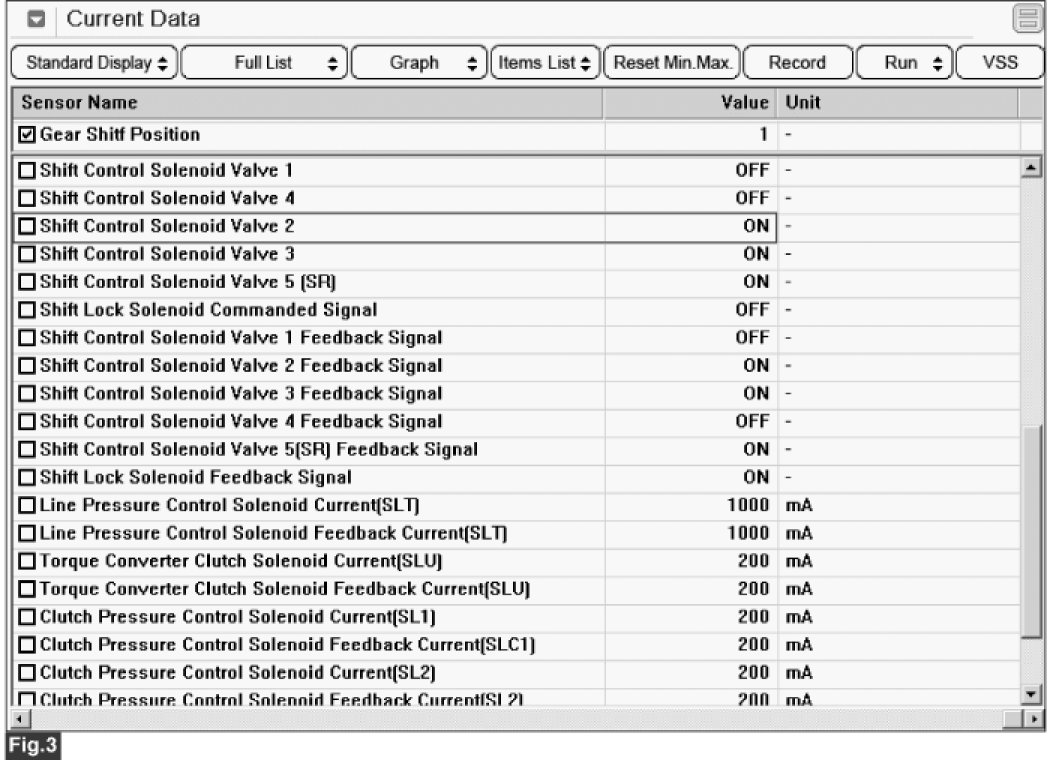

Fig 3) Sports mode -1st gear
Fig 4) Sports mode -2nd gear
Fig 5) Sports mode -3rd gear

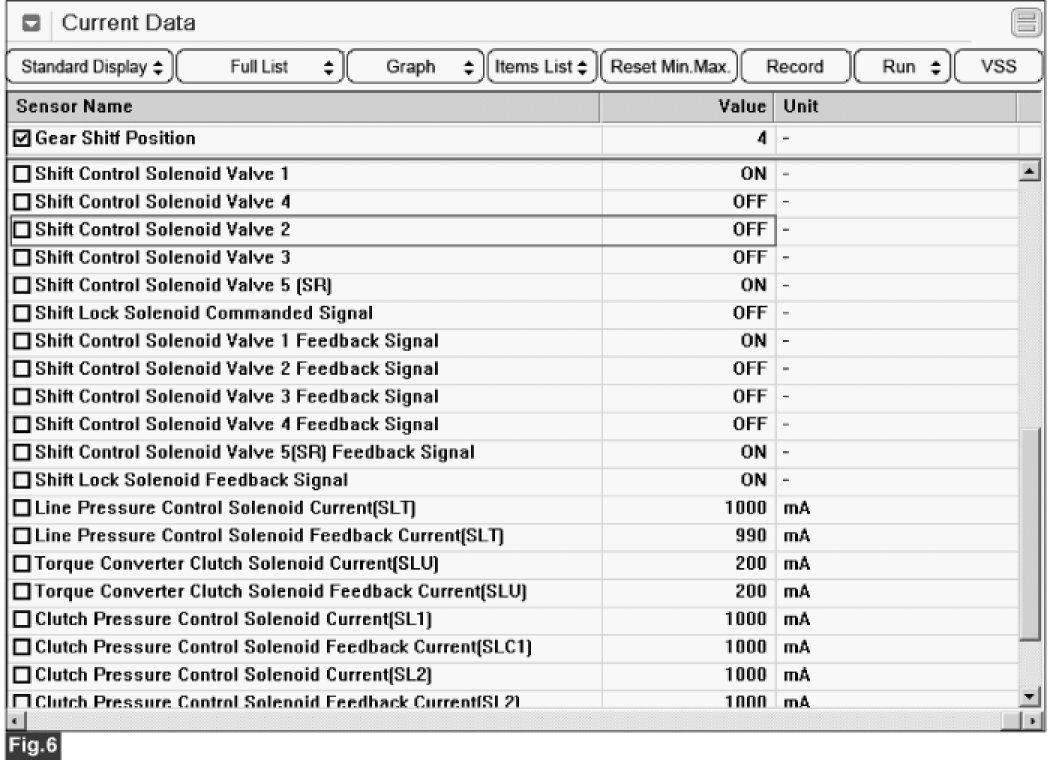

Fig 6) Sports mode -4th gear
Fig 7) Sports mode -5th gear
Fig 8) Sports mode -6th gear
Fig 9) Reverse
5. Does "Shift control solenoid valve B (S2)" follow the referance data?
