Diagram Set SD110 (Power Distribution)

SD110-1 Power Distribution (1):

SD110-2 Power Distribution (2):

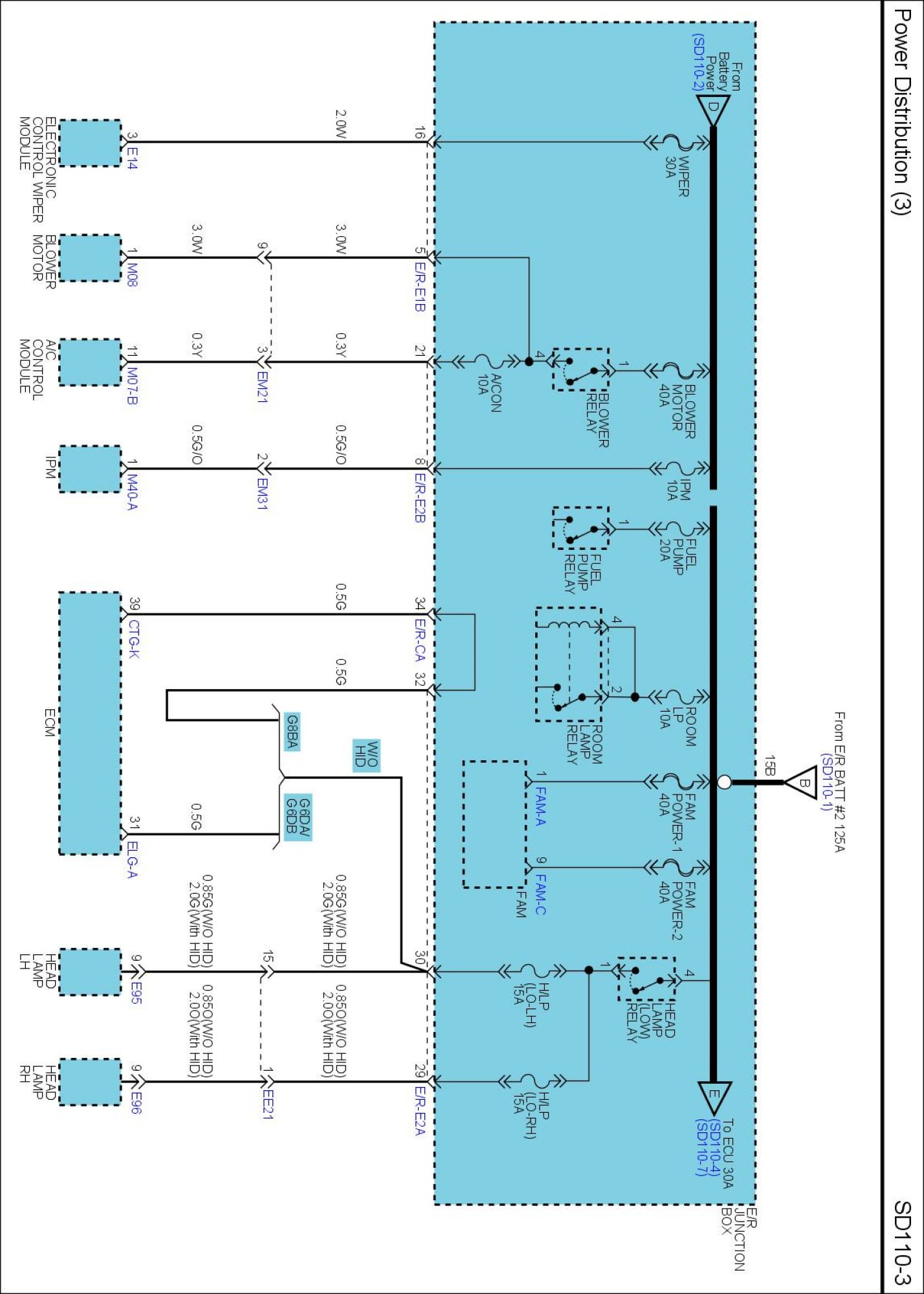

SD110-3 Power Distribution (3):

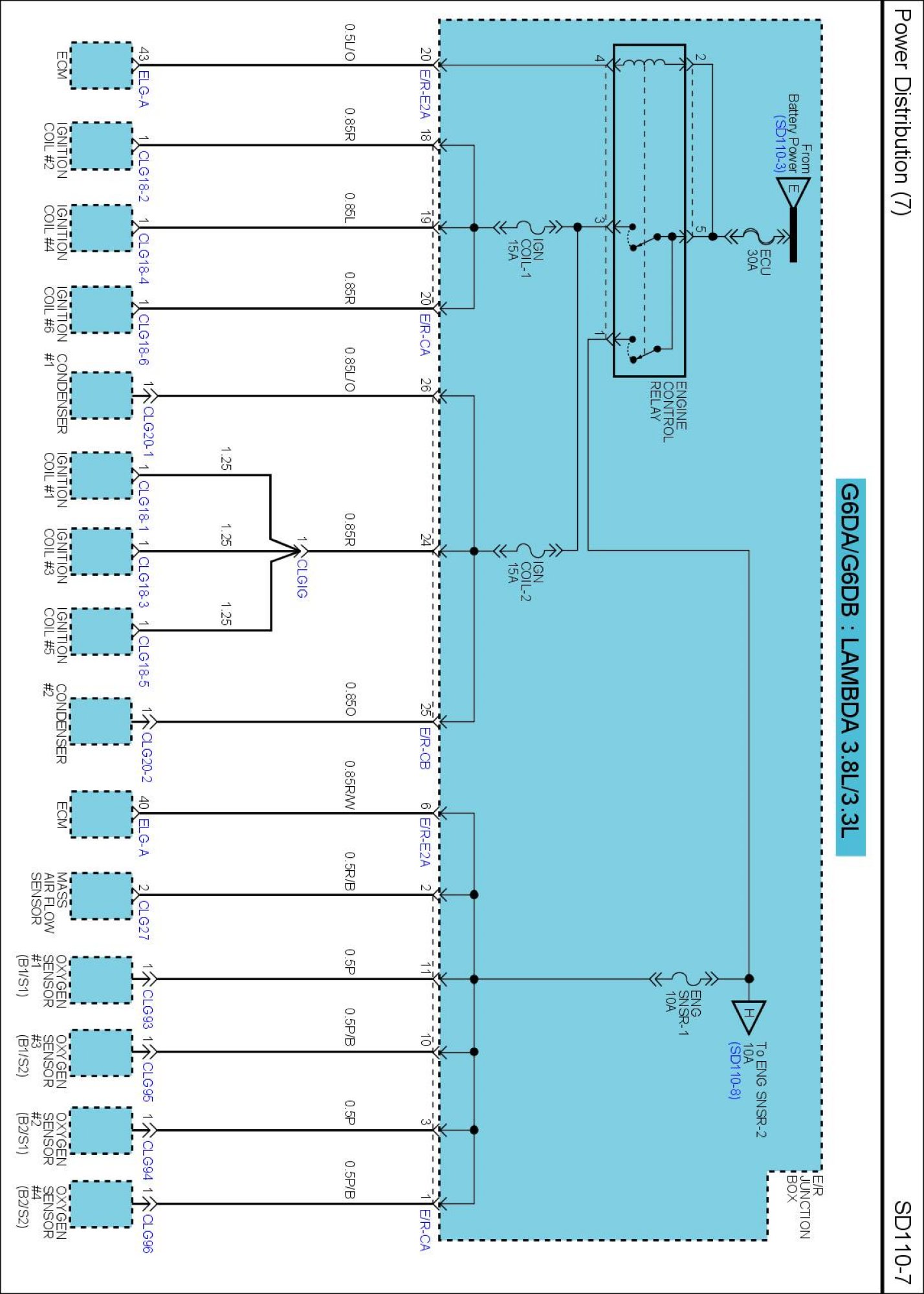

SD110-7 Power Distribution (7):

SD110-8 Power Distribution (8):

SD110-9 Power Distribution (9):

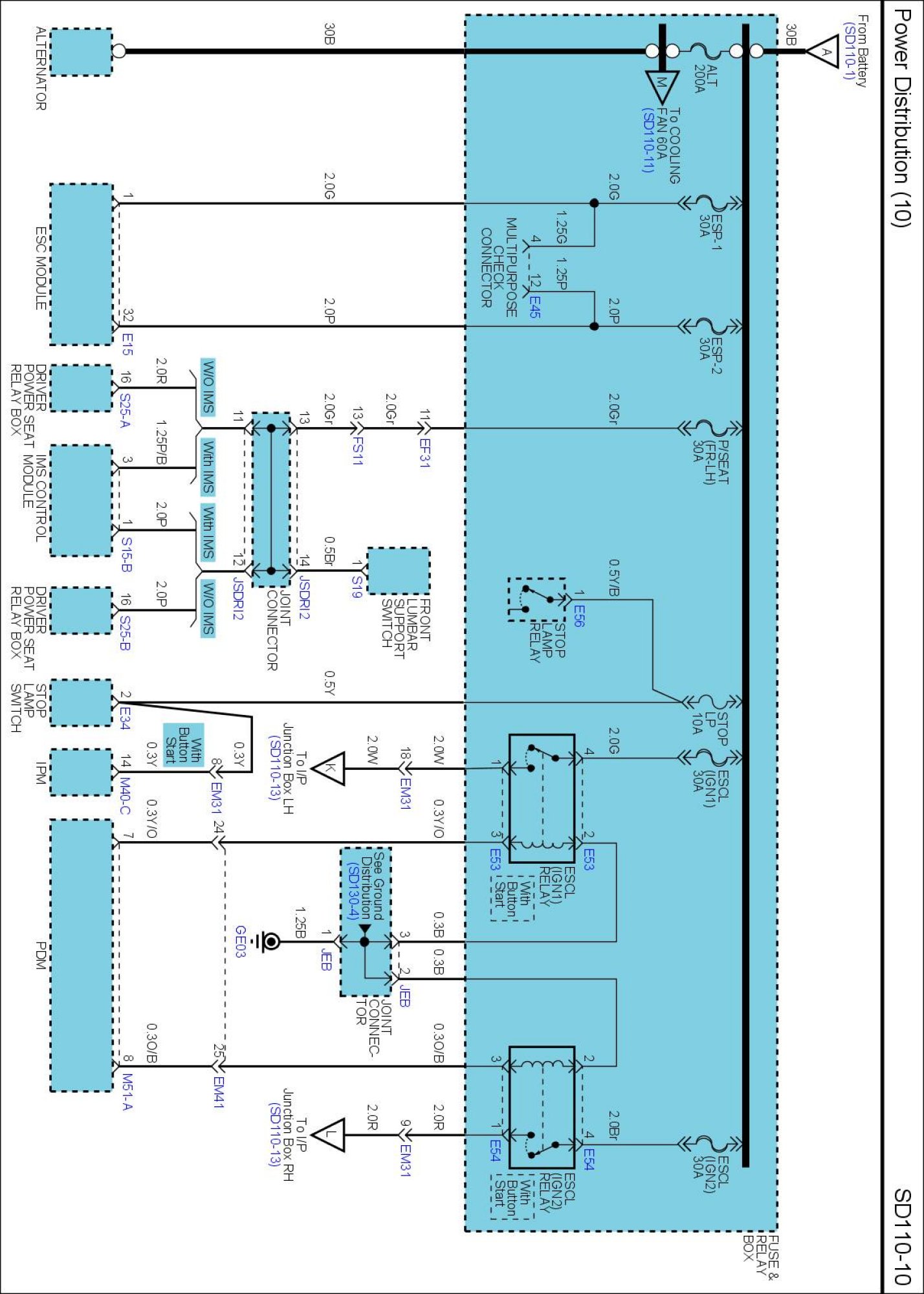

SD110-10 Power Distribution (10):

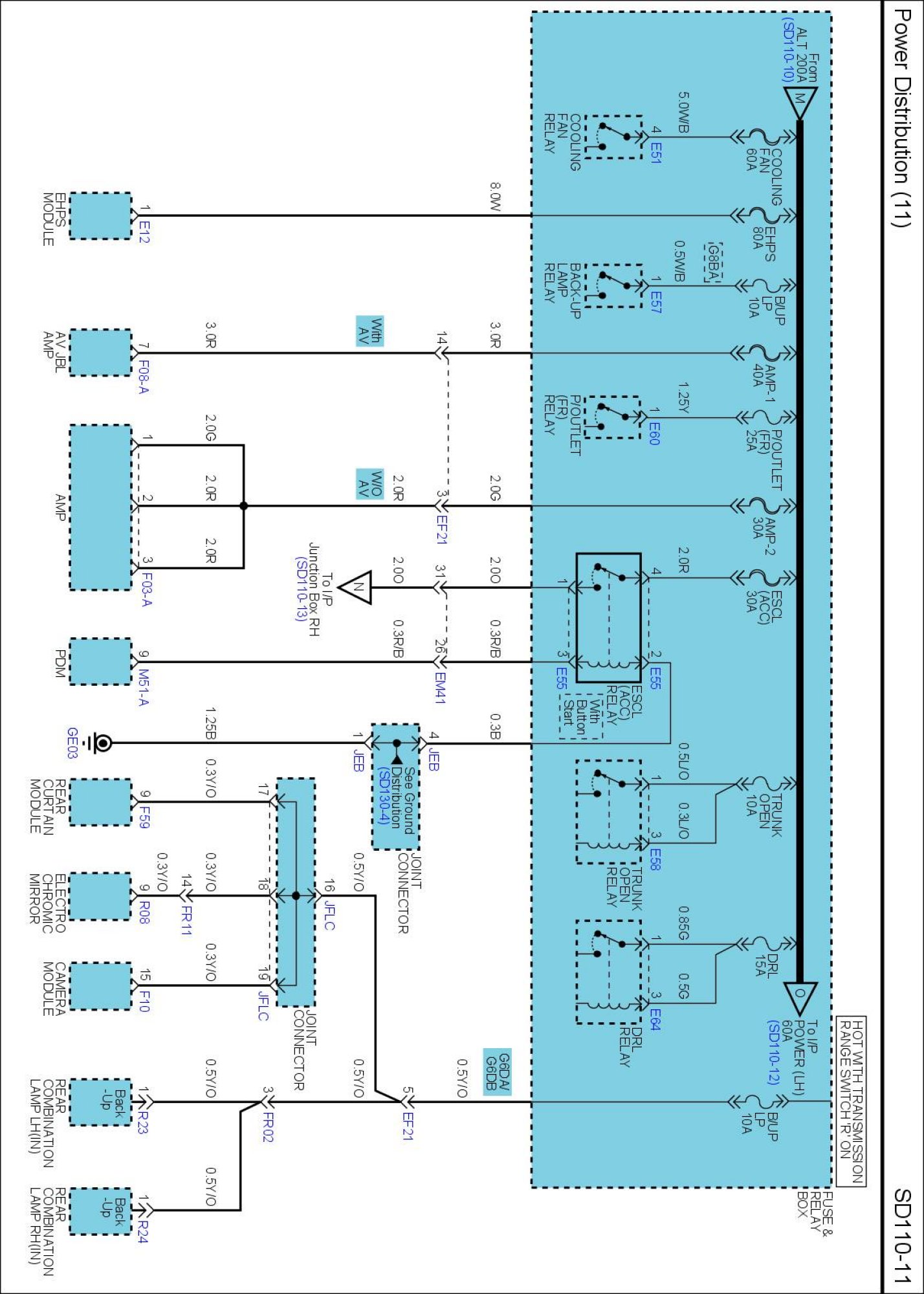

SD110-11 Power Distribution (11):

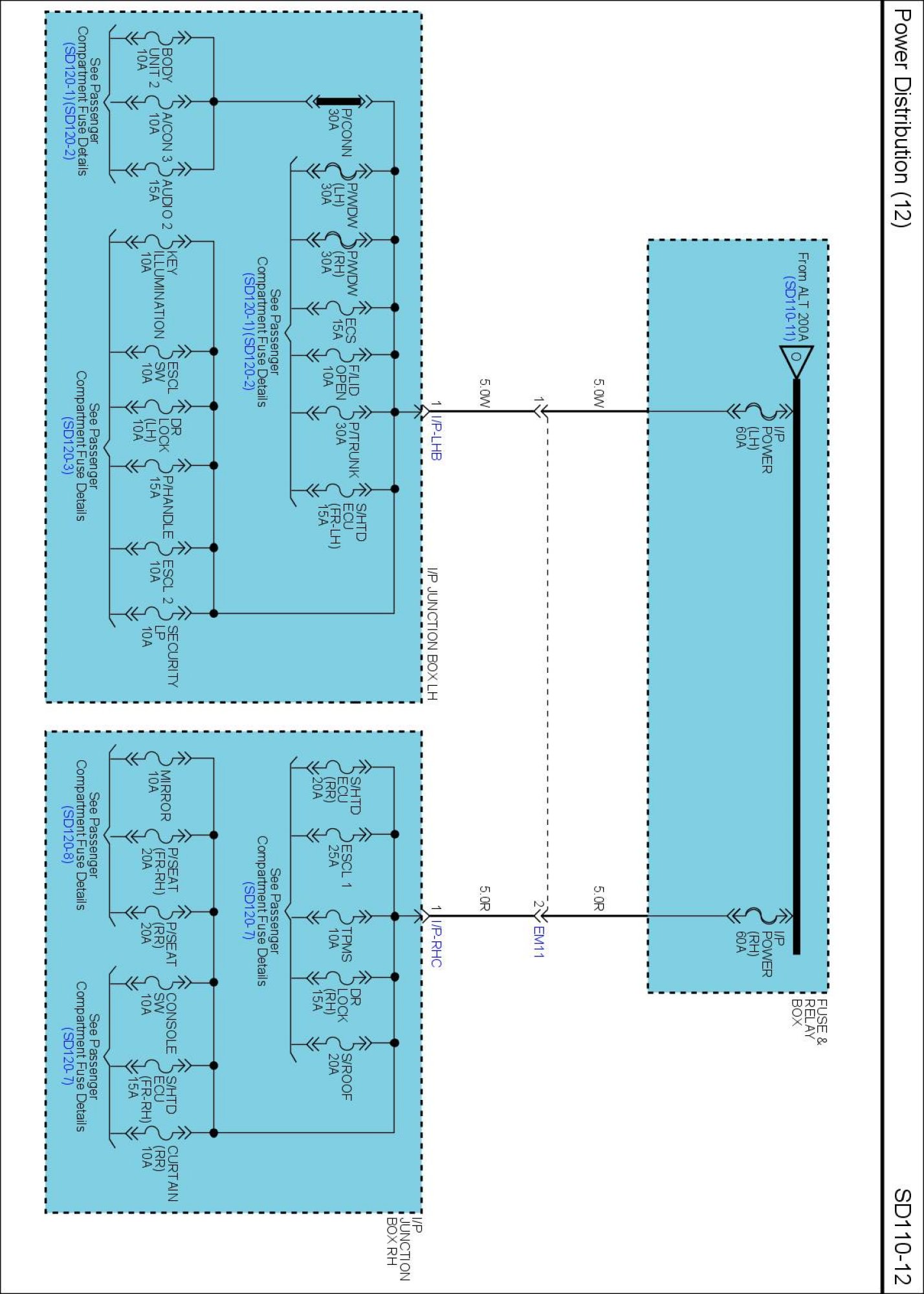

SD110-12 Power Distribution (12):

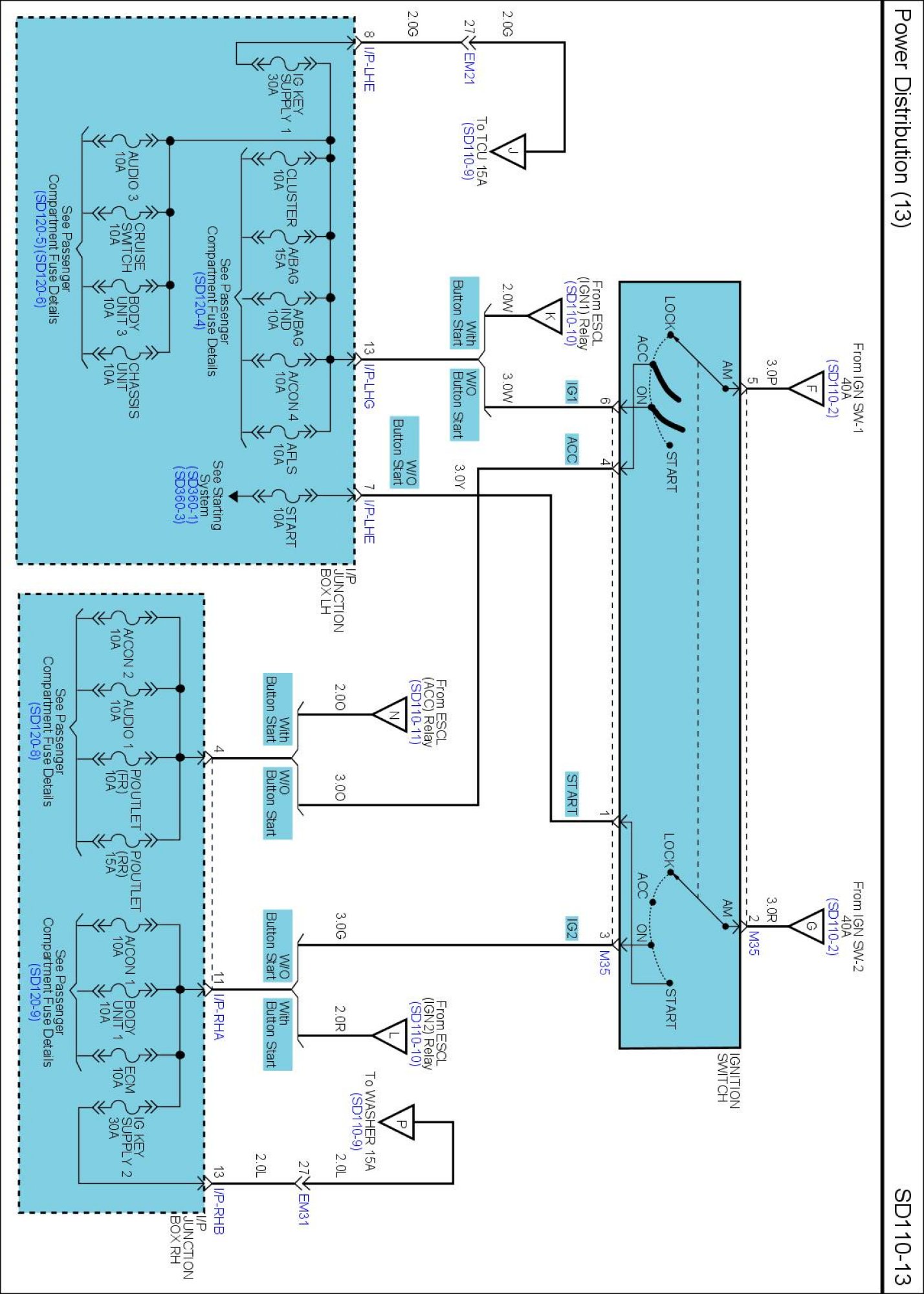

SD110-13 Power Distribution (13):
